Installation
pro.Bose.com
Installation Guide - 25
Chassis Chassis
22-24 AWG or 0.34-0.25mm
2
gauge cable
22-24 AWG or 0.34-0.25mm
2
gauge cable
2000 ft (610 m) max. 2000 ft (610 m) max.
Recommended cable lengths:
For one user interface For two user interfaces

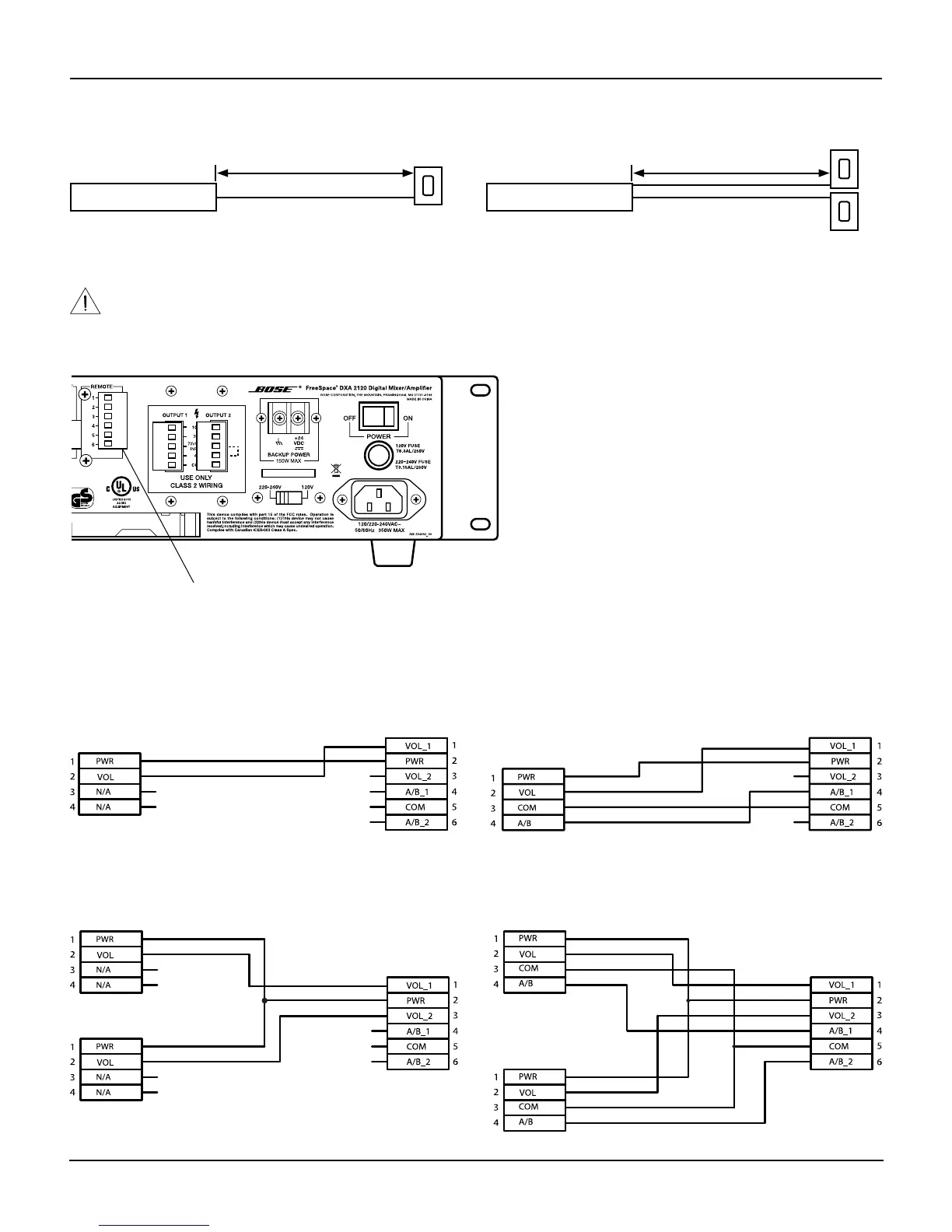

Connect the user interface wires to the appropriate terminals on the 6-pin connector and insert it into the REMOTE jack.
CAUTION: Use only 22-24 AWG or 0.34-0.25mm
2
gauge cable to connect the user interface to the mixer/amplifier.
Figure 19. Rear connection panel
User interface jack with Euroblock connector
User interface wiring:
User interface
connector
User interface
connector
6-terminal input connec-
tor mounts to REMOTE
jack on the chassis
6-terminal input connec-
tor mounts to REMOTE
jack on the chassis
One volume control user interface One volume control with A/B select user interface
Two volume control with A/B select user interfacesTwo volume control user interfaces
