34 - Installation Guide
Installation
pro.Bose.com
AUX Output Connection
The signal and any applied processing from any of the four inputs can be output using the line-level AUX OUTPUT jack. This output
can feed into another amplifier or other equipment used in the installation.

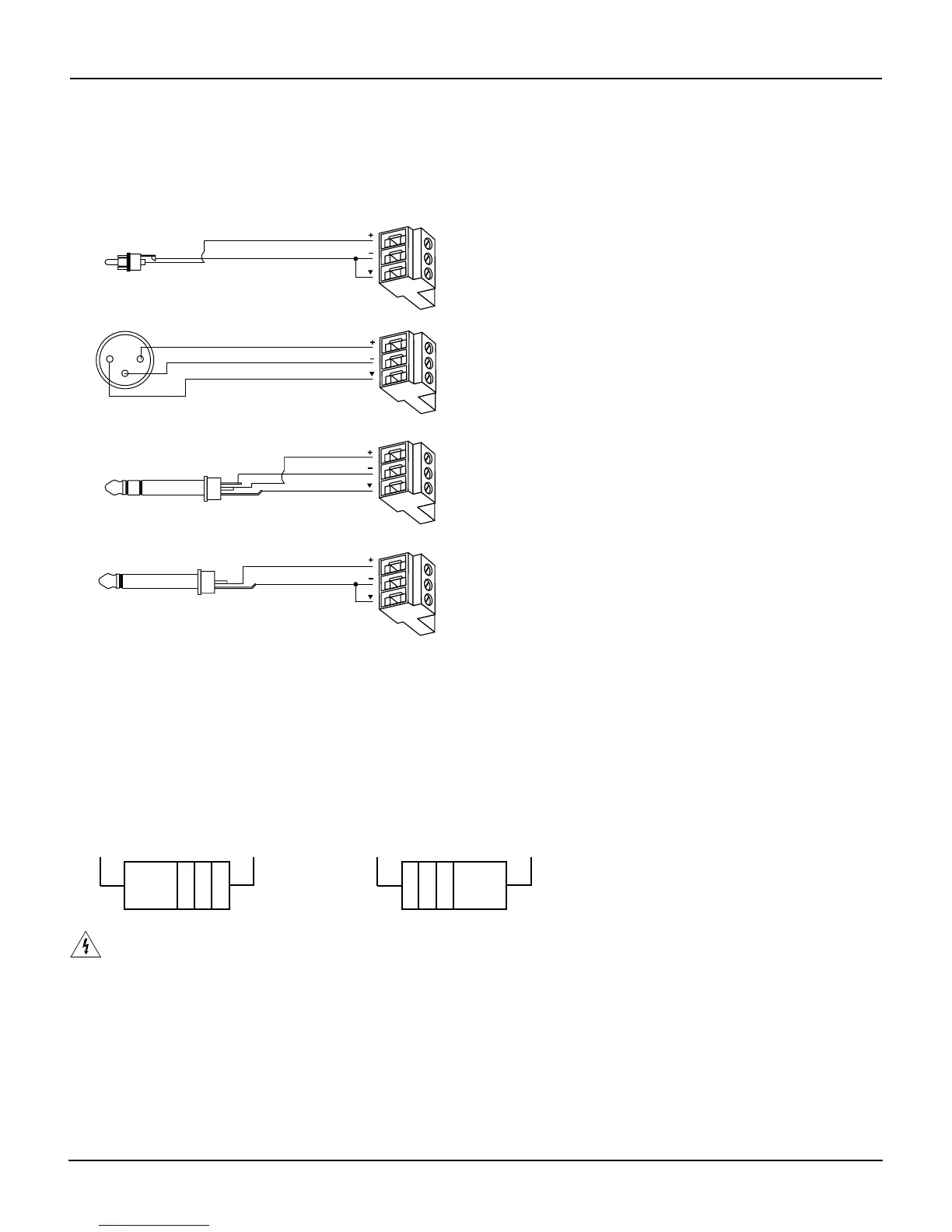

Figure 30. Cable types of AUX OUTPUT
Source Connector
AUX OUT
XLR
3
1
2
3
ed)
T R S
T
R
S
A
T
S
12
ed)
T
S
T
S
TS
AC POWER Connection
Input voltage setting (120 or 220-240V)
The rear connection panel of the mixer/amplifier chassis provides an input voltage switch for 120V or 220-240V use. An input
voltage switch is not provided on the 100V version.
Change the setting only as needed.
Check the switch setting to be sure it is appropriate for the local power standard.
220-240V 220-240V120V 120V
Set for 120V Set for 220-240V
WARNING: Be sure to disconnect the mixer/amplifier chassis from AC power before changing the input voltage setting on the
rear connection panel.
Fuse Type
Be sure the proper supplied fuse is inserted in the fuse box. Replace the fuse as needed with the proper type. 120V units require a
T6.3AL/250V fuse. 220V-240V units require a T3.15AL/250V fuse.
AC POWER connection
Insert the proper power cord for the voltage used in your region.
DC POWER Connection
This unit allows for +24V DC battery backup power in case there is a mains power failure. There will be a noticeable reduction in
output due to the limited power of this backup power source.
