Installation
pro.Bose.com
Installation Guide - 33
Follow the diagram below to insert the 5-terminal connector into the output jacks on the back of the mixer/amplifier.
Notice the proper wiring for 4 ohm, 70 volt, or 100 volt uses. Both 70V and 100V wiring require the use of a jumper cable, as shown.
Note: Use 12 AWG (4 mm
2
) to 20 AWG (0.5 mm
2
) gauge wire for the jumper.

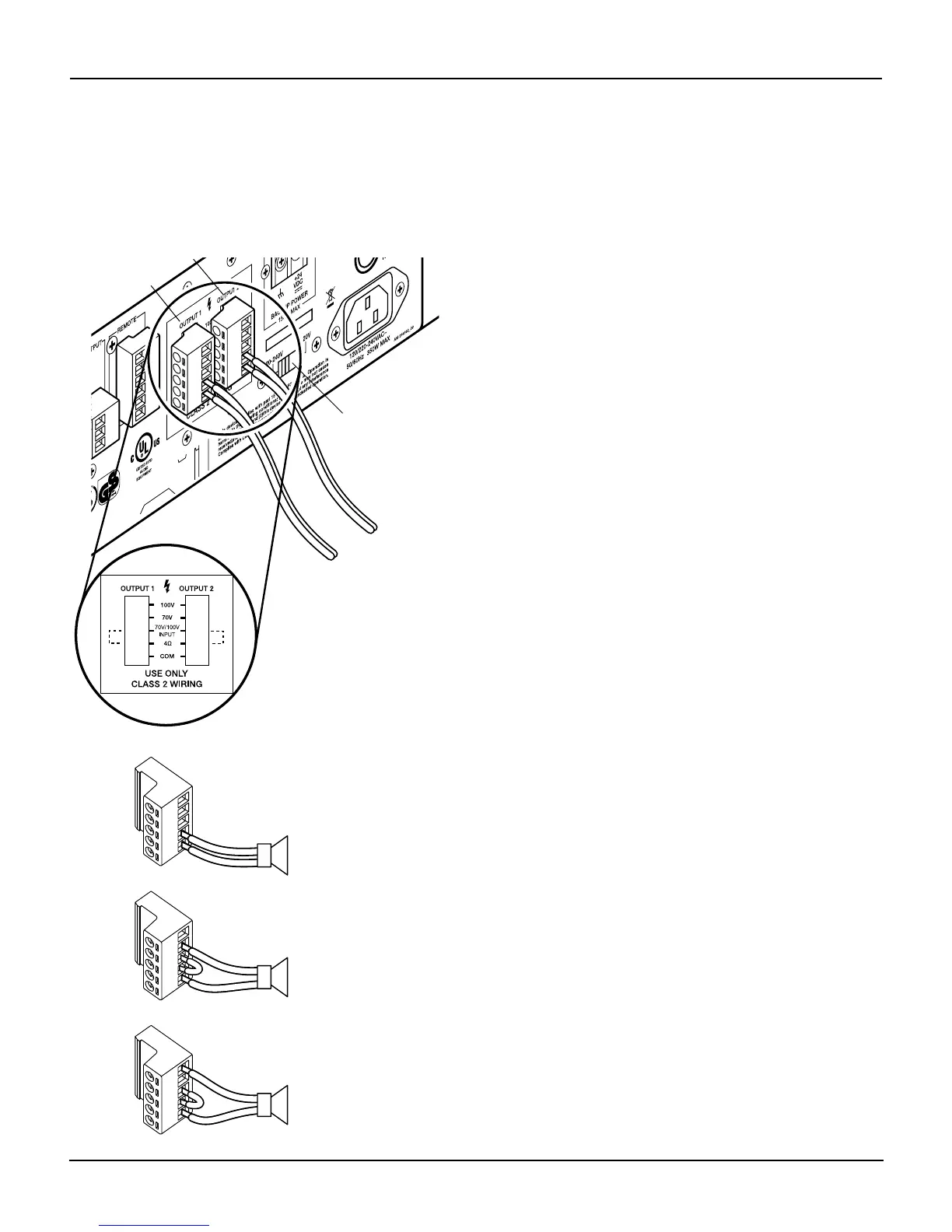

Figure 29. 5-terminal connector placement in rear connection panel
Rear connection panel
OUTPUT 1
Input voltage switch
OUTPUT 2
OUTPUT 1 and OUTPUT 2
4 Ohm wiring
70 Volt wiring
100 Volt wiring
