38 - Installation Guide
Installation
pro.Bose.com

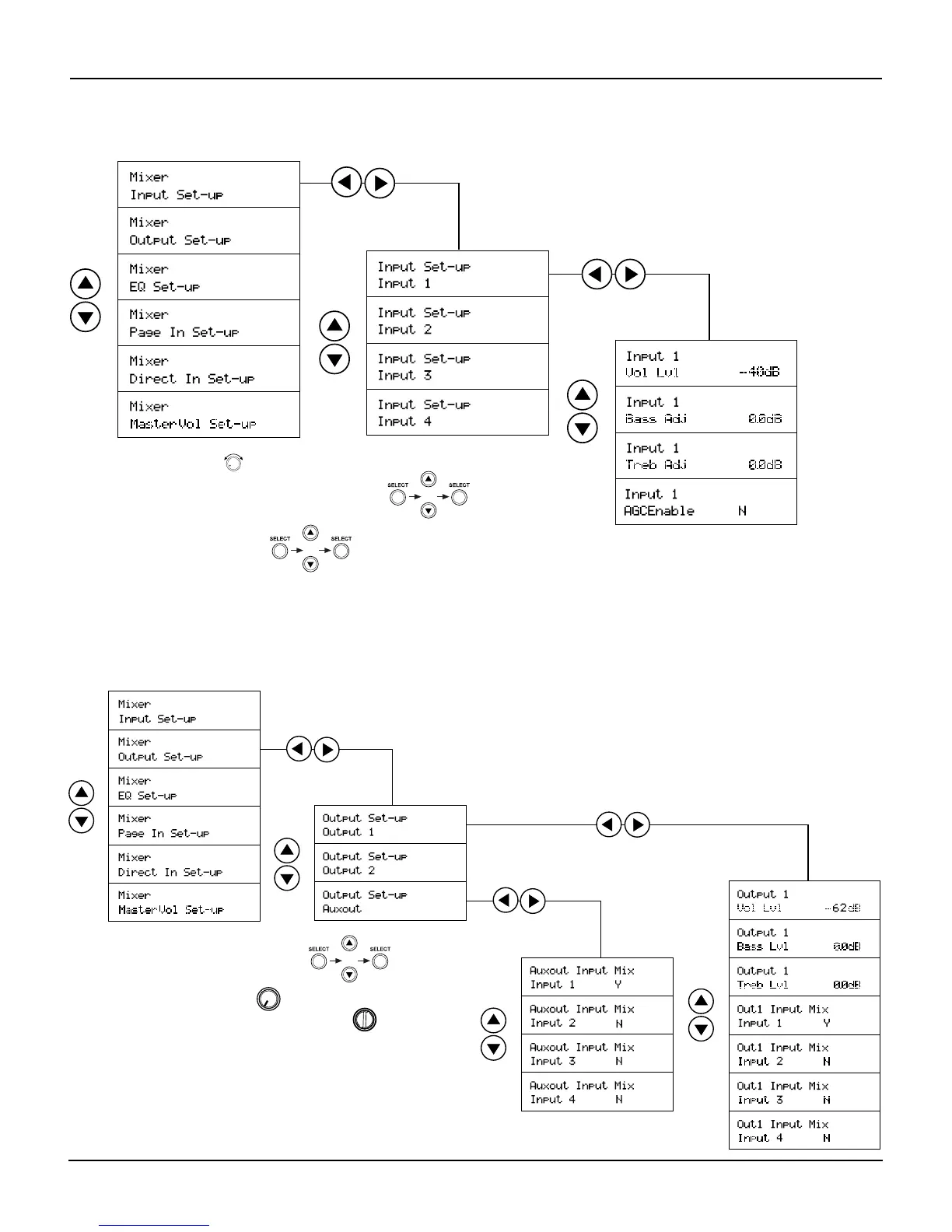

Mixer Input Set-up
Mixer Output Set-up
B
C
Select each Input that has a source connected (1, 2, 3, & 4).
Select each Output that has a source connected (1, 2, or Auxout).
• For Input Vol Lvl
• For Input Bass Adj and Input Treb Adj
Adjust the value +/- 6 dB increments of .5 dB
• For AGCEnable
Choose N (no) or Y (yes)
Note: AGC defaults to N. AGC
is recommended for use with
low-level sources (i.e. microphone
with low sensitivity).
• For Input Mix
Choose N (no) or Y (yes)
• For Output Vol Lvl
• For Output Bass Lvl and Input Treb Lvl
Adjust the value to +/- 6 dB increments of .5 dB
