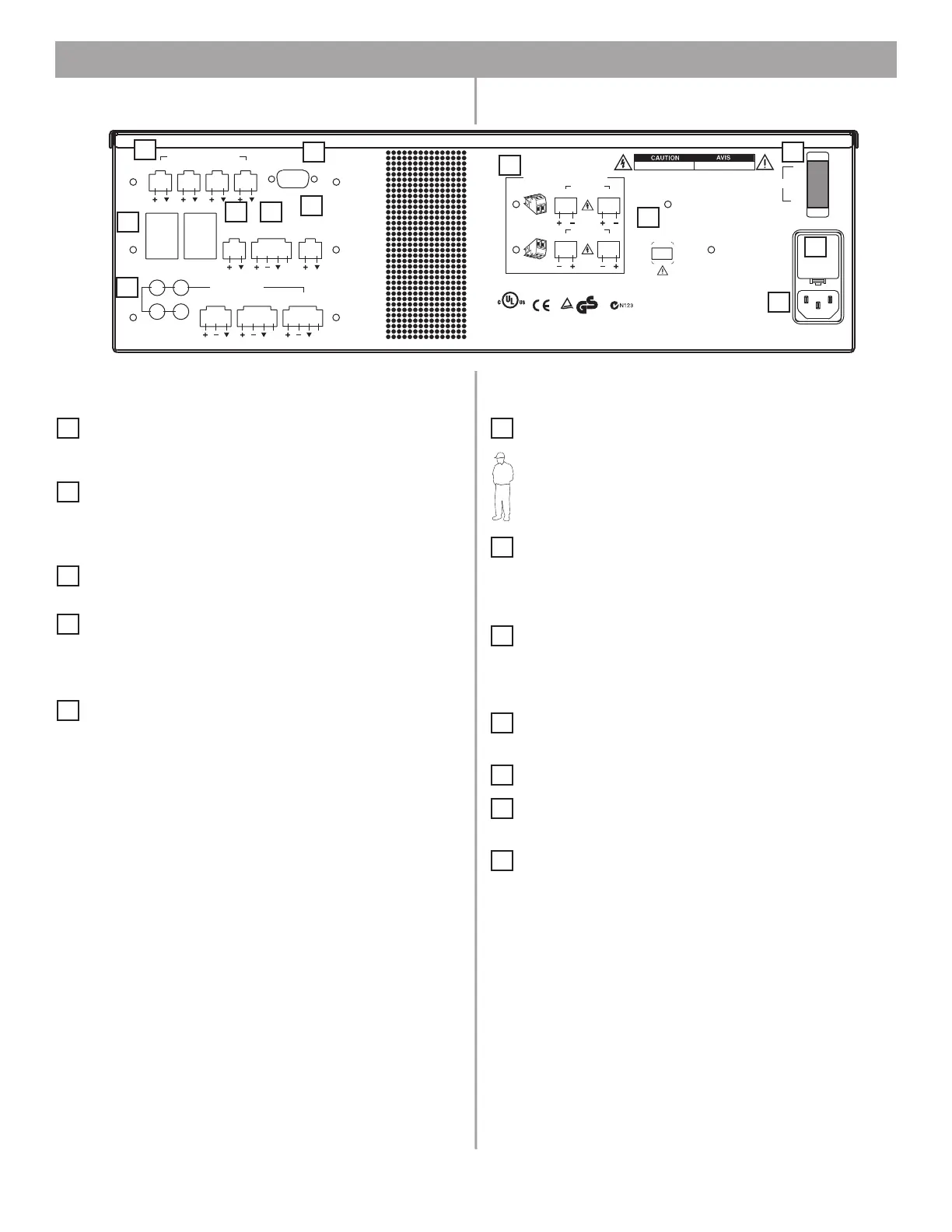

3.2 Rear panel
3.2.1 System controls
SENSE MICROPHONES – Input connectors for sensing
microphones used with the Auto Volume feature. See the Auto
Volume Kit.
RS-232 – Standard RS-232 communications port. Provides
a communications interface for a PC running FreeSpace
®
system
Installer™ software. The Installer™ software is used to configure
the E-4 hardware.
WALL PLATE CONNECTIONS – Input connectors for stan-
dard and Auto Volume user interfaces
REMOTE ON/OFF – An input connector for a remote
STANDBY switch
3.2.2 Audio source inputs
LINE 1/LINE 2 – Unbalanced audio inputs
AUX MIC/LINE 3 – Balanced audio input with phantom power
PAGE/MIC/LINE 4 – Balanced audio input with phantom power
DIRECT IN/CONTROL – Balanced (DSP bypass at max. power)
3.2.3 Amplifier outputs
ZONE OUT 1/2/3/4 – Speaker connections for four zones
Installer’s Note: Please notice the polarity markings when
wiring speaker cables to the ZONE OUT connectors.
CAUTION: DO NOT ground the minus (–) terminals.
ZONE 4 LINE OUT – A line-level output that duplicates the
program material from LINE 4. May be used to feed another
amplifier installed for a large zone. The 12V control output is used
to connect to Bose
®
amplifier sequence inputs.
MUSIC ON HOLD/PBX OUT – An audio output used to
provide music input to a PBX system
3.2.4 AC power
OUTPUT VOLTAGE – Sets the ZONE OUT lines to 70/100V.
Set fuse box to 100/120V for 70V; 220/240V for 100V
POWER ON/OFF – Switches AC power on or off
Fuse box – Configures the E-4 for 100/120V or 220/240V.
Set OUTPUT VOLTAGE to 70V for 100/120V; 100V for 220/240V.
AC line cord jack – AC line voltage input
