Bose FreeSpace IZA 2120-HZ Service Manual

12
Product Information
FreeSpace
®
ZA 2120-HZ
A
C Current Draw and Thermal Dissipation Information
Test Signal & Power Level
Load Configuration
(Both IZA channels driven)
Total Audio
Output, W
120VAC 60Hz.
Line Current, A
230VAC 50Hz.
Line Current, A
Thermal Dissipation, Max
Watts BTU/hr. kCal/hr.
Power On, Idling
0 0.20 0.15 34 116 29
1/8th Rated Power
IEC65 Bandlimited Pink Noise
70V / Ch 30 0.57 0.31 71 242 61
6 dB Crest Factor
DS 16 EQ Enabled
100V / Ch 30 0.66 0.35 81 276 71
1/3rd Rated Power
IEC65 Bandlimited Pink Noise
70V / Ch 80 1.13 0.58 133 454 114
6 dB Crest Factor
DS 16 EQ Enabled
100V / Ch 80 1.25 0.65 150 512 129

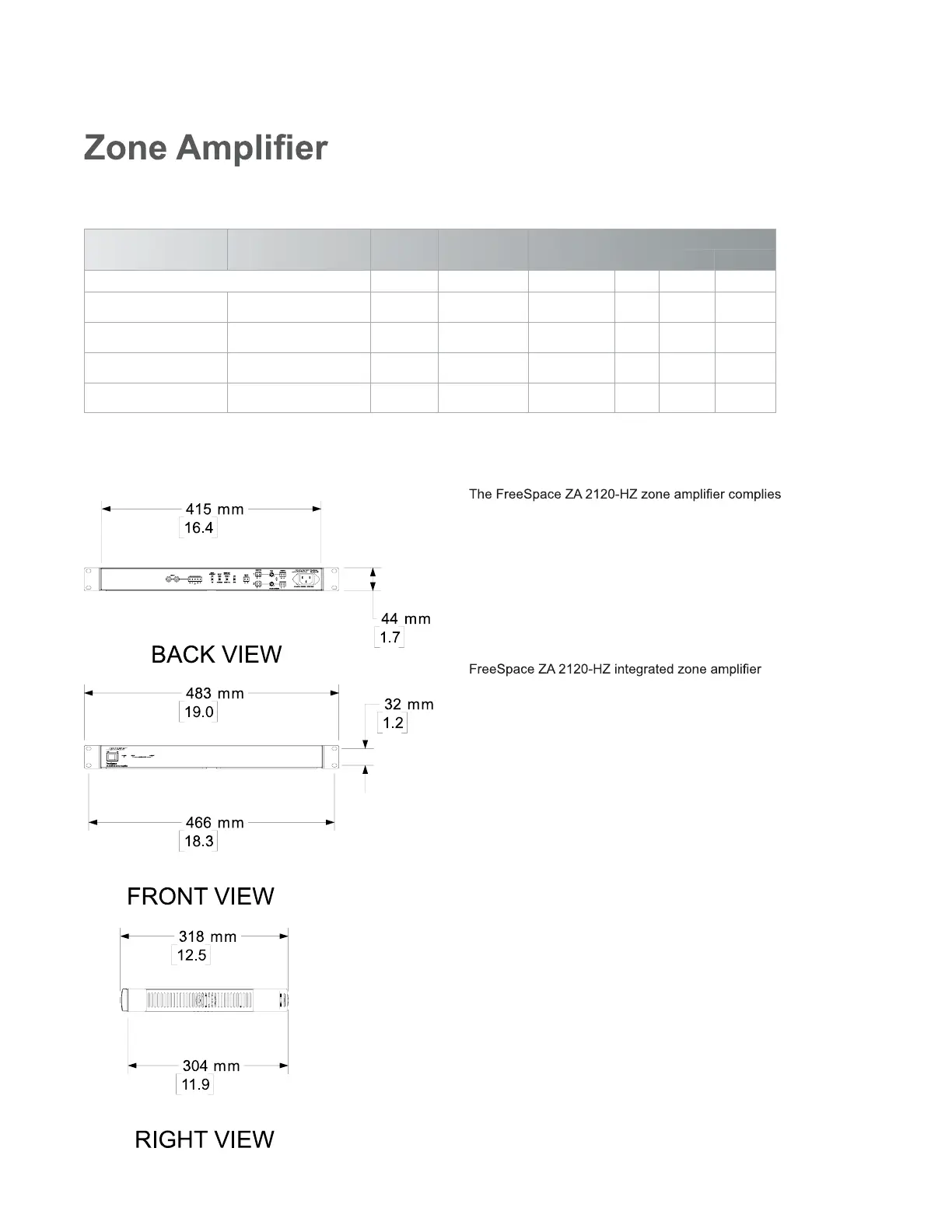

Mechanical Diagrams
Safety and Regulatory Compliance
with CE requirements and is UL listed according to
UL60065 (7th edition) and CAN/CSA C22.2 No. 60065-
03; CB approved, according to IEC60065 (7th edition),
including group and national differences. This model
also complies with FCC Part 15B Class A (2003),
EN55103-1 (1997), EN55103-2 (1996), and CISPR13
(2003) requirements.
Product Codes
120V – US 722196-1410
230V – EU 722196-2410
100V – Japan 722196-3410
230V – UK 722196-4410
240V – AU 722196-5410
Accessories
Volume control user interface (PC041966)

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
