Bose FreeSpace IZA 2120-HZ Service Manual

8
Product Information
FreeSpace
®
IZA 2120-HZ
A
C Current Draw and Thermal Dissipation Information
IZA 2120-HZ, AC Current Draw and Thermal Dissipation
Test Signal & Power Level
Load Configuration
(Both IZA channels driven)
Total Audio
Output, W
120VAC 60Hz.
Line Current, A
230VAC 50Hz.
Line Current, A
Thermal Dissipation, Max
Watts BTU/hr. kCal/hr.
Power On, Idling
0 0.27 0.17 40 136 34
1/8th Rated Power
IEC65 Bandlimited Pink Noise
70V / Ch 30 0.55 0.30 69 235 59
6 dB Crest Factor
DS 16 EQ Enabled
100V / Ch 30 0.61 0.33 76 259 65
1/3rd Rated Power
IEC65 Bandlimited Pink Noise
70V / Ch 80 1.15 0.60 138 471 119
6 dB Crest Factor
DS 16 EQ Enabled
100V / Ch 80 1.15 0.64 147 502 127

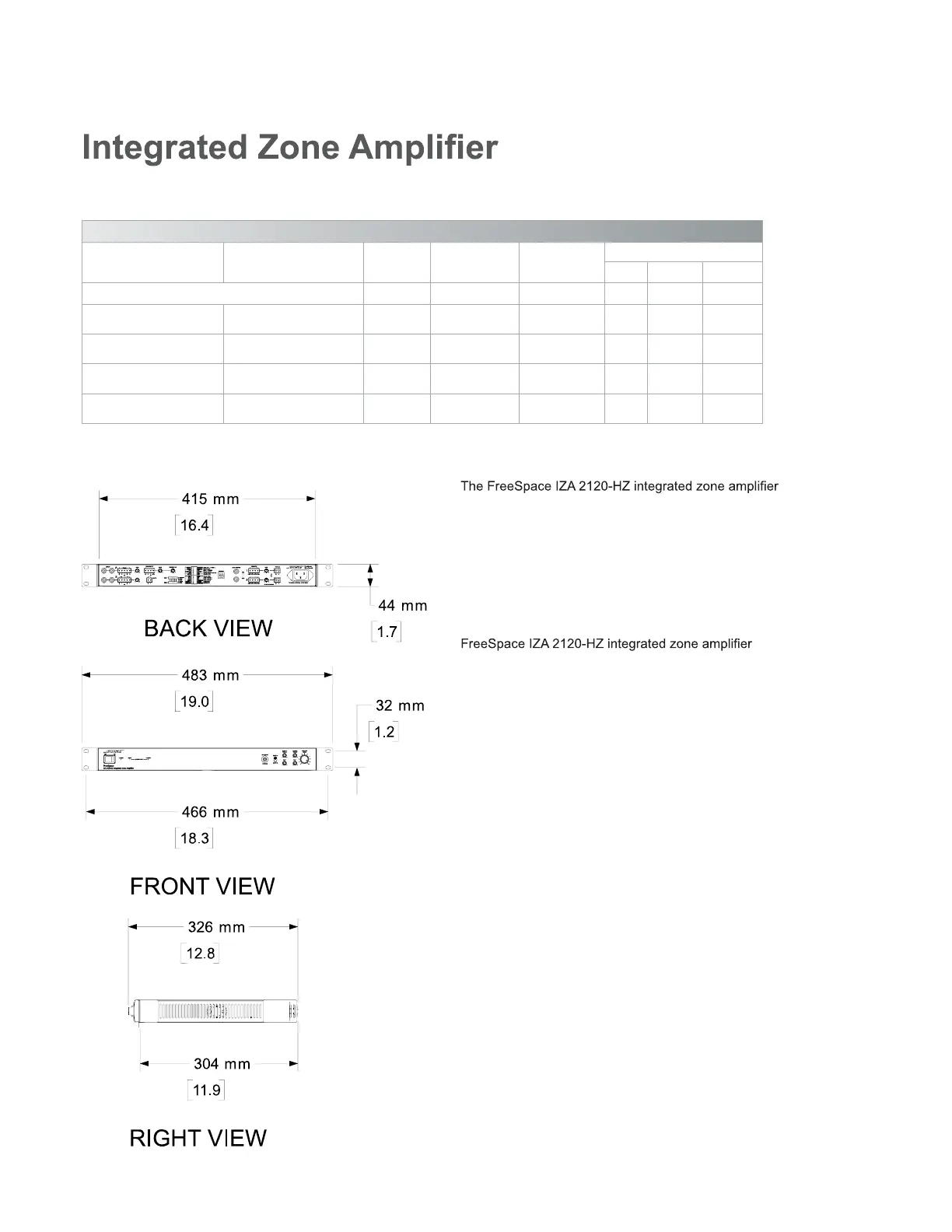

Mechanical Diagrams
Safety and Regulatory Compliance
complies with CE requirements and is UL listed according to
UL60065 (7th edition) and CAN/CSA C22.2 No. 60065-03;
CB approved, according to IEC60065 (7th edition), including
group and national differences. This model also complies with
FCC Part 15B Class A (2003), EN55103-1 (1997), EN55103-2
(1996), and CISPR13 (2003) requirements.
Product Codes
120V – US 719782-1410
230V – EU 719782-2410
100V – Japan 719782-3410
230V – UK 719782-4410
240V – AU 719782-5410
Accessories
Volume control user interface (PC041966)
Volume control with A/B switch user interface (PC041967)

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
