Bose PROFLIGHT User Manual

50
|
ENGLISH
INSTALLATION
MOUNT THE AIRCRAFT PANEL CONNECTOR
The aircraft panel connector is part of the optional 6-pin wiring harness assembly.
Visit www.Bose.com or www.global.Bose.com for information or purchase.
WARNING: The aircraft panel connector must be mounted by a technician who is
qualified to perform this type of avionics installation for the aircraft you
are using.

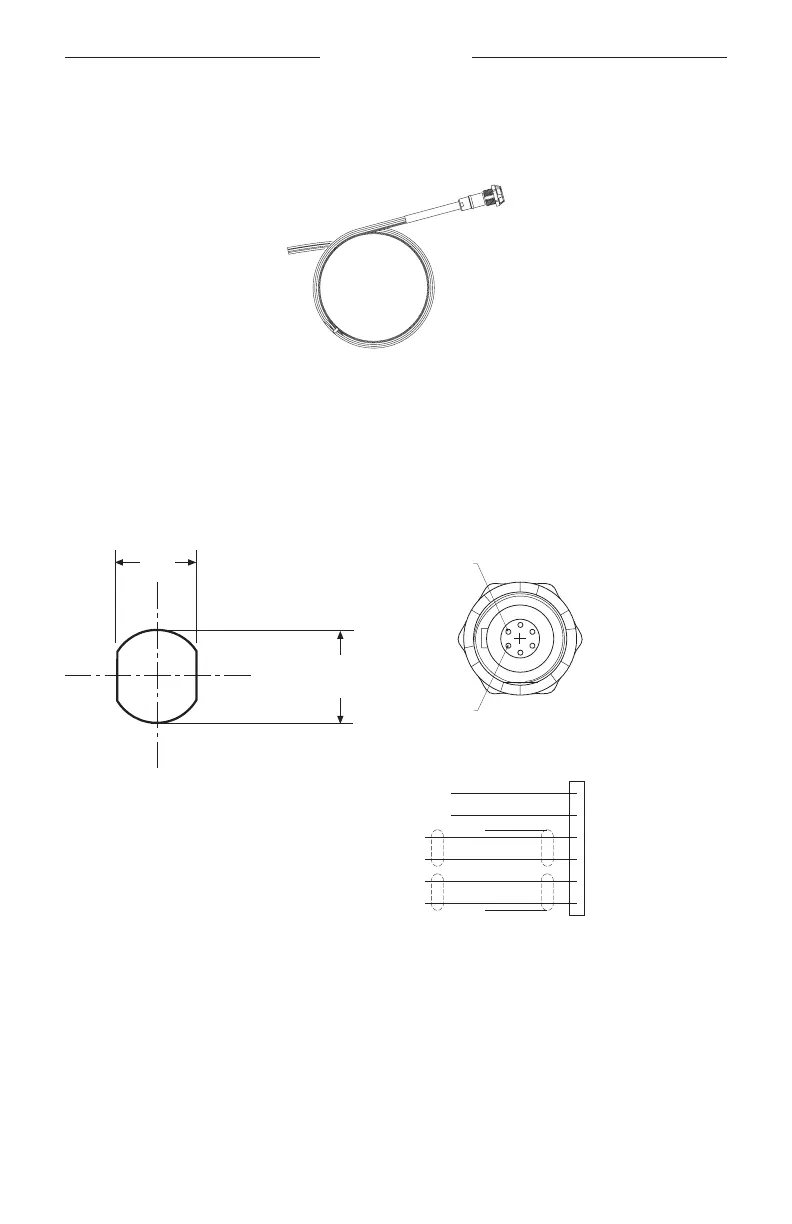

Mount the connector into a cutout, using the diagrams below as a guide.
12.5mm
.49"
.55"
14.0m
m
RED
•
1 V+IN
BLK
•
2 GND
WHT
•
3 COMM L
BLU
•
4 COMM
R
WHT
•
5MIC HI
WH/BLU
•
6MIC LO
BLK/WH
BLK/WH
Pin 6
Pin 1
Aircraft Interface Schematic
Receptacle - Pinout (front view)

Bose PROFLIGHT Specifications

General

Type	Aviation Headset
Bluetooth	Yes
Connector	5-Pin XLR, 6-Pin LEMO
Noise Cancellation	Active Noise Cancellation
Compatibility	Aircraft communication systems
Microphone	Electret
Battery Life	Up to 45 hours
