Bose S1 PRO+ Service Manual

37
DISASSEMBLY PROCEDURE
10. 3 Antenna Removal
10.1 Perform procedure 3.
10.2 Remove the 11 screws that secure the
Top Cover. See Figure 29.
10.3 Remove the Cabinet. The Bluetooth An-
tenna is on the Top Cover. See Figure 30.
10.4 2 Wireless Transmitter Antenna location
on the I/O Frame. See Figure 31.
Part number: 869515-0010 & 869515-0020
Note:
• Use a spudger / screwdriver to separate the
green adhesive.
• RTV may be used if the green adhesive is
not available for reassembly.

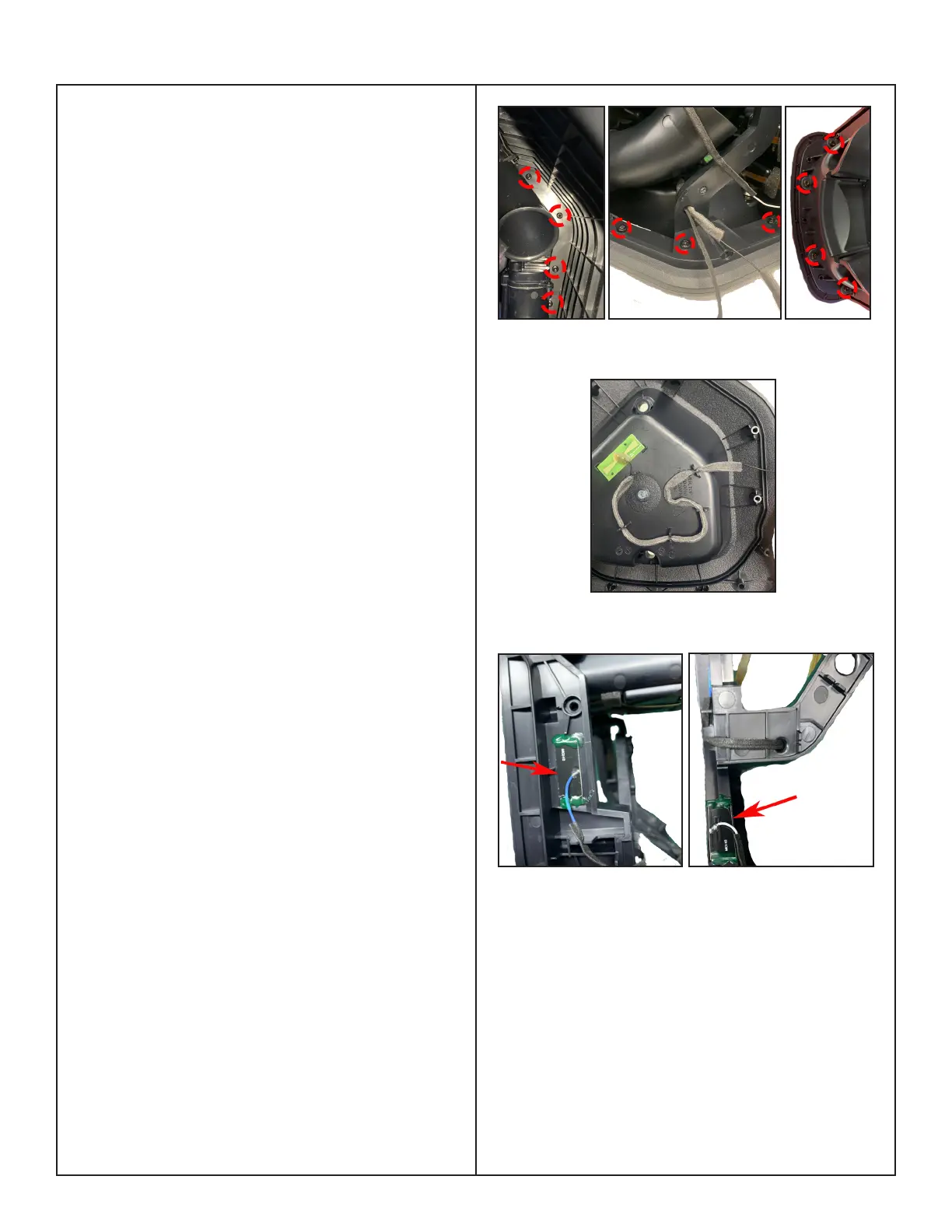

Figure 30. Bluetooth Antenna Removal
Figure 31. The Location for 2 Transmitter
Antenna
Figure 29. 11 screw Location

Bose S1 PRO+ Specifications

General

Type	Handheld Public Address (PA) system
Handle(s)	Yes
Product color	Black
Housing material	Aluminium, Polypropylene (PP)
Storage temperature (T-T)	-20 - 49 °C
Operating temperature (T-T)	0 - 45 °C
Bluetooth range	9 m
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
6.35 mm (1⁄4-inch) input	2
Charging time	5 h
AC input voltage	100 - 240 V
Battery capacity	5500 mAh
Power source type	AC, Battery
AC input frequency	50/60 Hz
Battery life (max)	11 h
Number of mixer channels	3 channels
Speaker type	2-way
Number of speakers	-
Frequency range	- Hz
RMS rated power	- W

Weight and Dimensions

Depth	279.8 mm
Width	240 mm
Height	332.6 mm
Weight	6500 g
