Bose S1 PRO+ Service Manual

36

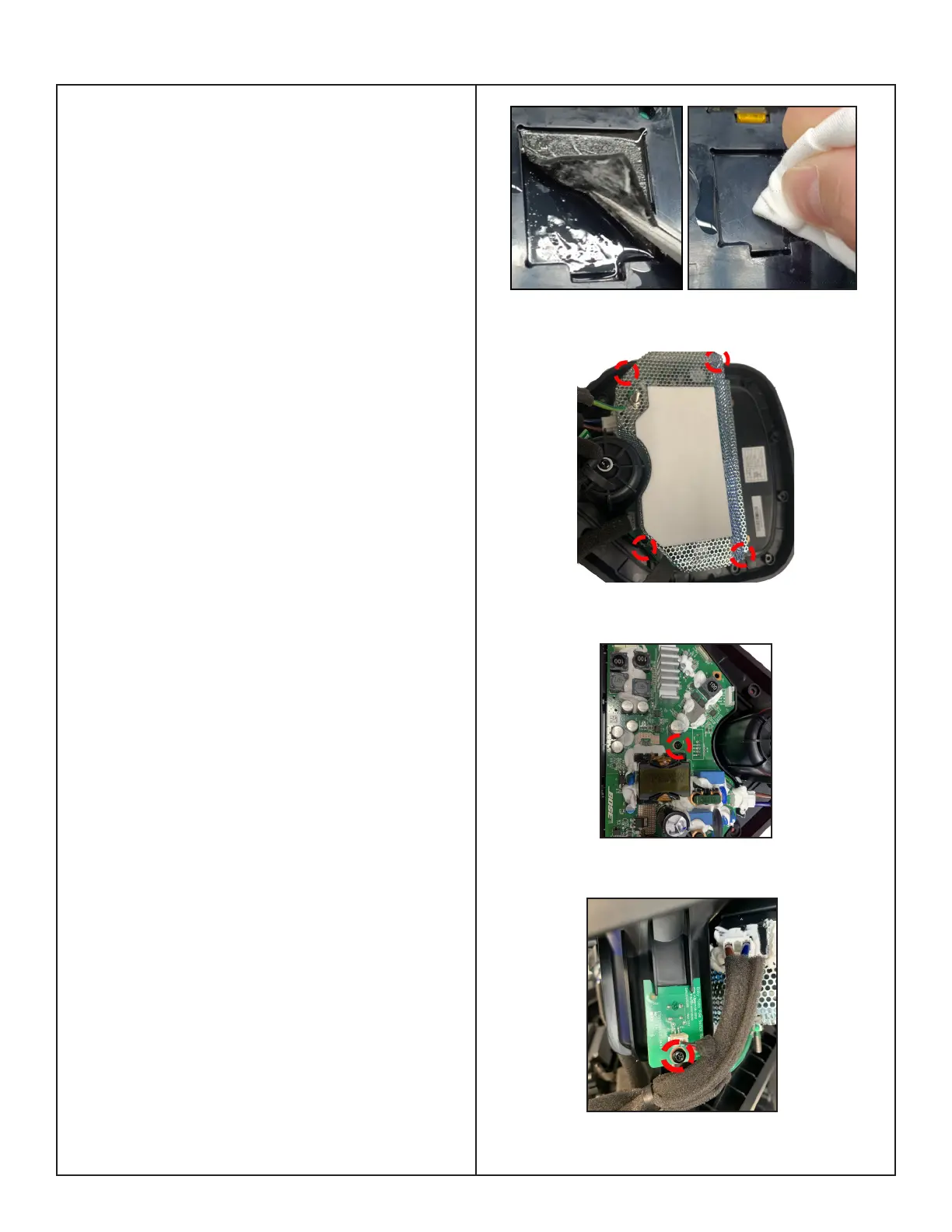

DISASSEMBLY PROCEDURE
7.6 Remove the Gasket. See Figure 25 (left).
7.7 Clean the Alcohol. See Figure 25 (right).
Re-assembly Note:
Place the new OLED and OLED Gasket to
ensure proper adhesion during reassembly.
OLED Part Number : 868546-0010
OLED Gasket PN: 868705-0010
8. Power Board Removal
8.1 Perform procedure 2.
8.2 Remove the 4 screws that secure the
Shield cover of Power board as indicated in
Figure 26.
Note: When installing the Shield cover, RTV
need to be used to prevent buzz and vibration.
The location for RTV is same as the white glue
that is originally installed.
8.3 Remove the 1 screw that secure the Pow-
er board. See Figure 27.
9. Pole Switch Board Removal
9.1 Perform procedure 2.
9.2 Remove the 1 screw securing the Pole
Switch board as indicated in Figure 28 .
Figure 26. Shield Cover Removal
Figure 27. 1 screw Location
Figure 28. 1 screw Removal
Figure 25. OLED Gasket Removal & Clean

Bose S1 PRO+ Specifications

General

Type	Handheld Public Address (PA) system
Handle(s)	Yes
Product color	Black
Housing material	Aluminium, Polypropylene (PP)
Storage temperature (T-T)	-20 - 49 °C
Operating temperature (T-T)	0 - 45 °C
Bluetooth range	9 m
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
6.35 mm (1⁄4-inch) input	2
Charging time	5 h
AC input voltage	100 - 240 V
Battery capacity	5500 mAh
Power source type	AC, Battery
AC input frequency	50/60 Hz
Battery life (max)	11 h
Number of mixer channels	3 channels
Speaker type	2-way
Number of speakers	-
Frequency range	- Hz
RMS rated power	- W

Weight and Dimensions

Depth	279.8 mm
Width	240 mm
Height	332.6 mm
Weight	6500 g
