Bose SoundDock Portable Service Manual

10
SPEAKER ASSEMBLY PART LIST
Item
Number Description Part Number QTY Note
1 BAFFLE, FRONT, SHEET METAL - 1 4
2 NUT PLATE, LEFT 300679-001 1
3 RECHARGE, LI-ION, BATTERY PACK, BLK
RECHARGE, LI-ION, BATTERY PACK, WHT
043517
043516
1 3
4 SCREW, 6-13 X .625, PAN, XREC/SQ 288374-010 6 4
5 TWIDDLER ASSY W/HARNESS 302612-001 1
6 NUT PLATE, RIGHT 300680-001 1
7 CABLE, 28AWG, RIBBON, 1.0MM, 220MM 302209-15220 1
8 IO BOARD, PCB ASSY, SVC, ROHS 307957-002 1 3
9 SCREW, 6-13 X .5/8 LG HD XREC/SQ 307354-010 1 4
10 SCREW, 6-13 X .625, PAN, XREC/SQ 288374-010 6 4
11 MODULE ASSY, CRADLE, SVC, MD SLVR, BLK
MODULE ASSY, CRADLE, SVC, MD SLVR, WHT
300660-101
300660-102
1
12 SCREW, 6-13 X 5/8 LG HD XREC/SQ - 4 4
13 FOOT, RUBBER 301750-001 4
14 GRILL, ASSY, MD SLVR, BLK
GRILL, ASSY, MD SLVR, WHT
300684-001 or
309981-001
300684-002 or
309981-002
1
15 GRILL GASKET 304107-018 4
16 GASKET, EMI, RECTANGULAR 307375-050 2
17 CABLE, FLEX, 2POS, 0.5P 310678-001 1
18 ENCLOSURE, REAR, BLK
ENCLOSURE, REAR, WHT
300676-011
300676-012
1
- FASTENER, INTERLOCK, 120mm (velcro) 309014-120 2
- FASTENER, INTERLOCK, 120mm (velcro) 309014-025 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
BOSE
®
SOUNDDOCK PORTABLE DIGITAL MUSIC SYSTEM

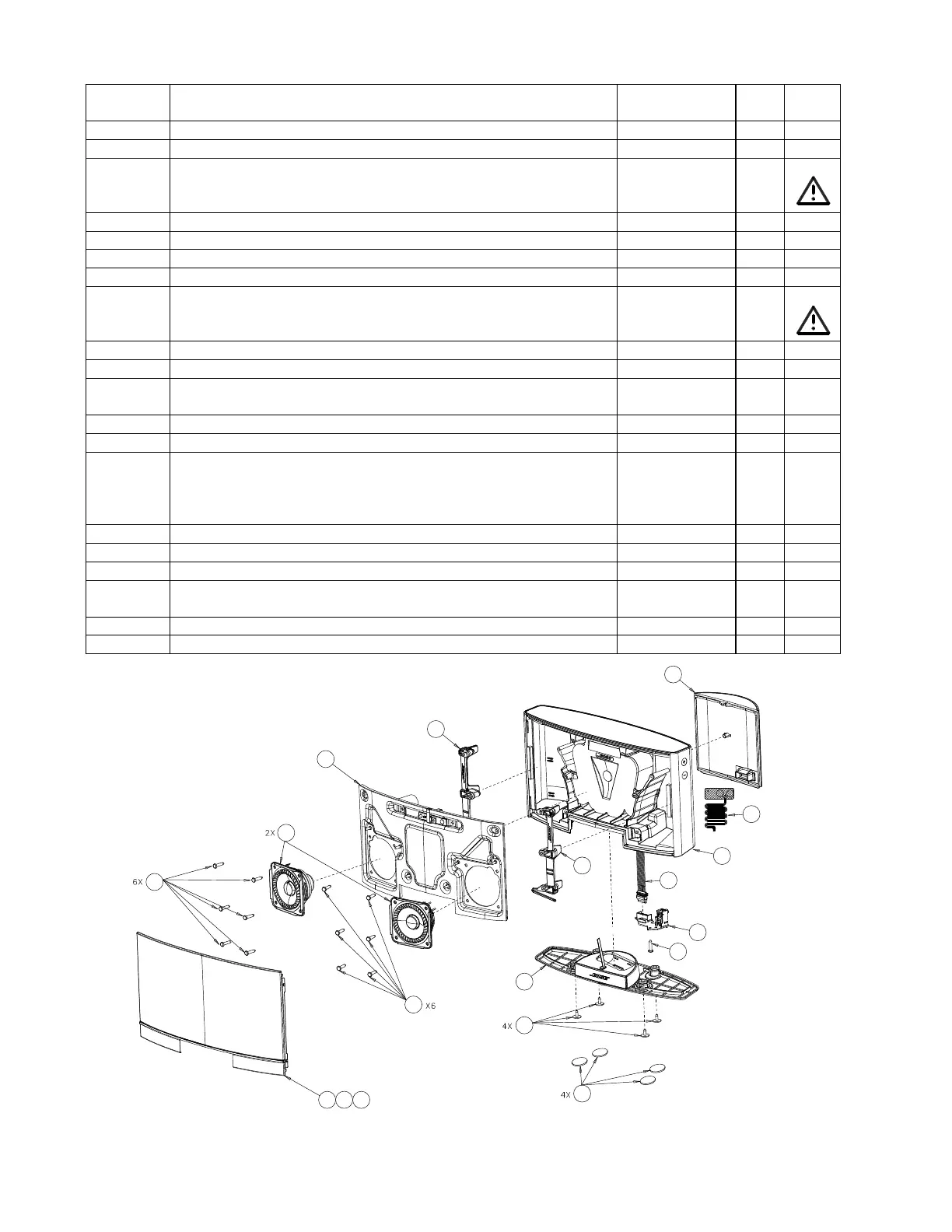

Figure 2. Speaker Assembly Exploded View

Bose SoundDock Portable Specifications

General

Compatibility	iPhone 3GS 16GB, 32GB, iPhone 3G 8GB, 16GB, iPhone 4GB, iPod touch 1st &2nd gen. 8GB, 16GB, 32GB, iPod classic 80GB, 120GB, 160GB, iPod 5th gen. 30GB, 60GB, 80GB, iPod 4th gen. 20GB, 30GB, 40GB, 60GB, iPod nano 4th gen. 8GB, 16GB, iPod nano 3rd gen. 4GB, 8GB, iPod nano 2nd gen. 2GB, 4GB, 8GB, iPod nano 1st gen. 1GB, 2GB, 4GB, iPod mini 4GB, 6GB.
Product color	Black

Weight and Dimensions

Weight	2370 g
