Bose SoundDock Portable Service Manual

8
Description Bose
®
Part
Number
Note
PWR PACK, 20V, 2A, BLK (rectangular)
PWR PACK, 20V, 2A, WHT (rectangular)
or
PWR PACK, 20V, 2A, BLK (rectangular)
PWR PACK, 20V, 2A, WHT (rectangular)
PWR PACK, 20V, 2A, BLK (circular)
PWR PACK, 20V, 2A, WHT (circular)
301141-001
301141-002
or
301141-011
301141-012
306386-101
306386-102
3
AC CLIP, 120V, US, BLK (rectangular)
AC CLIP, 120V, US, WHT (rectangular)
AC CLIP, 120V, US, BLK (circular)
AC CLIP, 120V, US, WHT(circular)
*AC CLIP KIT, APAC, BLK (rectangular)
*AC CLIP KIT, APAC, WHT (rectangular)
*AC CLIP KIT, APAC, BLK (circular)
*AC CLIP KIT, APAC, WHT (circular)
*AC CLIP KIT, EU/UK, BLK (rectangular)
*AC CLIP KIT, EU/UK, WHT (rectangular)
*AC CLIP KIT, EU/UK, BLK (circular)
*AC CLIP KIT, EU/UK, WHT (circular)
304114-001
304114-002
304158-001
304158-002
304114-251
304114-252
304158-351
304158-352
304114-121
304114-122
304158-121
304158-122
3
*APAC kit includes the AC clips for China, Australia and Korea
*EU/UK kit includes the AC clips for Europe and the United Kingdom

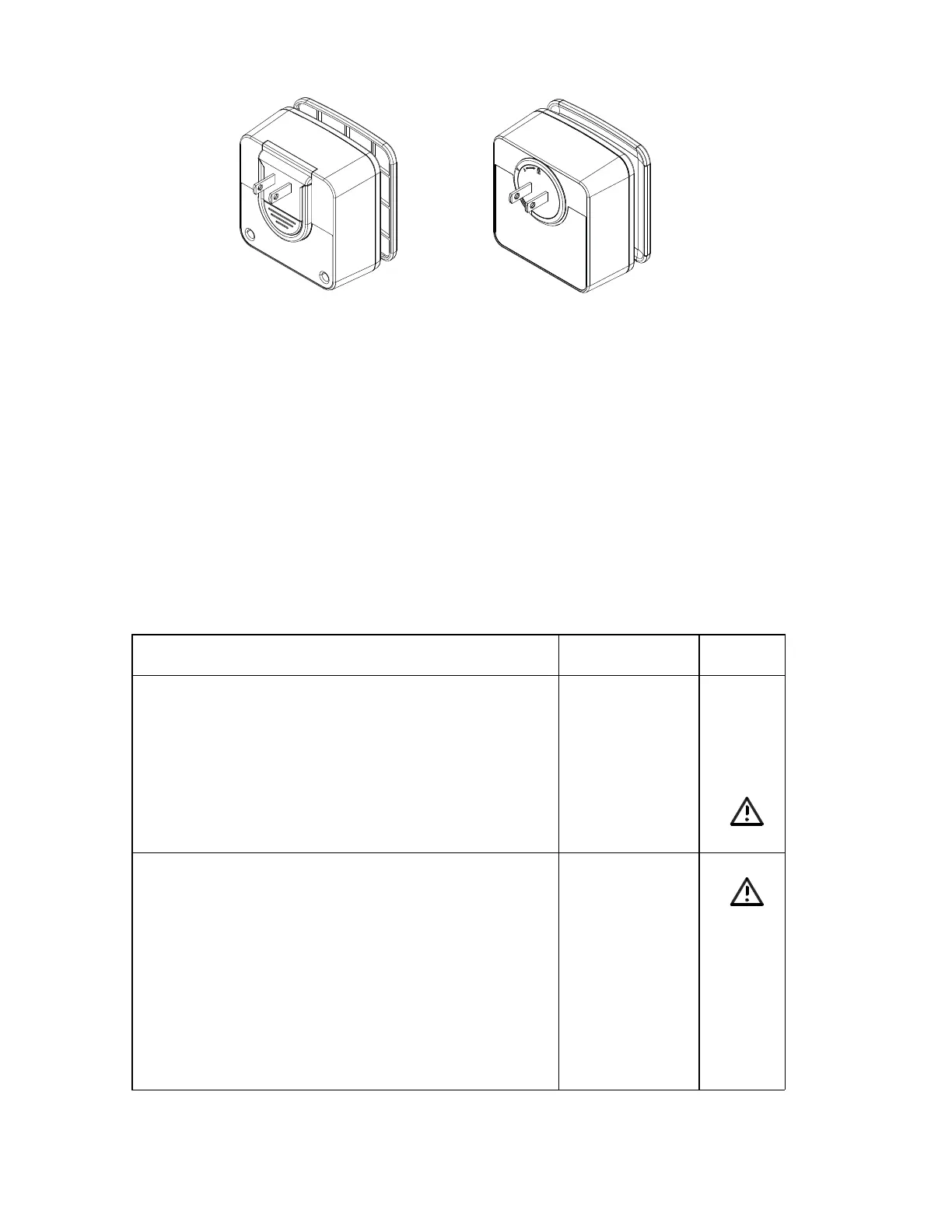

There are two different power supplies created for the SoundDock
®
Portable Digital Music
System. Each has a unique mechanical interface. One is circular and the other is rectangular,
they are not interchangable. Use the part list below to identify the part numbers needed for each
version of the supply.
Note: The power supply part number does not include
the AC clip. See part list below for details.
POWER SUPPLY PART LIST
306386-101 BLK
306386-102 WHT
301141-001 BLK
301141-002 WHT
or
301141-011 BLK
301141-012 WHT

Bose SoundDock Portable Specifications

General

Compatibility	iPhone 3GS 16GB, 32GB, iPhone 3G 8GB, 16GB, iPhone 4GB, iPod touch 1st &2nd gen. 8GB, 16GB, 32GB, iPod classic 80GB, 120GB, 160GB, iPod 5th gen. 30GB, 60GB, 80GB, iPod 4th gen. 20GB, 30GB, 40GB, 60GB, iPod nano 4th gen. 8GB, 16GB, iPod nano 3rd gen. 4GB, 8GB, iPod nano 2nd gen. 2GB, 4GB, 8GB, iPod nano 1st gen. 1GB, 2GB, 4GB, iPod mini 4GB, 6GB.
Product color	Black

Weight and Dimensions

Weight	2370 g
