Bose SoundDock Portable Service Manual

9
PACKAGING PART LIST

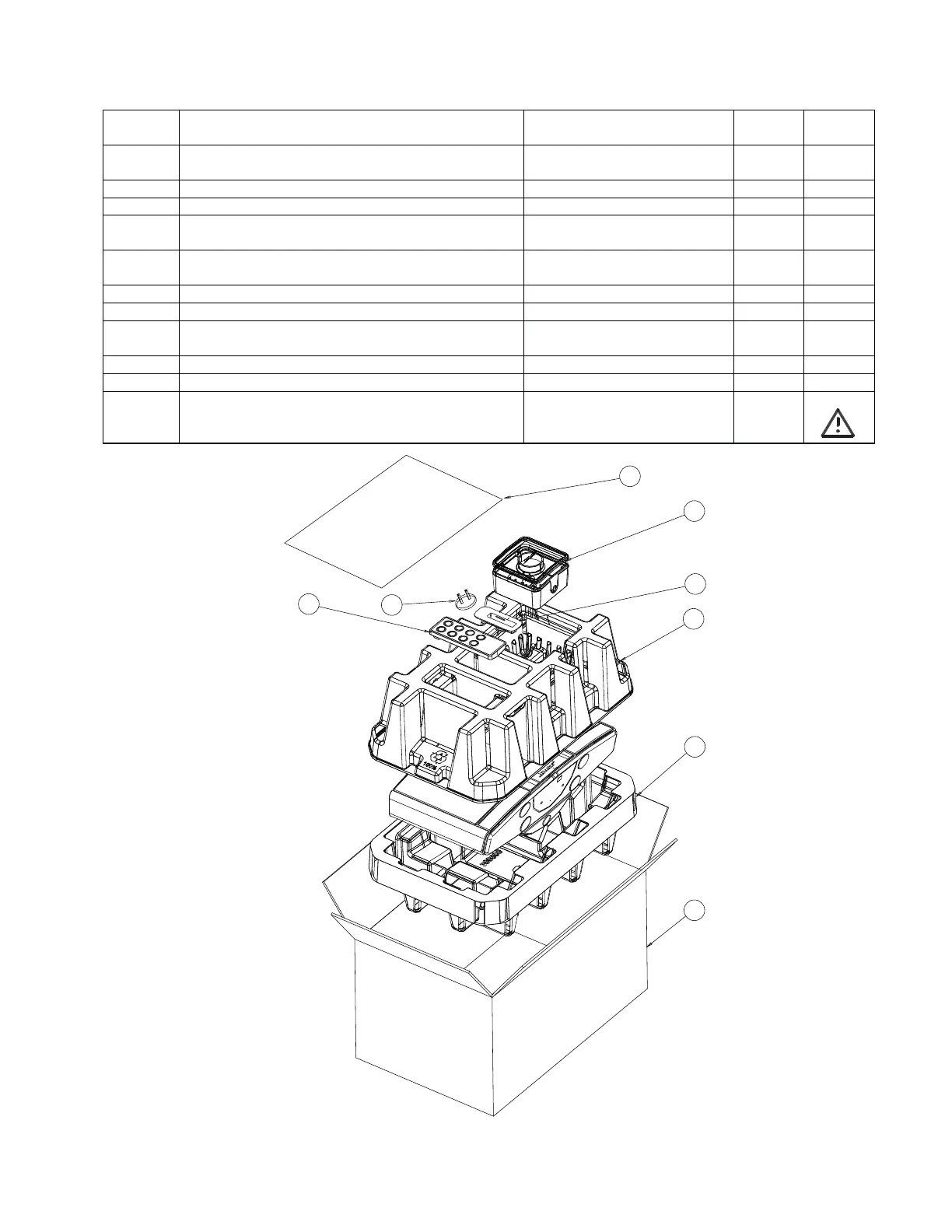

Figure 1. Packing Exploded View
Item
Number
Description Part Number QTY Note
1 OWNERS GUIDE, MAX, 8L, US/EU/UK
OWNERS GUIDE, SD P, 6L, AP
300673
306331
1
2 SEE POWER SUPPLY DETAILS ON PAGE 7 - -
3 SEE AC PRONG DETAILS ON PAGE 7 - -
4 INSERT NANO, SD P, BLK
INSERT NANO, SD P, WHT
307663-001
307663-002
1
5 REMOTE CNTRL, IR, 6 FUNC, BLK
REMOTE CNTRL, IR, 6 FUNC, WHT
301373-001
301373-002
1
6 PACKING, TRAY, TOP 14 X 9 X 4 300698 1
7 PACKING, TRAY, BOTTOM 14 X 9 X 4 300699 1
8 CARTON, BLK 14.19 X 9.19 X 8, PRINTED
CARTON, BLK 14.19 X 9.19 X 8, BLANK
311574
300697
1
- INSERT, UNIVERSAL, WHT 303570-002
- INSERT, UNIVERSAL, BLK 303570-001 1
- RECHARGE, LI-ION, BATTERY PACK, BLK
RECHARGE, LI-ION, BATTERY PACK, WHT
043517
043516
1 3
BOSE
®
SOUNDDOCK PORTABLE DIGITAL MUSIC SYSTEM
8
7
5
1
2
3
6
4

Bose SoundDock Portable Specifications

General

Compatibility	iPhone 3GS 16GB, 32GB, iPhone 3G 8GB, 16GB, iPhone 4GB, iPod touch 1st &2nd gen. 8GB, 16GB, 32GB, iPod classic 80GB, 120GB, 160GB, iPod 5th gen. 30GB, 60GB, 80GB, iPod 4th gen. 20GB, 30GB, 40GB, 60GB, iPod nano 4th gen. 8GB, 16GB, iPod nano 3rd gen. 4GB, 8GB, iPod nano 2nd gen. 2GB, 4GB, 8GB, iPod nano 1st gen. 1GB, 2GB, 4GB, iPod mini 4GB, 6GB.
Product color	Black

Weight and Dimensions

Weight	2370 g
