DISASSEMBLY PROCEDURE CONTINUED

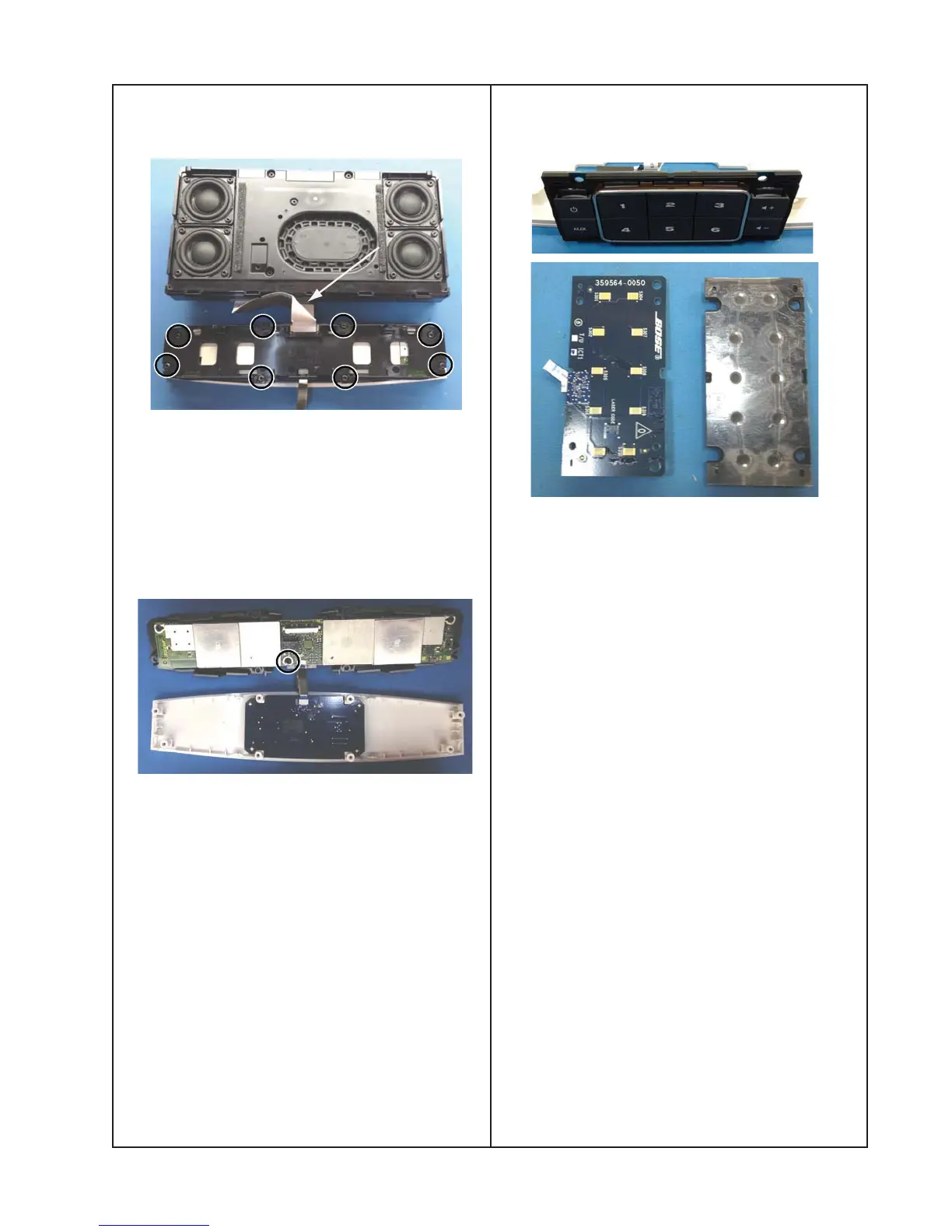

4. Wi-Fi Module
4.1 Disconnect the two cables that connect to
the Wi-Fi module. J1201 and J1202.
4.2 Remove the eight screws holding the Wi-
Fi Module to the top cap.
4.3 Remove the single screw holding the Wi-
Fi Module to the top cap frame.
5. Key Pad and Button Board disassembly
5.1 The key pad and the button board are
attached by PSA (Pressure Sensitive Adhe-
sive). When replacing the button board,
replace both parts.
Key pad part number - 355698-0030
Button PCB part number - 354789-001S

Bose SoundTouch Portable Specifications

General

Connectivity	Wi-Fi, Bluetooth, AUX
Audio formats supported	MP3, WMA, AAC, Apple Lossless
Power	Rechargeable lithium-ion battery
Wireless Range	Up to 30 feet (9 meters)
Audio Input	3.5 mm auxiliary input
Compatibility	SoundTouch app
Voice Control	Amazon Alexa
Water Resistance	No
