22

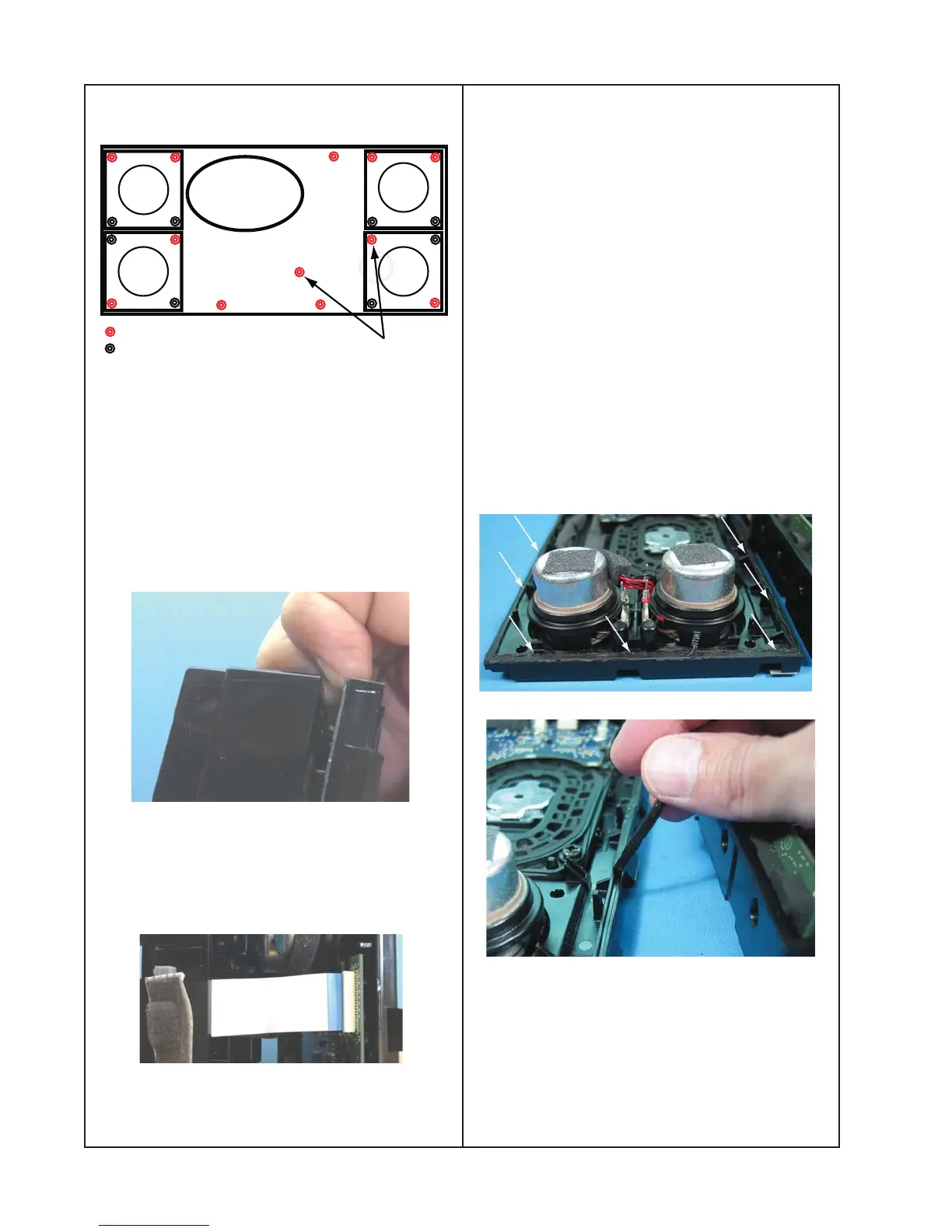

7. Removing and replacing the MIP (Mold
In Place) gasket
The SoundTouch™ Mobile system uses a
MIP (Mold In Place) gasket that acoustically
seals the front and rear enclosure assem-
blies. See below.
This MIP gasket cannot be recreated by the
service group. If the gasket is damaged, it will
need to be fully removed and replaced with
gasket strips. These strips are similar to
double sided tape.
Note: The gasket only needs to be replaced
if damaged or it can no longer acoustically
seal the front and rear enclosures.
349600-001S - Gasket Strips, Service Kit
7.1 Remove the existing MIP gasket if dam-
aged by separating it from the enclosure.
DISASSEMBLY PROCEDURE CONTINUED
6. Acoustic Enclosure Disassembly
6.1 To disassemble the acoustic enclosure, it
is not necessary to remove all 20 screws.
Remove only the 12 screws shown in red
above.
Note: Two of the screws shown with arrows
are twice the length of the other screws.
Ensure they are placed back in to the original
locations.
6.2 Carefully separate the front and rear
enclosures and pull them apart to gain access
to the internal parts. It is important to not
damage the existing MIP (mold in place)
gasket.
6.3 Disconnect the cable from the Amplifier
board to separate the front and rear enclo-
sure.
Longer Screws
Screw needs to be removed For Disassembly
Screw does not need to be removed For Disassembly
To Next Page
