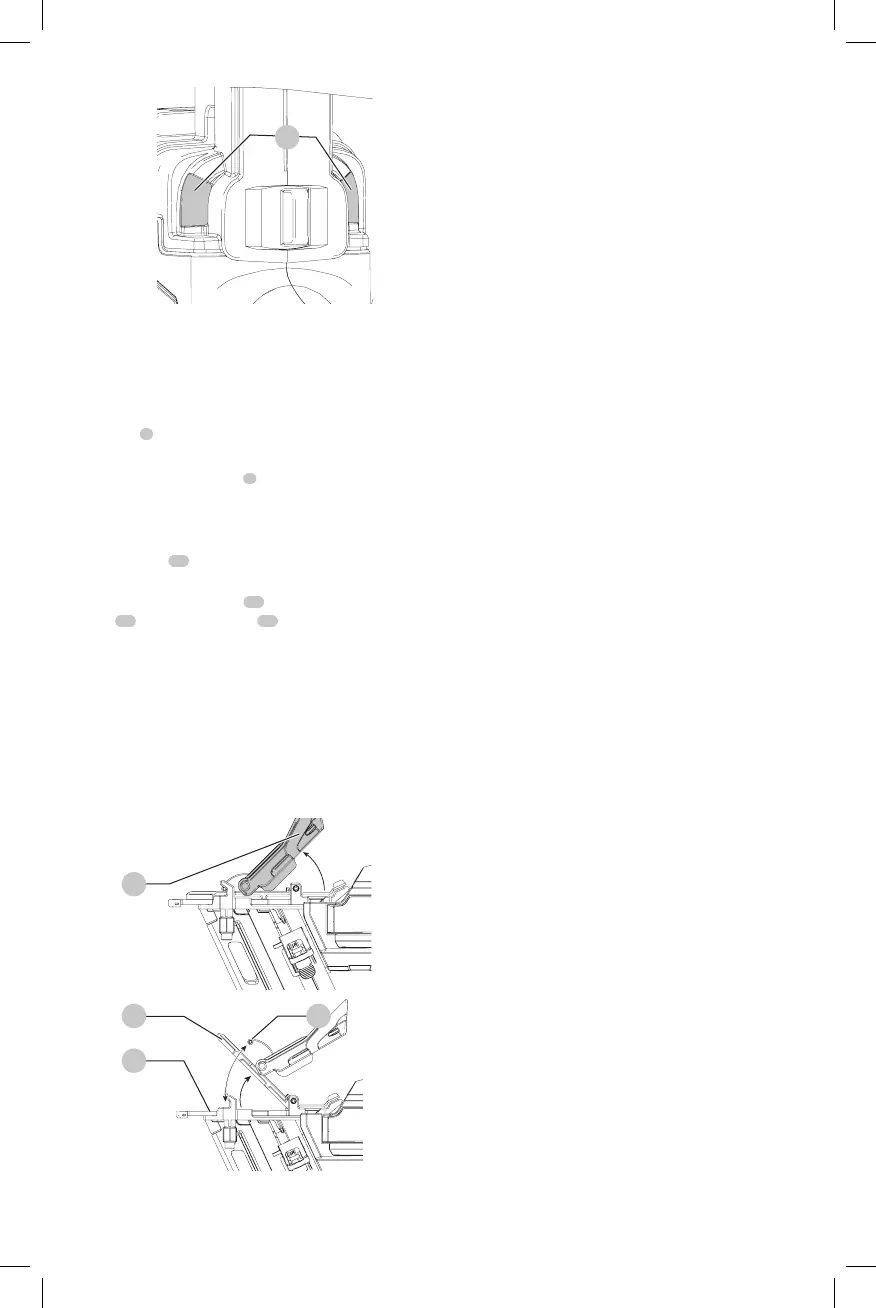

Clearing a Jammed Nail (Fig. A, L)
If a nail becomes jammed in the nosepiece, keep the tool
pointed away from you and follow these instructions
toclear:
1. Remove battery pack from tool and engage the trigger
lock-off
2
.
2. Pull the pusher back and remove any loaded nails.
3. Lift the jam clearing latch
5
then pull up to open the
nosepiece door.
4. Remove bent nail, using pliers if necessary.
5. If driver blade is in the down position, cycle the stall
release lever
13
using enough force to fully slide it to
the other end of the slot in the housings.
6. Close the nosepiece door
18
and engage the latch
pin
17
under the two arms
19
on the nosepiece. Push
latch until it locks in place.
7. Reinsert nails into magazine (see Loading the Tool)
8. Reinsert battery pack.
NOTE: The tool will disable itself and not
reset until the battery pack has been removed
andreinserted.
NOTE: Should nails continue to jam frequently in
nosepiece, have tool serviced by an authorized BOSTITCH
servicecenter.
Fig. L
5
1718
19
Cold Weather Operation
When operating tools at temperatures below freezing:
1. Keep tool as warm as possible prior to use.
2. Actuate the tool 5 or 6 times into scrap lumber
beforeusing.
Hot Weather Operation
Tool should operate normally. However, keep tool out of
direct sunlight as excessive heat can deteriorate bumpers
and other rubber parts resulting in increased maintenance.
MAINTENANCE

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Cleaning

WARNING: Blow dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the risk
of eye injury, always wear ANSI Z87.1 approved eye
protection when performingthis.

WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of
the tool. These chemicals may weaken the plastic
materials used in these parts. Use a cloth dampened
only with water and mild soap. Never let any liquid
get inside the tool; never immerse any part of the tool
into aliquid.
Accessories

WARNING: Since accessories, other than those
offered by BOSTITCH, have not been tested with this
product, use of such accessories with this tool could be
hazardous. To reduce the risk of injury, only BOSTITCH
recommended accessories should be used with
thisproduct.
Recommended accessories for use with your tool are
available at extra cost from your local dealer or authorized
service center. If you need assistance in locating any
accessory, please contact BOSTITCH Industrial Tool Co.,
701East Joppa Road, Towson, MD 21286, call 1-800-556-
6696 or visit our website: www.BOSTITCH.com.
Use only identical replacement parts. For a parts list or to
order parts, visit our service website at www.BOSTITCH.
com . You can also order parts from your nearest BOSTITCH
Factory Service Center or BOSTITCH Authorized Warranty
Service Center. Or, you can call our Customer Care Center at
1-800-556-6696.
Repairs
The charger and battery pack are notserviceable.

WARNING: To assure product SAFETY and
RELIABILITY, repairs, maintenance and adjustment
(including brush inspection and replacement, when
applicable) should be performed by a BOSTITCH
