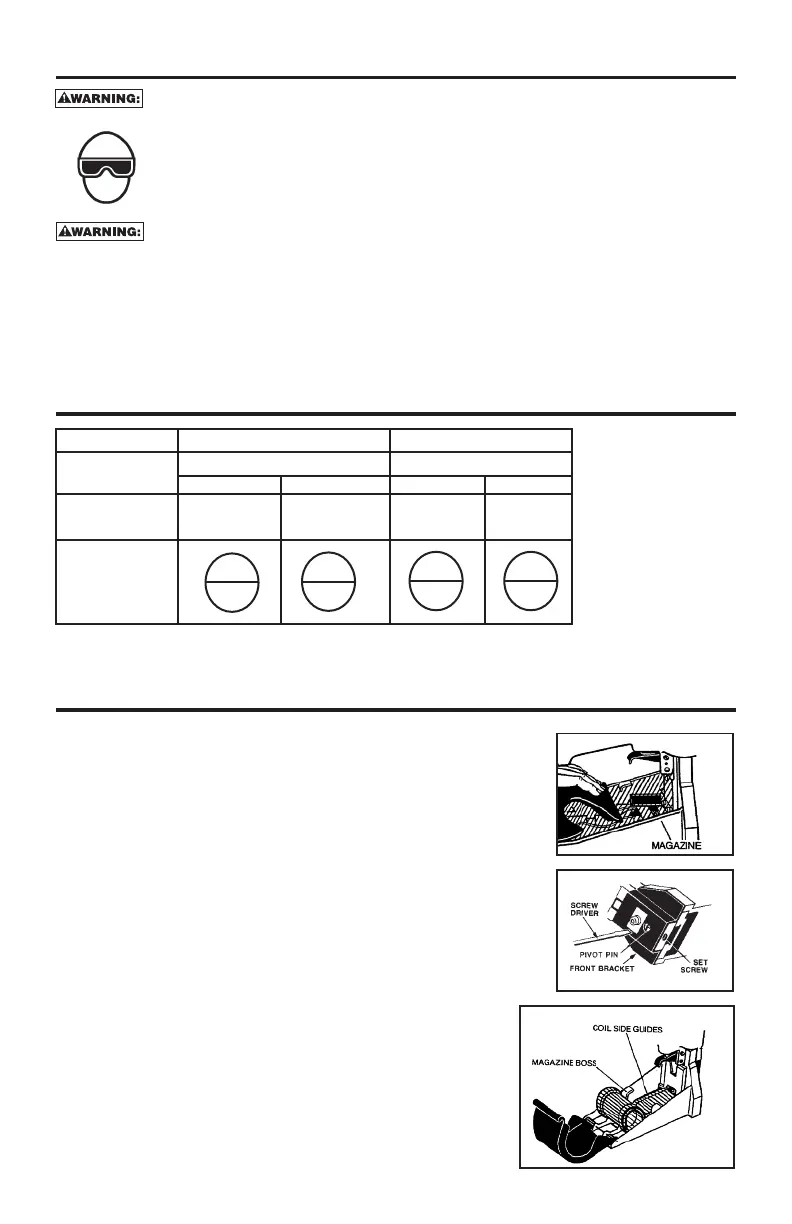

LOADING THE D62ADC/DS-3219/DS-3522
E
YE PROTECTION which conforms to ANSI specifications and provides protection against
f
lying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and
others in the work area when connecting to air supply, loading, operating or servicing this
tool. Eye protection is required to guard against flying fasteners and debris, which could
cause severe eye injury.
T
he employer and/or user must ensure that proper eye protection is worn. Eye protection
equipment must conform to the requirements of the American National Standards Institute,
A
NSI Z87.1 and provide both frontal and side protection. NOTE: Non-side shielded
spectacles and face shields alone do not provide adequate protection.
TO PREVENT ACCIDENTAL INJURIES:
• Never place a hand or any other part of the body in discharge area of tool while
the air supply is connected.
• Never point the tool at anyone else.
•
Never engage in horseplay.
• Never pull the trigger unless nose is directed at the work.
• Always handle the tool with care.
• Do not pull the trigger while loading the tool.
PARTS/STAPLE CHART
LOADING THE D62ADC
1. Disconnect from air supply
2. Open the magazine
Press cover slightly to unlatch from magazine and swing cover open (FIG.1).
3. Check Staple Leg Length
Adjustment is provided in the D62ADC for different staple leg
lengths.
A) To adjust machine for leg length, loosen set screw and turn dial
180˚ with a screwdriver to the desired adjustment as noted.
Tighten set screw (FIG.2).
B) To adjust coil guides, loosen four screws (FIG.3):
1) For 1/2" (13mm) staples: push guides forward and
in-wards as far as they go, tighten screws.
2) For 5/8" (16mm) staples: push guides to rear with screws
in center of slots, tighten screws.
3) For 3/4" (19mm) staples: push guides forward and
outwards as far as they go, tighten screws.
-6-
FIG.1
FIG.2
FIG.3
MODEL D62ADC/DS-3219/DS-3522 DS-3522
CLINCHERS STANDARD/FLAT DEEP
--A01200601(L.H.) A01200501(R.H.)
S
L
S
L
S
L
S
L
DIAL
POSITION
5/8" (16mm) 3/4" (19mm) 3/4" (19mm) 7/8" (22mm)
STAPLE
LENGTHS
