FASTENER DEPTH CONTROL ADJUSTMENT
When using the framing contact arm:
The Fastener Depth Control Adjustment feature provides control of the nail drive depth from flush with or just
a
bove the work surface to shallow or deep countersink.
TO ADJUST THE FASTENER DEPTH CONTROL:
D
isconnect tool from air supply before attempting any parts disassembly and before
changing the work contacting element adjustment.
1
. Push in on locking button.
2. Adjust contact arm up to increase depth
of drive or down to decrease it.
3
. Release locking button
DIRECTIONAL EXHAUST DEFLECTOR
The adjustable exhaust deflector can be rotated into any desired position by hand without the use of any tools.
REMOVING NAILS
2
. ADJUST

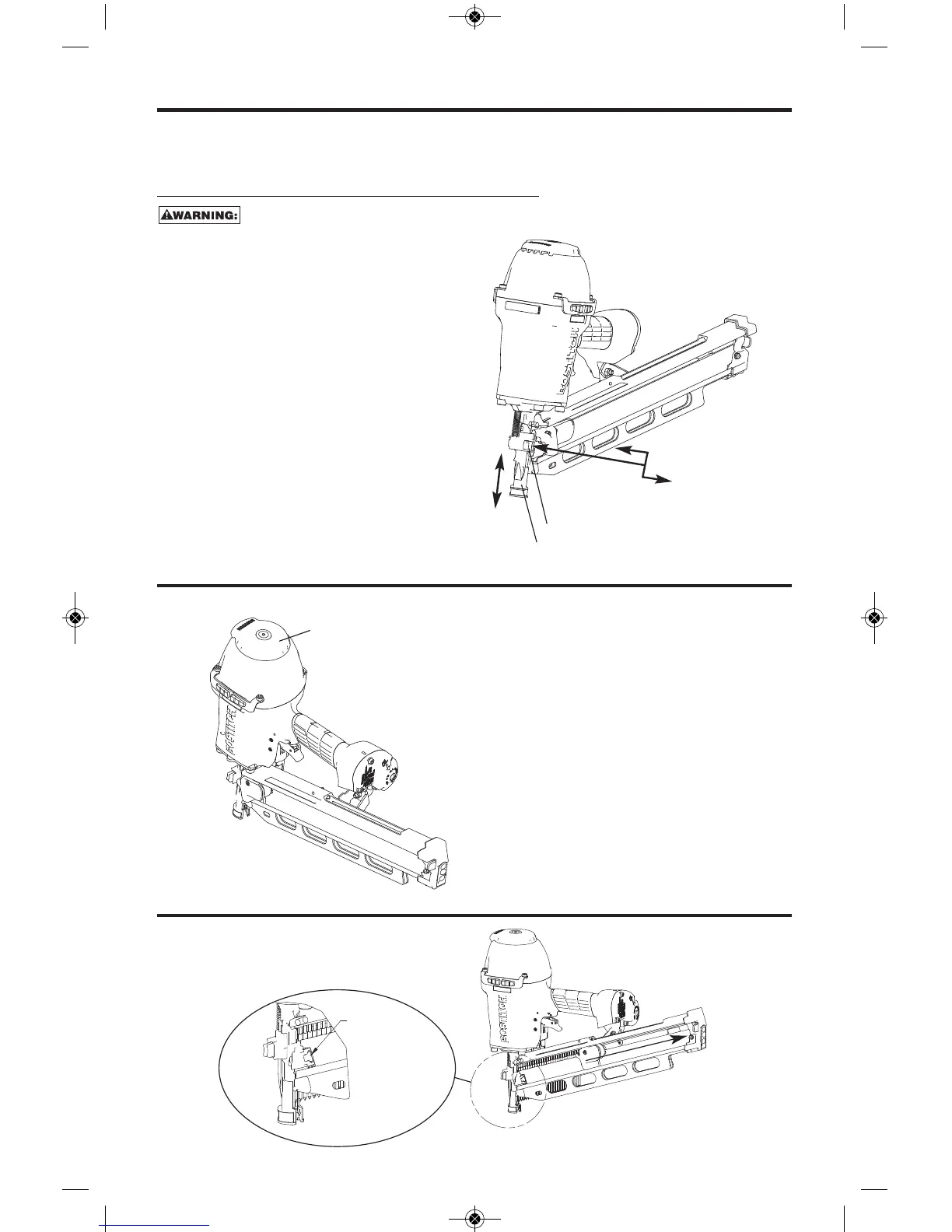

1. PUSH IN
3. RELEASE
LOCKING BUTTON
CONTACT ARM
VIEW 3 PAGE 7
1. Pull pusher back until it engages latch.
2. Slide nails back to opening and push out.
7
Exhaust Deflector
Note: Metal Connector Attachment
is not adjustable for depth control.
PULL BACK ON PAWL
TO RELEASE NAIL STICK
