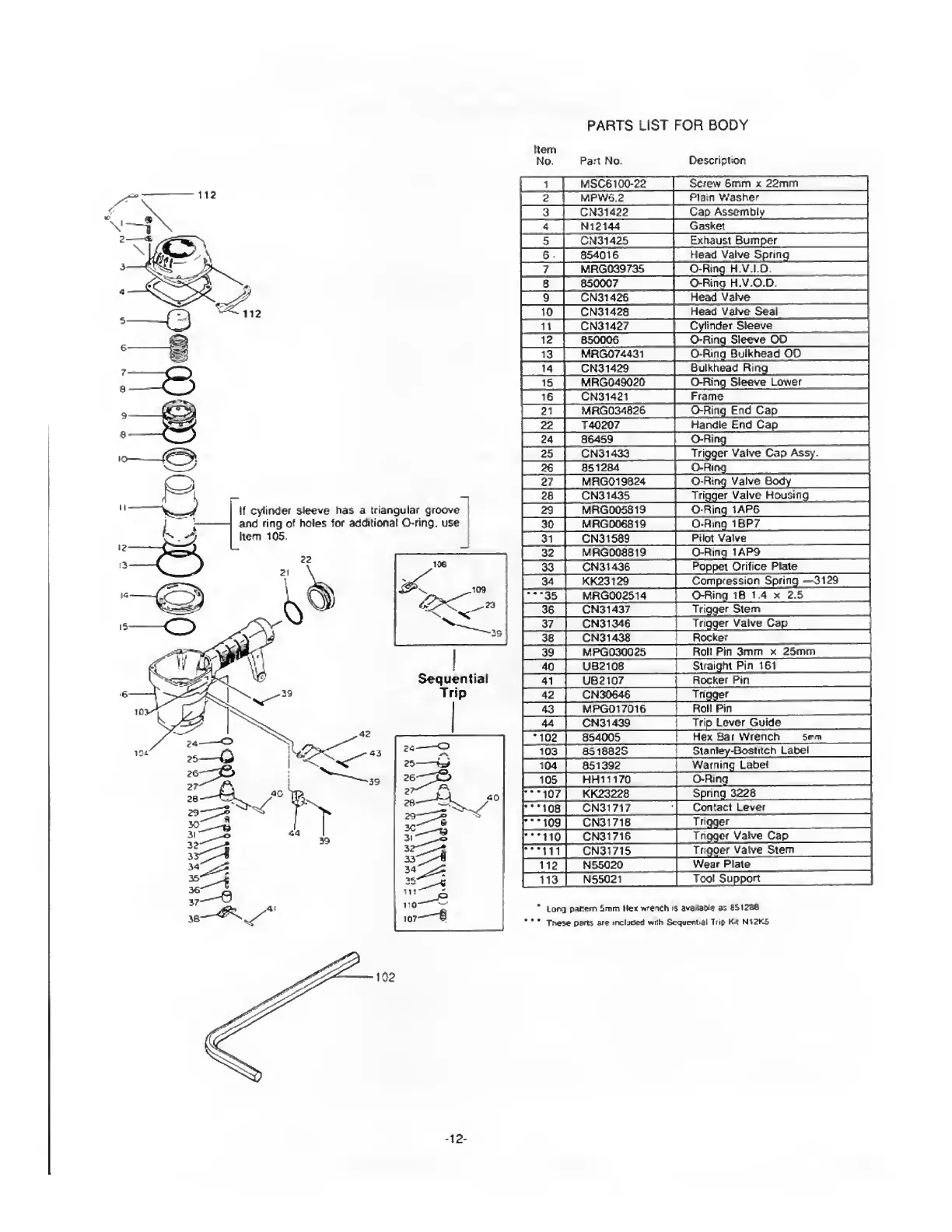

PARTS LIST FOR BODY
Item
No.
Part No.
Description
112
112
1 MSC6100-22
Screw 6mm x 22mm
2
MPWS.2 Plain Washer
3
CN31422 Cap Assembly
4 N12144
Gasket
5
CN31425
Exhaust Bumper
6
854016
Head Valve Sprinq
7
MRG039735
O-Ring H.V-I.O.
8 850007
O-Rinq H.V.O.D.
9
CN31426
Head Valve
10 CN31428
Head Valve Seal
11
CN31427
Cylinder Sleeve
12
850006 O-Ring Sleeve OO
13
MRG074431
O-Rinq Bulkhead OO
14 CN31429
Bulkhead Ring
IS MRG049020
O-Rinq Sleeve Lower
16 CN31421 Frame
21
MRG034826 O-Rinq End Cap
22
T40207
Handle End Cap
24
86459
O-Ring
25
CN31433
Trigger Valve Cap Assy
26
851284 O-Ring
27
MRG019824
O-Ring Valve Body
28 CN31435
Triqqer Valve Housing
29
MRG005819 O-Rinq 1AP6
30
MRG006819
O-Ring 1BP7
31 CN31589
Pilot Valve
32
MRG008819 O-Ring 1AP9
33
CN31436
Poppet Orifice Plate
34 KK23129
Compression Sprinq —3129
”•35
MRG002514
O-Ring IB 1.4 x 2.5
36
CN31437
Trigger Stem
37
CN31346
Triqqer Valve Cap
38
CN31438
Rocker
39
MPG030025
Roll Pin 3mm x 25mm
40
UB2108
Straight Pin 161
41
UB2107
Rocker Pin
42
CN30646
Trigger
43
MPGO17016
Roll Pin
44
CN31439
Trip Lever Guide
*102 854005
Hex Bar Wrench sirm
103 351882S
Stanley-Bostitch Label
104
851392
Warning Label
105
HH11170
O-Ring
•"107 KK23228
Spring 3228
•••108
CN31717
Contact Lever
•"109
CN31718
T f '9ger_
•"110
CN31716
Triqqer Valve Cap
•"111 CN31715
Trigger Valve Stem
112
N55020
Wear Plate
113
N55021
Tool Support
Long par cm 5mm Hex wrench >s avaitaW* as 851288
