Bostitch N12B Series User Manual

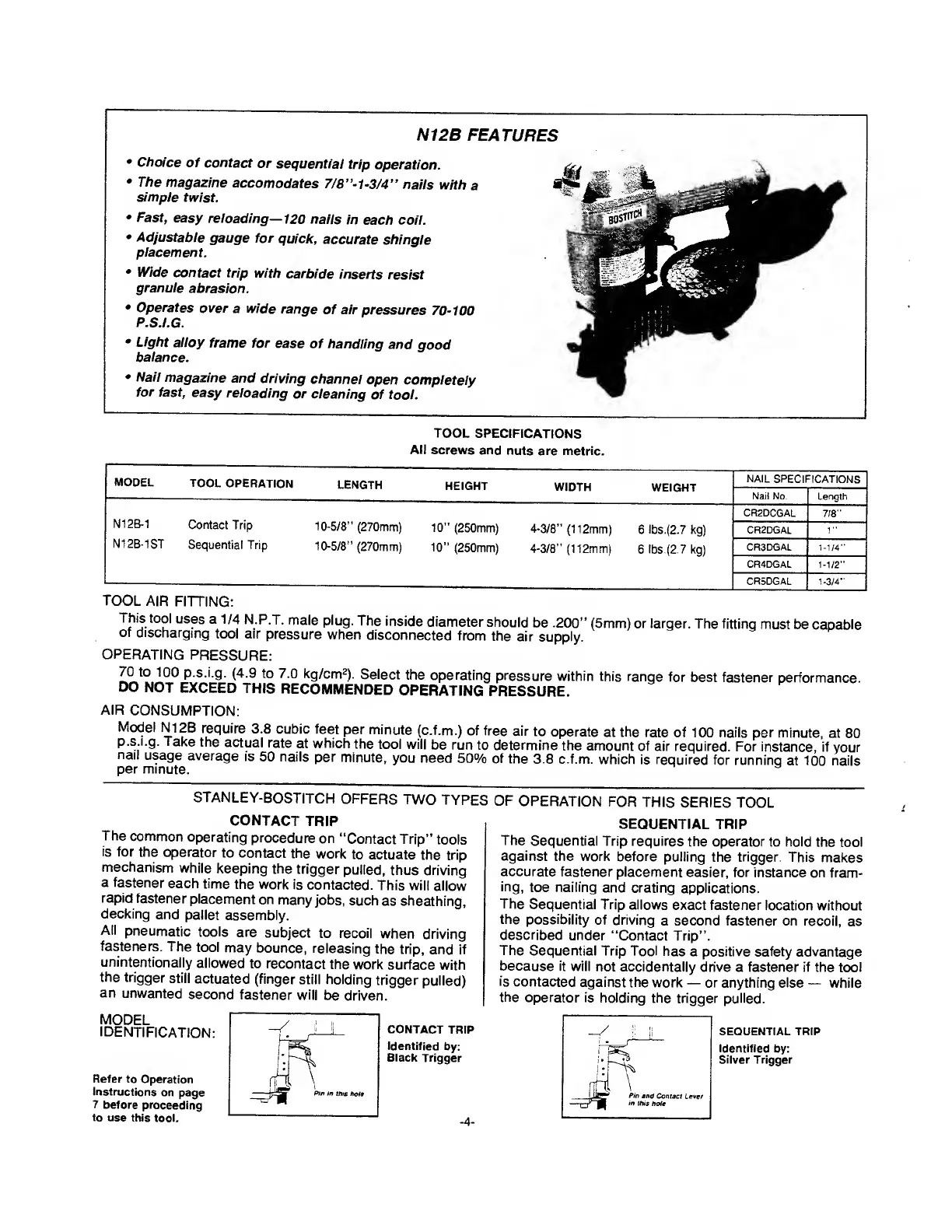

N12B FEATURES
• Choice of contact or sequential trip operation.
• The magazine accomodates 7/8’’-1-3/4” nails with a
simple twist.
• Fast, easy reloading—120 nails in each coil.
• Adjustable gauge for quick, accurate shingle
placement.
• Wide contact trip with carbide inserts resist
granule abrasion.
• Operates over a wide range of air pressures 70-100
P.S.I.G.
• Light alloy frame for ease of handling and good
balance.
• Nail magazine and driving channel open completely
for fast, easy reloading or cleaning of toot.
TOOL SPECIFICATIONS
All screws and nuts are metric.
TOOL AIR FITTING:
This tool uses a 1/4 N.P.T. male plug. The inside diameter should be .200” (5mm) or larger. The fitting must be capable
of discharging tool air pressure when disconnected from the air supply.
OPERATING PRESSURE:
70 to 100 p.s.i.g. (4.9 to 7.0 kg/cm 2 ). Select the operating pressure within this range for best fastener performance
DO NOT EXCEED THIS RECOMMENDED OPERATING PRESSURE.
AIR CONSUMPTION:
Model N12B require 3.8 cubic feet per minute (c.f.m.) of free air to operate at the rate of 100 nails per minute, at 80
p.s.i.g. Take the actual rate at which the tool will be run to determine the amount of air required. For instance, if your
nail usage average is 50 nails per minute, you need 50% of the 3.8 c.f.m. which is required for running at 100 nails
per minute.
STANLEY-BOSTITCH OFFERS TWO TYPES OF OPERATION FOR THIS SERIES TOOL
CONTACT TRIP SEQUENTIAL TRIP
The common operating procedure on “Contact Trip” tools The Sequential Trip requires the operator to hold the tool
is for the operator to contact the work to actuate the trip against the work before pulling the trigger. This makes
mechanism while keeping the trigger pulled, thus driving accurate fastener placement easier, for instance on fram-
a fastener each time the work is contacted. This will allow ing, toe nailing and crating applications,
rapid fastener placement on many jobs, such as sheathing. The Sequential Trip allows exact fastener location without
ec ing and pallet assembly. the possibility of driving a second fastener on recoil, as
All pneumatic tools are subject to recoil when driving described under “Contact Trip”,
fasteners. The tool may bounce, releasing the trip, and if The Sequential Trip Tool has a positive safety advantage
unintentionally allowed to recontact the work surface with because it will not accidentally drive a fastener if the tool
the trigger still actuated (finger still holding trigger pulled) is contacted against the work — or anything else — while
an unwanted second fastener will be driven. the operator is holding the trigger pulled.
MODEL
IDENTIFICATION:
Refer to Operation
Instructions on page
7 before proceeding
to use this tool.
