Bostitch N12B Series User Manual

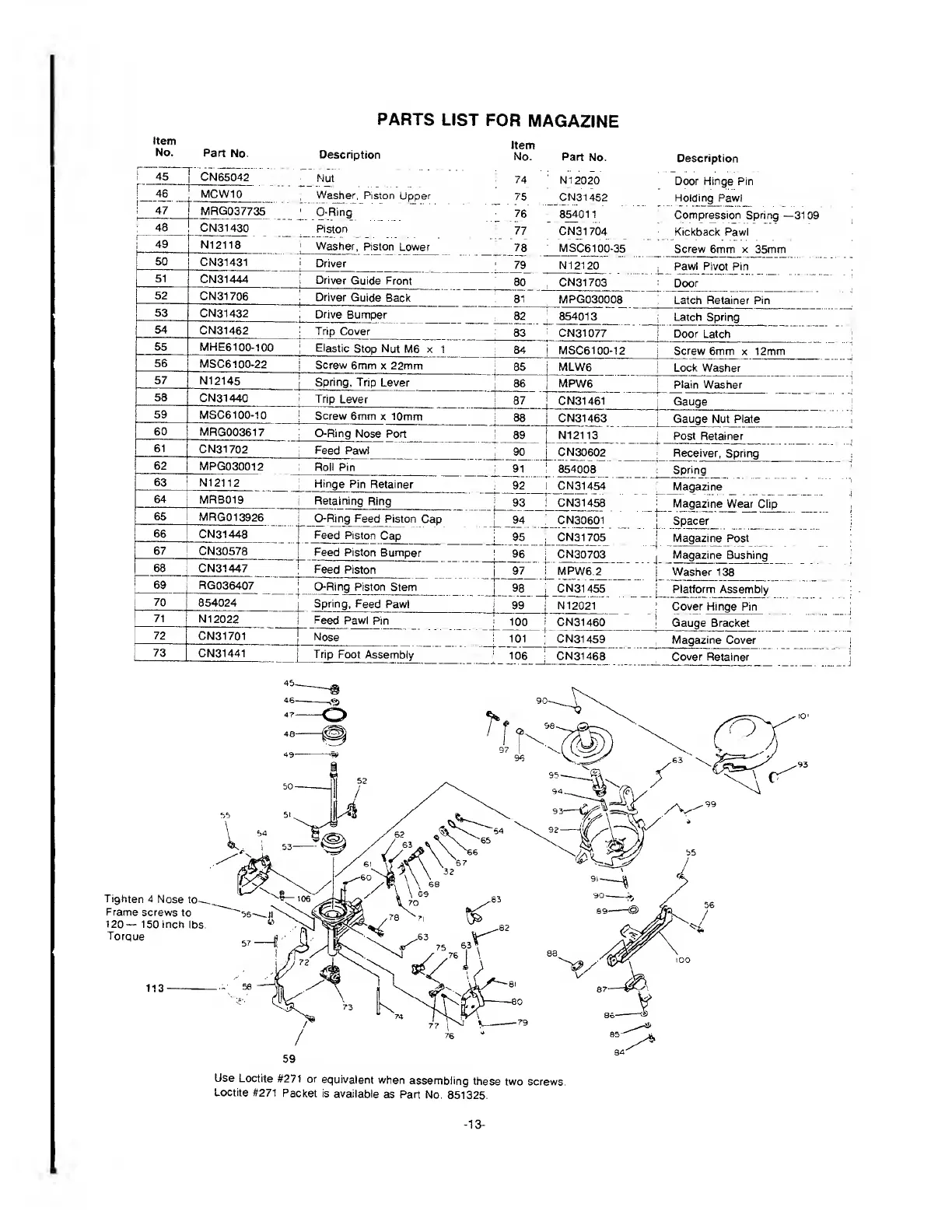

PARTS LIST FOR MAGAZINE
Description No. Part No. Description
i 45
CN65042
Nut
74
N12020
Door Hinge Pin
46
MCW10
Washer, Piston Upper
75
CN31452 Holding Pawl
! 47
MRG037735
1 O-Ring
76
854011
Compression Spring —3109
48
CN31430
Piston
77
CN31704
Kickback Pawl
! 49
N12118
Washer, Piston Lower
78
MSC6100-35
Screw 6mm x 35mm
50
CN31431
Driver
79
N12120
Pawl Pivot Pin
51
CN31444
Driver Guide Front
80
CN31703 Door
52
CN31706
Driver Guide Back
81
MPG030008
Latch Retainer Pin
53
CN31432
Drive Bumper
82
854013
Latch Spring
54
CN31462
Trip Cover
83
CN31077
Door Latch
55
MHE6100-100
Elastic Stop Nut M6 x 1
84
MSC6100-12
Screw 6mm x 12mm
56
MSC6100-22
Screw 6mm x 22mm
85
MLW6
Lock Washer
57
N12145
Spring, Trip Lever
86
MPW6
Plain Washer
58
CN31440
Trip Lever
87
CN31461
Gauge
59
MSC6100-10
Screw 6mm x 10mm
88
CN31463
Gauge Nut Plate
60
MRG003617
O-Ring Nose Port
89
N12113
Post Retainer
61
CN31702
Feed Pawl
90
CN30602
Receiver, Spring
62
MPG030012
Roll Pin
91
854008
Spring
63
N12112
Hinge Pin Retainer
92
CN31454
Magazine
64
MRB019
Retaining Ring
93
CN31458
Magazine Wear Clip
65
MRG013926
O-Ring Feed Piston Cap
H 9 4 ~
CN30601
Spacer
66
CN31448
Feed Piston Cap
95
CN31705
Magazine Post
67
CN30578
Feed Piston Bumper
96
CN30703
Magazine Bushing
68
CN31447
Feed Piston
97
MPW6.2
Washer 138
69
RG036407
O-Ring Piston Stem
98 CN31455
Platform Assembly
70
854024
Spring, Feed Pawl
99
N12021
Cover Hinge Pin
71
N12022
Feed Pawi Pin
100
CN31460
Gauge Bracket
72
CN31701
Nose
101
CN31459
Magazine Cover i
73
CN31441
Trip Foot Assembly
106
CN31468
Cover Retainer j
Use Loctite #271 or equivalent when assembling these two screws.
Loctite #271 Packet is available as Part No. 851325.
- 13 -
