5 Starting up
Unpack and carefully check that there is no transportation damage before using the
unit. Keep the equipment packaging. To fully protect the device against vibration,
dust and moisture during transportation or storage use the original packaging or
your own packaging material suitable for transport or storage, respectively.
Create all connections while the device is off. Use the shortest possible high-quality
cables for all connections. Take care when running the cables to prevent tripping
hazards.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not
use ordinary microphone cables.
Never connect the DMX input or output to audio devices such as mixers
or amplifiers.

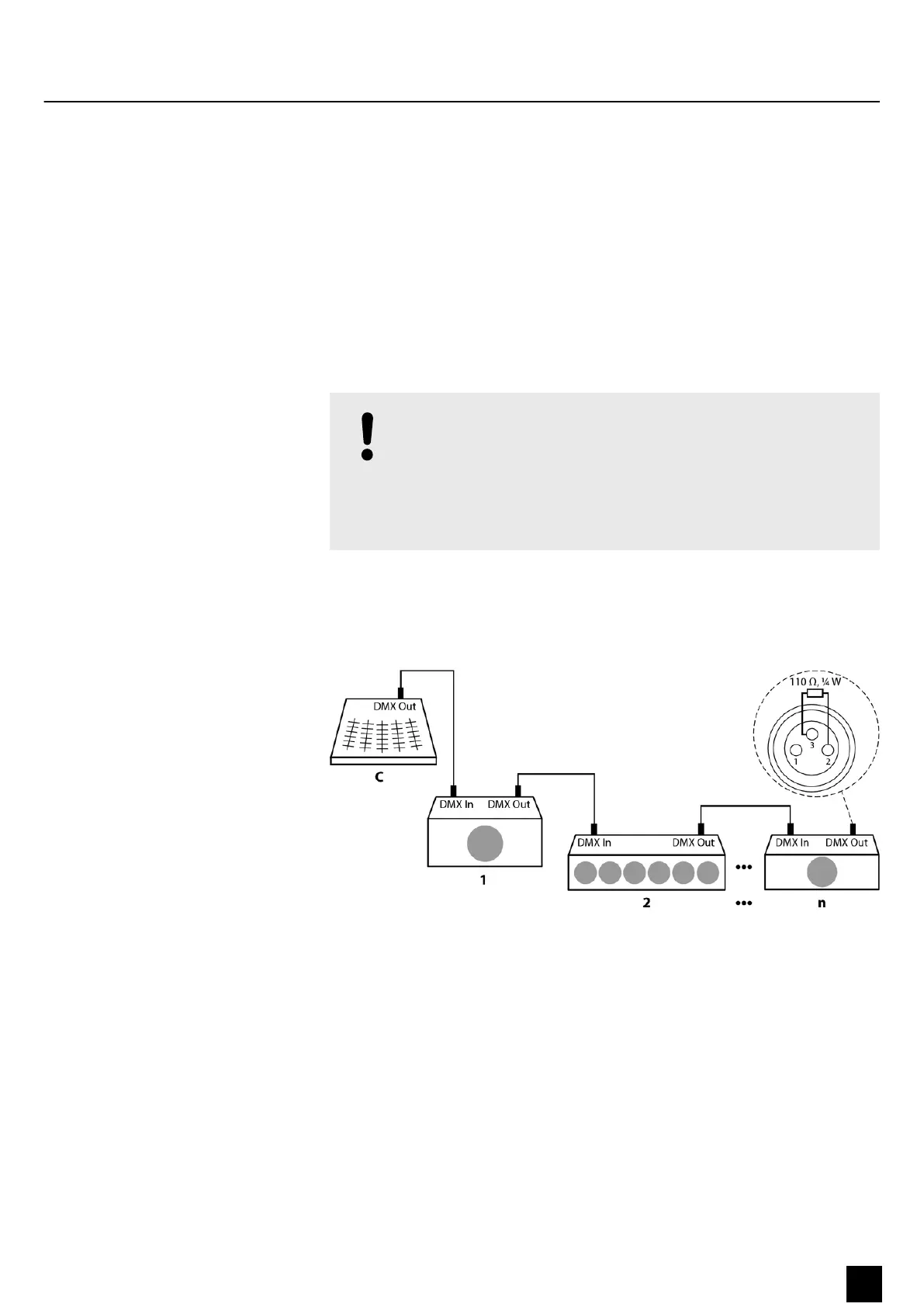

Connect the DMX output of the device (C) to the DMX input of the first DMX device
(1). Connect the output of the first DMX device to the input of the second one, and so
on to form a daisy chain. Always ensure that the output of the last DMX device in the
daisy chain is terminated with a resistor (110 Ω,
¼
W).
Connect the included 9V power supply unit to the power supply input of the unit
and then plug the power cord plug into the wall outlet.
When all cable connections are made, turn on the device with the main switch on the
rear panel. The device is immediately operational.
Connections in DMX mode
Connecting the power adapter
Turning the unit on
Starting up
DMX DC-1224
11
