BÖWE M21 - 3 View of the Machine

8
M21/M26/M30
8

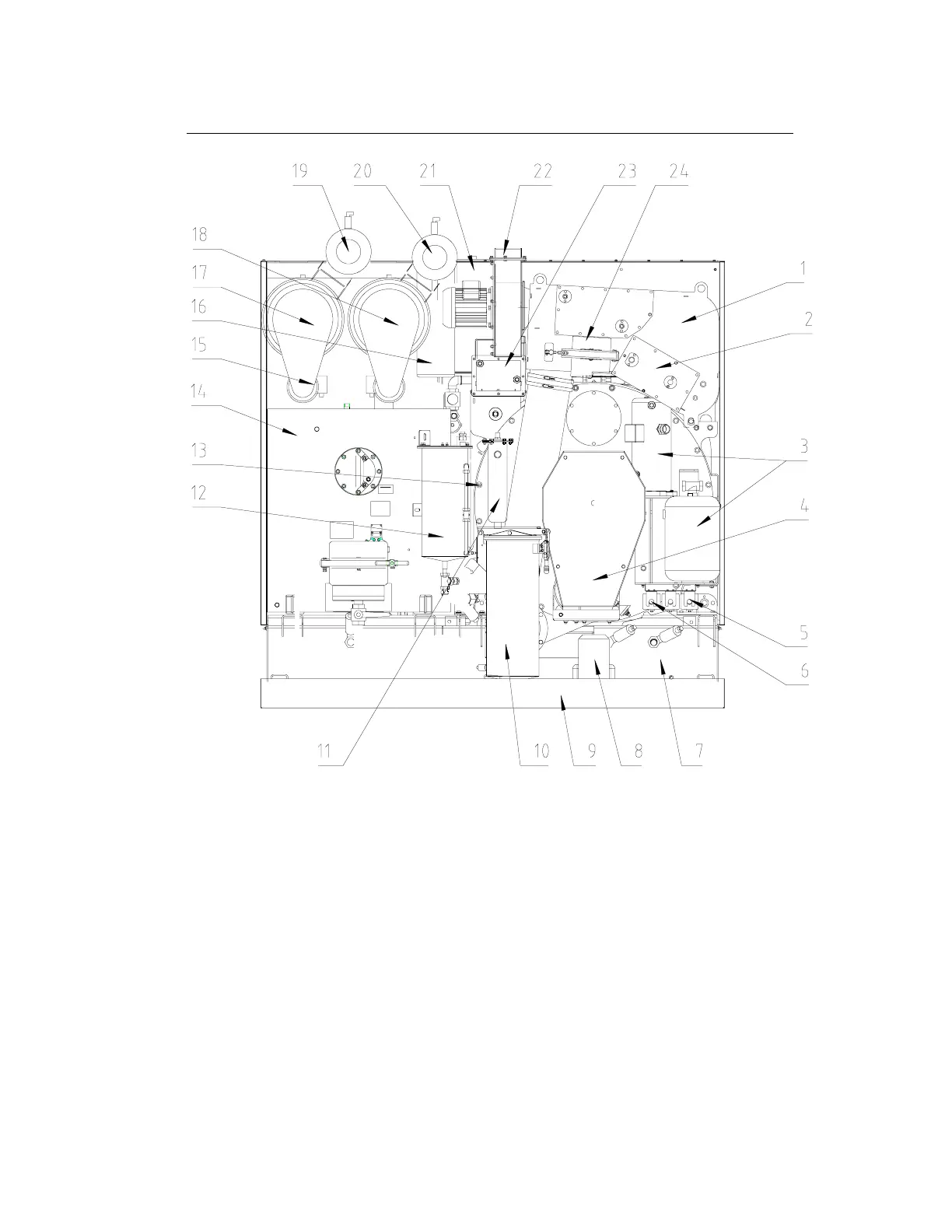

3 View of the Machine 3
707764-02-0
1 Airshaft 13 Cage housing with cage
2 Cooling register 14 Still
3 Refrigeration Unit 15 Filter drive
4 Cage drive 16 Capacitor
5 Dosing unit 17 Economy filter 1
6 Sprayer * 18 Economy filter 2 *
7 Tanks 1, 2, 3 19 Adsorption cartridge filter 1*
8 Solvent pump 20 Adsorption cartridge filter 2*
9 Safety trough 21 Venting and aeration filter
10 Button trap with lint filter 22 Fan
11 Solvent cooling system 23 Heater battery
12 Water separator 24 Lint post-filter
*Option
