22
M21/M26/M30
22
6.1 Machine Trough 6.1
The machine trough is a permanently integrated component of the machine.
Collecting capacity: M21 377 l (99.5 US gal)
M26 410 l (108 US gal)
M30 437 l (115.4 US gal)
Material: St1203 /1.0330.03 /3 mm (.1 in)
painted active primer
6.2 Anchoring Methods 6.2

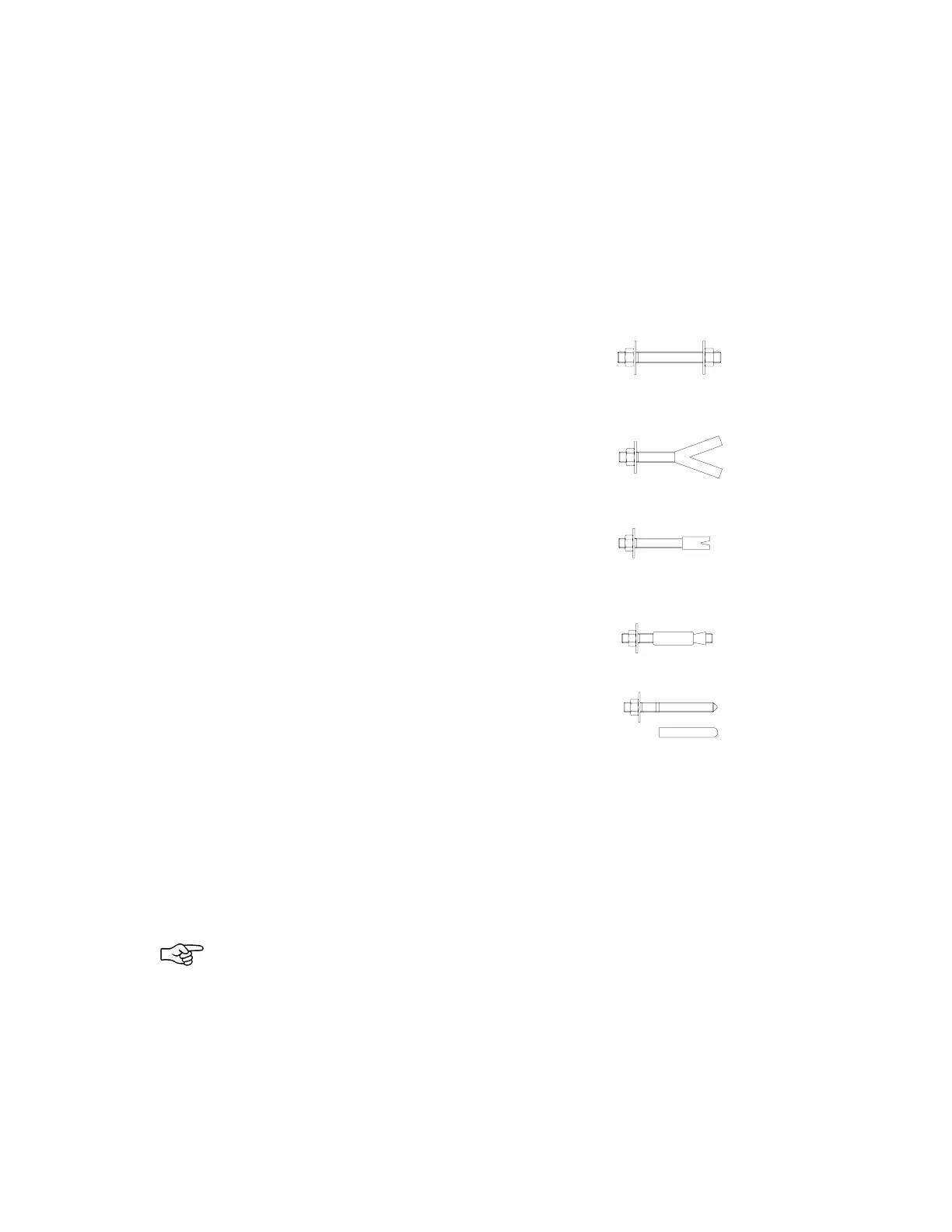

Alternatively, you can also use the following anchoring methods for fixing the machine in place:
For ceiling installation:
- Through bolts (threaded rod)
with washers and M16 nuts.
For foundation installation:
- Stone bolts (length 300 mm/11.8 in) for cementing into
recessed or morticed holes (The bolts are not permitted
to be longer than the thickness of the foundation)
or
- Heavy-duty plug with threaded rod
for deeper bore holes
or
- Safety expansion anchor for use in bored holes
or
- Adhesive plugs/shear connectors.
703871-25-0
Thread for all anchoring methods: M16
Quality: Property class 8.8 - DIN 267
The fixing nuts must be self-locking, with quality conforming to DIN 985.
We will not accept any liability for damages that result from the failure to comply with our
recommendations and information.
Attention:
Pay attention to the floor load of the machine floor space.
The bore holes must be deep enough to ensure that the plug stretches in the
concrete.
The usable plug length must be at least 184 mm (7.2 in)
M16
