M21/M26/M30
10
4 Transport 4
In order to guarantee that no damages result from the handling, we recommend that you
consult with the appropriate experts for correct transport, installation and connection.
You must provide suitable tools and equipment for unloading, transporting, machine entry
and installation. For example: crane, forklift, elevating truck, pulley block, rope, winch, crowbar,
rollers, wooden block, wedges.
Caution
Attention: Note the center of gravity of the machine and secure
against lateral tipping.
4.1 Entry 4.1
Normally the machine is packed in a crate or shipping box and kept in an upright position
when being transported and brought in.
Package dimensions (box measurements)
Machine with distillation
M21 M26 M30
Width mm (in) 2330 (91.7) 2330 (91.7) 2330 (91.7)
Depth mm (in) 1650 (64.9) 1780 (70.0) 1885 (74.2)
Height mm (in) #### ### ###
Normal dimensions after unpacking (entry dimensions)
Width mm (in) 2200 (86.6) 2200 (86.6) 2200 (86.6)
Depth mm (in) 1500 (59.1) 1630 (63.0) 1735 (68.3)
Height (with cartridge filter) mm (in) 2340 (92.1) 2340 (92.1) 2340 (92.1)
Height (without cartridge filter) mm (in) 2180 (85.8) 2180 (85.8) 2180 (85.8)
Entry dimensions (without fan cover, without cartridge filter)
Height mm (in) 2130 (83.9) 2130 (83.9) 2130 (83.9)
Removing machine from the pallet:
Must be done by transport experts.
Lift the machine only at sturdy points.
Note the center of gravity of the machine and
secure against lateral tipping.

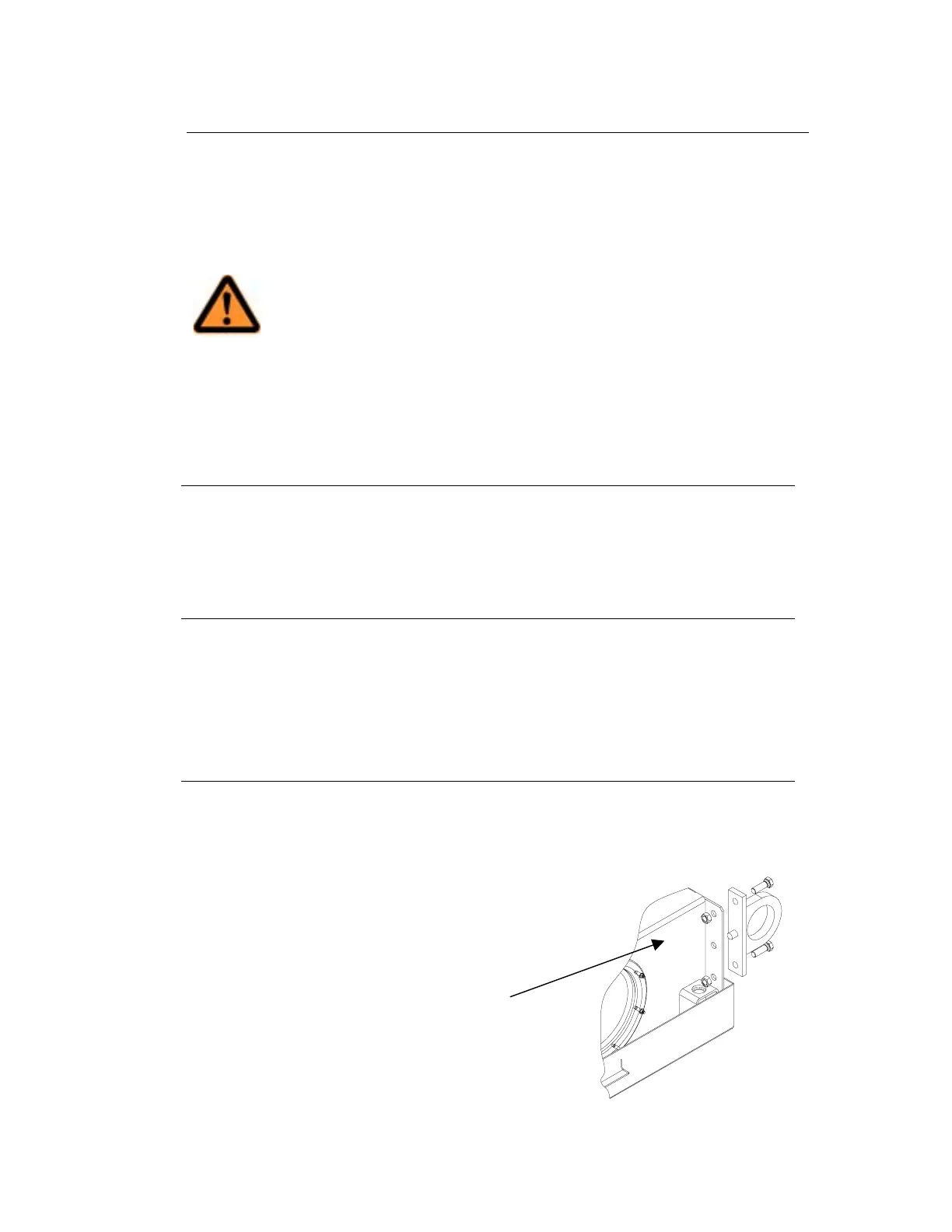

The machine is on all 4 edges equipped with
unscrew transport-eye hooks for crane- or rope
transport.
707761-18-0
