M21/M26/M30
25
6 Fixing the Machine in Place 6
6.3 Machine Installation 6.3
Select the anchoring method to suit the local conditions.
The usable plug length (1) must be at least 184 mm (7.21 in).
Work steps:
§ To level the machine, slide the slotted leveling plates (7) included with the machine between
the trough and floor.
Attention: For the legally stipulated floor clearance of the safety trough, you must
also install the supplied spacer plates (6) between the trough and floor.
§ Put the attaching plug (2) through the trough pipe (5) (only for the
safety expansion anchor)
§ Mount the washers, spring washers and nuts.
§ Tighten the nuts on the anchor evenly.

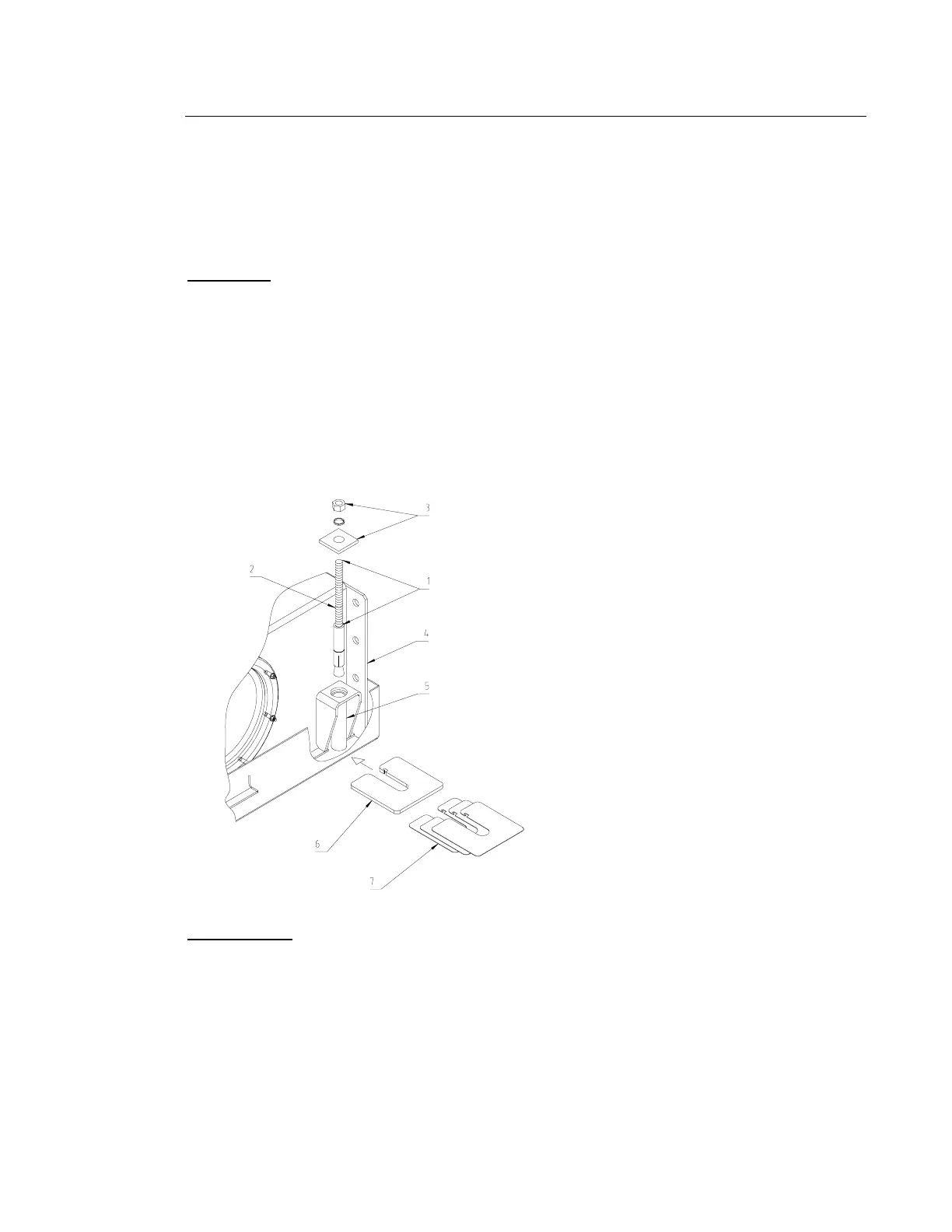

1 Usable plug length
2 Attaching plug
3 Washer, spring washer and nut
4 Tank
5 Trough pipe
6 Spacer plate
7 Leveling plates
Part numbers:
Leveling plates: 1 mm SN 709955
2 mm SN 709954
3 mm SN 709909
Spacer plates: 8 mm SN 709902
