BÖWE M21 - 7 Connection; Dimensioned Drawing of the Machine Connections

26
M21/M26/M30
26
:
;
7 Connection 7

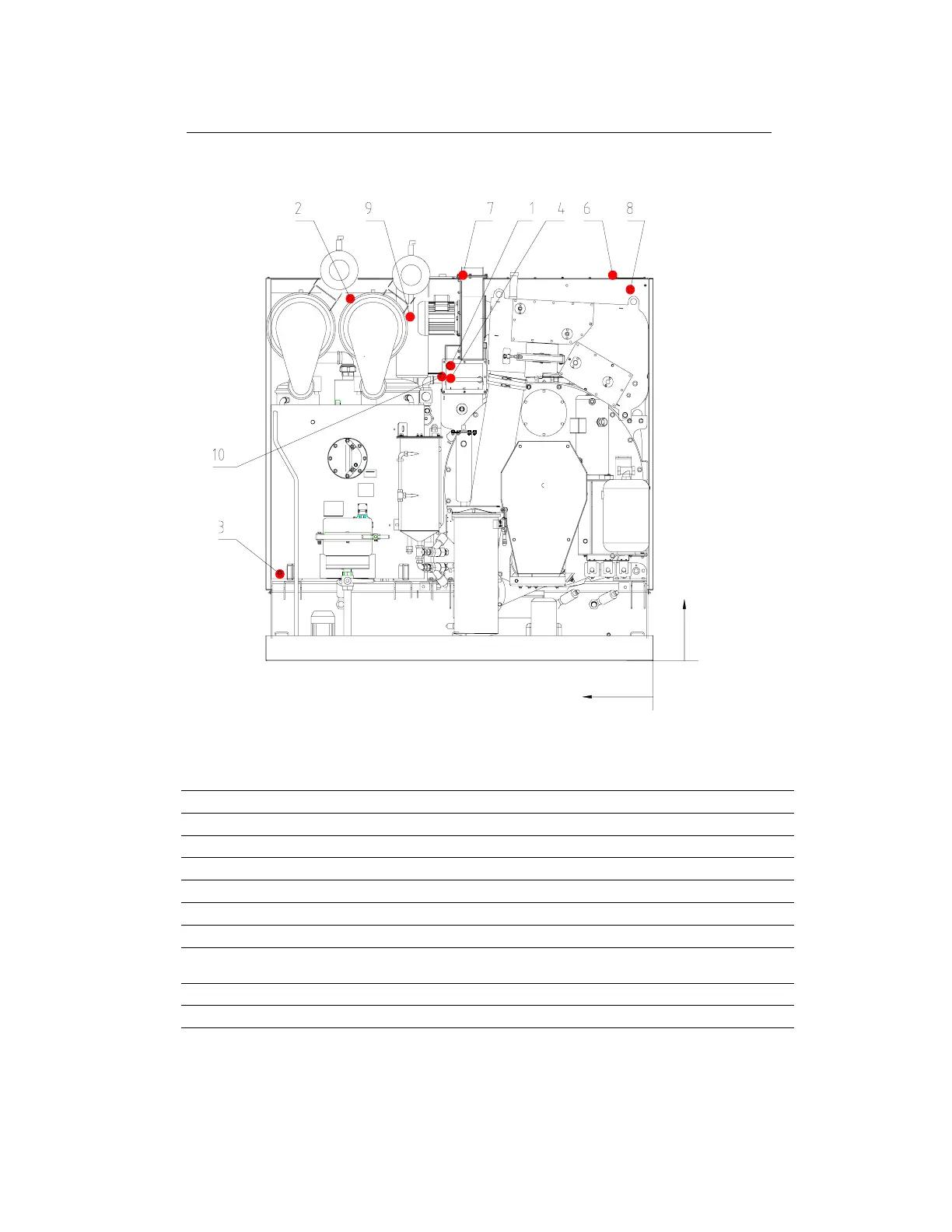

7.1 Dimensioned Drawing of the Machine Connections 7.1
707761-05-0
We reserve the right to change dimensions!
Item Medium NW
mm
Inch -X-
mm (in)
-Y-
mm (in)
1 Steam machine 15 1/2 1150 (45.3) 1630 (64.2)
2 Distillation steam 15 1/2 1720 (67.7) 2000 (78.7)
3 Distillation condensate 15 1/2 2120 (83.5) 480 (18.9)
4 Heater battery condensate 15 1/2 1150 (45.3) 1560 (61.4)
6* Cooling water inlet 20 3/4 230 (9.1) 2130 (83.9)
7 Cooling water outlet, distillation 20 3/4 1080 (42.5) 2130 (83.9)
8
Cooling water outlet,
refrigeration unit 20 3/4 130 (5.1) 2050 (80.7)
9 Compressed Air 8 1/4 1380 (54.3) 1900 (74.8)
10 Electric connection (front side) - - 1200 (47.2) 1570 (61.8)
* There must be a measuring potentiometer installed (on the machine) between
the machine and customer wiring system.
