29
M21/M26/M30
29
Distillation
Machine

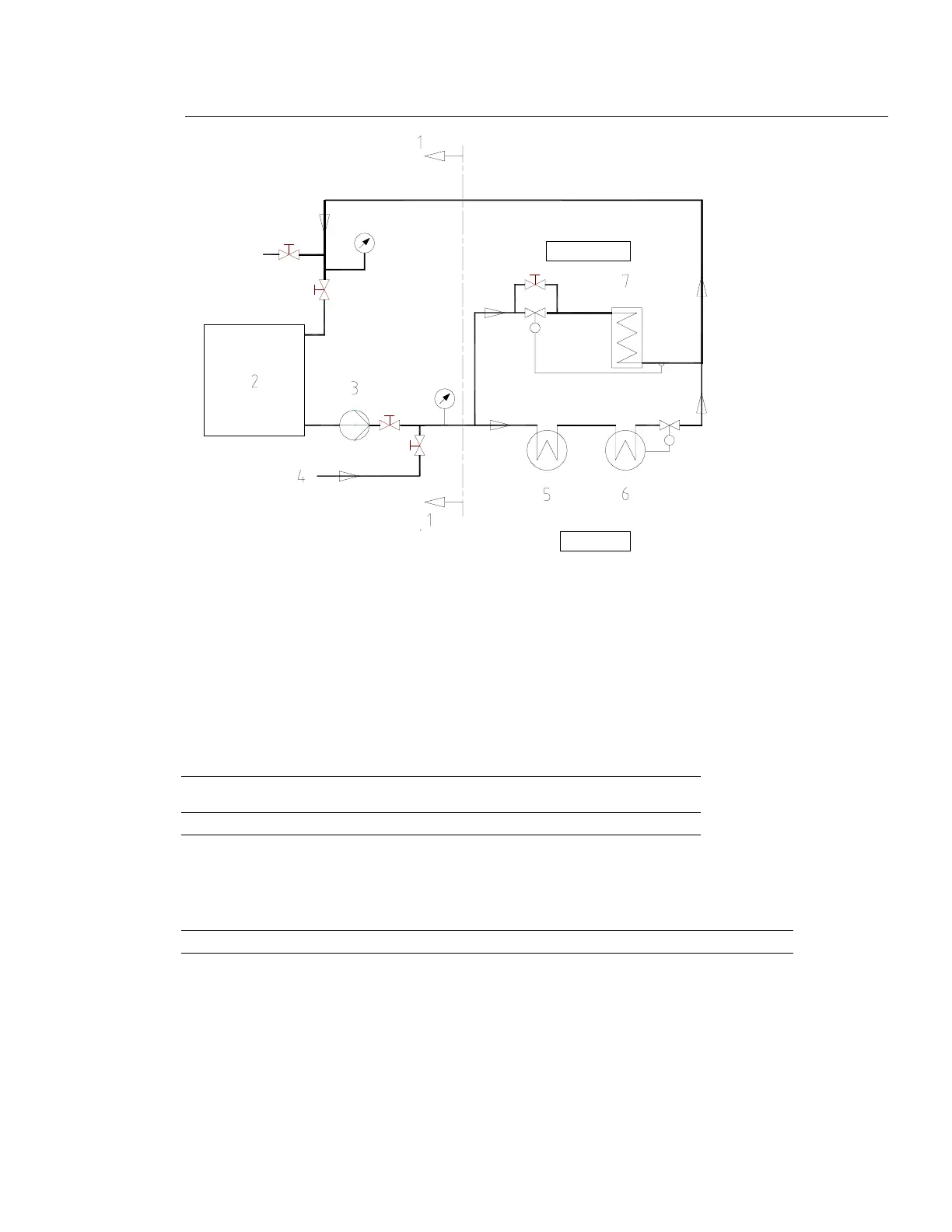

7 Connection 7
703904-16-A
1 = Customer side 6 = Refrigeration unit
2 = Cooling tower 7 = Condenser
3 = Circulation pump
4 = Mains water supply
5 = Undercooler cooling agent
Data for temperatures up to 24 °C (75.2 °F)
(Nominal width NW at least 32 mm /1 1/4“):
Pump throughput m
3
/h
(US gal/h)
3.2 *
(845) *
Pump pressure bar
(psi)
4-6
(58 - 87)
Heat to be dissipated over cooling water* :
M21 steam-heated M26 M30
kJ/cycle 41400 51100 59300
* refers to water without additives
Also refer to the separate installation and operating instructions for the rechilller.
