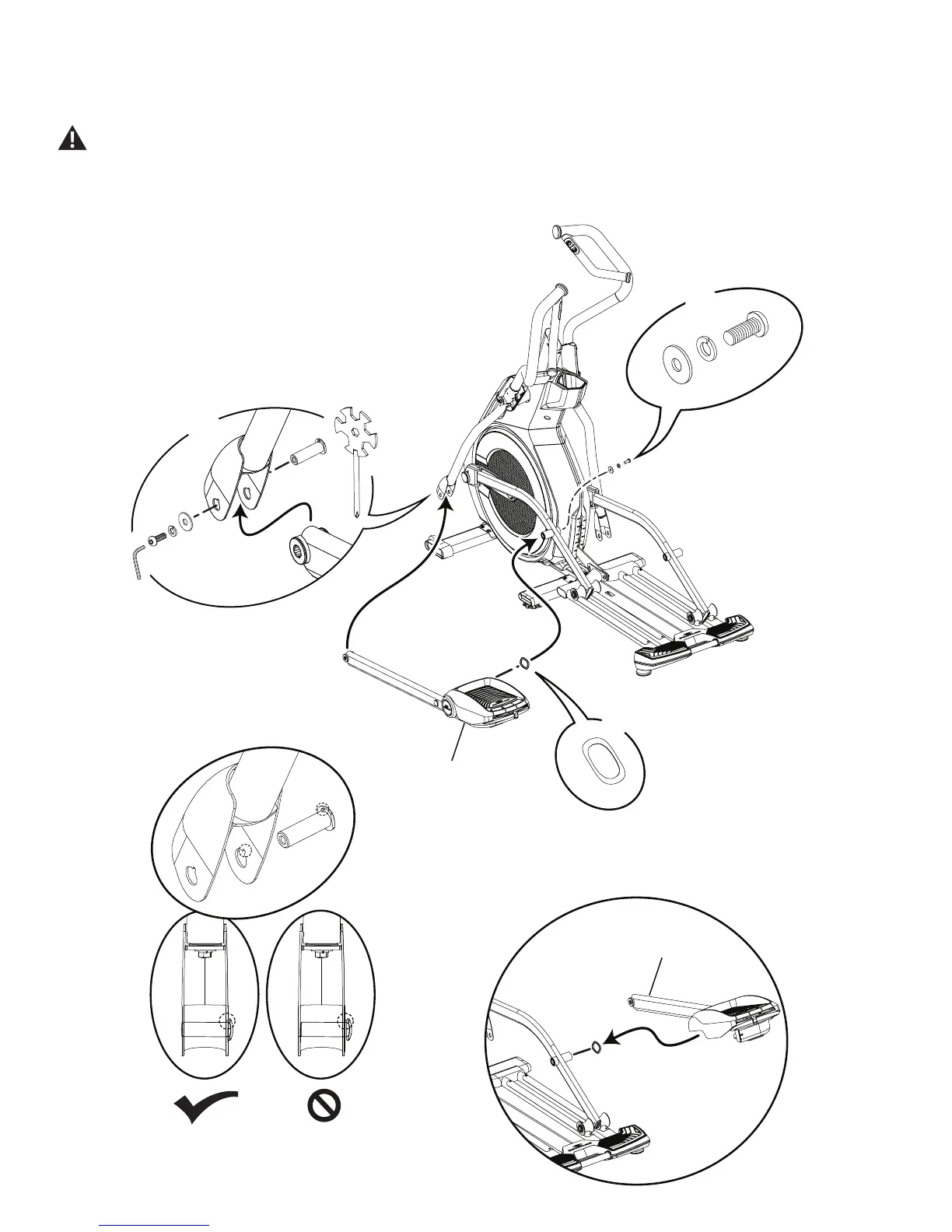

8. Attach Pedals to Frame Assembly
In order to avoid possible serious injury, when inserting the end of the Pedal into the Lower Handlebar Arm be careful to avoid
ngers or hands being caught or pinched. Be sure to stay out of the path of the Handlebars.
Note: Be sure the key on the Pivot Pin is fully set into the notch on the Lower Handlebar Arm. Slightly rotate the Pivot Pin to assist with a
proper set.
11
8
H
L
B
A
6mm
H
A
B
J
X2
X2
X2
L
