Bowflex Preacher Curl Attachment - Parts Guide

5

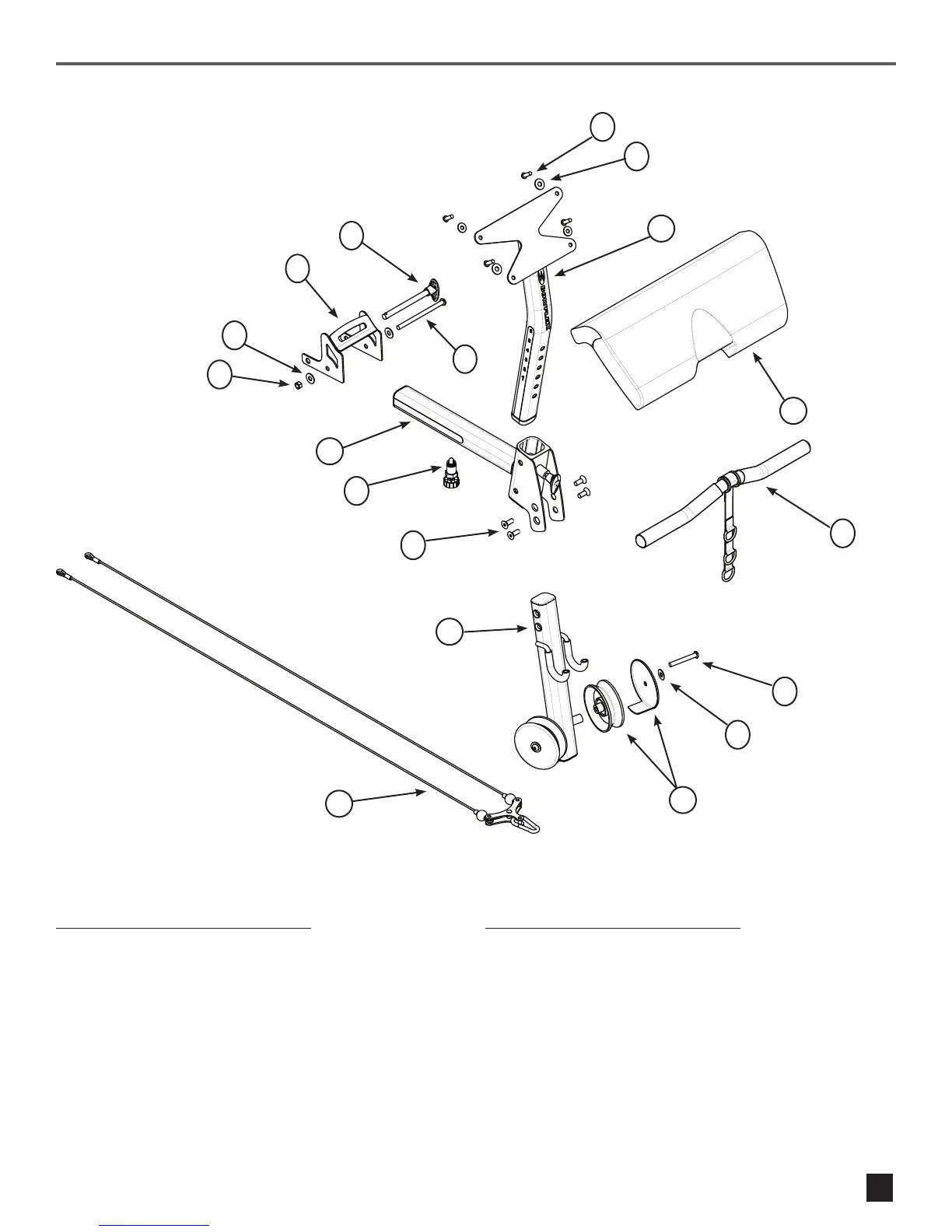

Parts Guide
Item #: Qty: Description:
1 1 FRONT ASSEMBLY
2 1 BACKBONE ASSEMBLY
3 2 V-PULLEY ASSEMBLY
4 1 CABLE ASSEMBLY
5 1 PREACHER CURL BAR
6 1 SEAT POST
7 1 PREACHER CURL PAD
8 1 SUPPORT BRACKET
9 1 SEAT LOCKING PIN
Item #: Qty: Description:
10 1 Allen Bolt 3/8” X 5-3/4”
11 4 Flathead Bolt 3/8” X 1”
12 2 Allen Bolt 3/8” X 2-3/4”
13 4 Allen Bolt 5/16” X 1”
14 4 Flat Washer 3/8”
15 4 Flat Washer 5/16”
16 1 Hex Nut 3/8”
17 1 LOCKING KNOB
1
4
6
3
7
2
17
11
12
14
10
9
14
16
8
15
13
5
