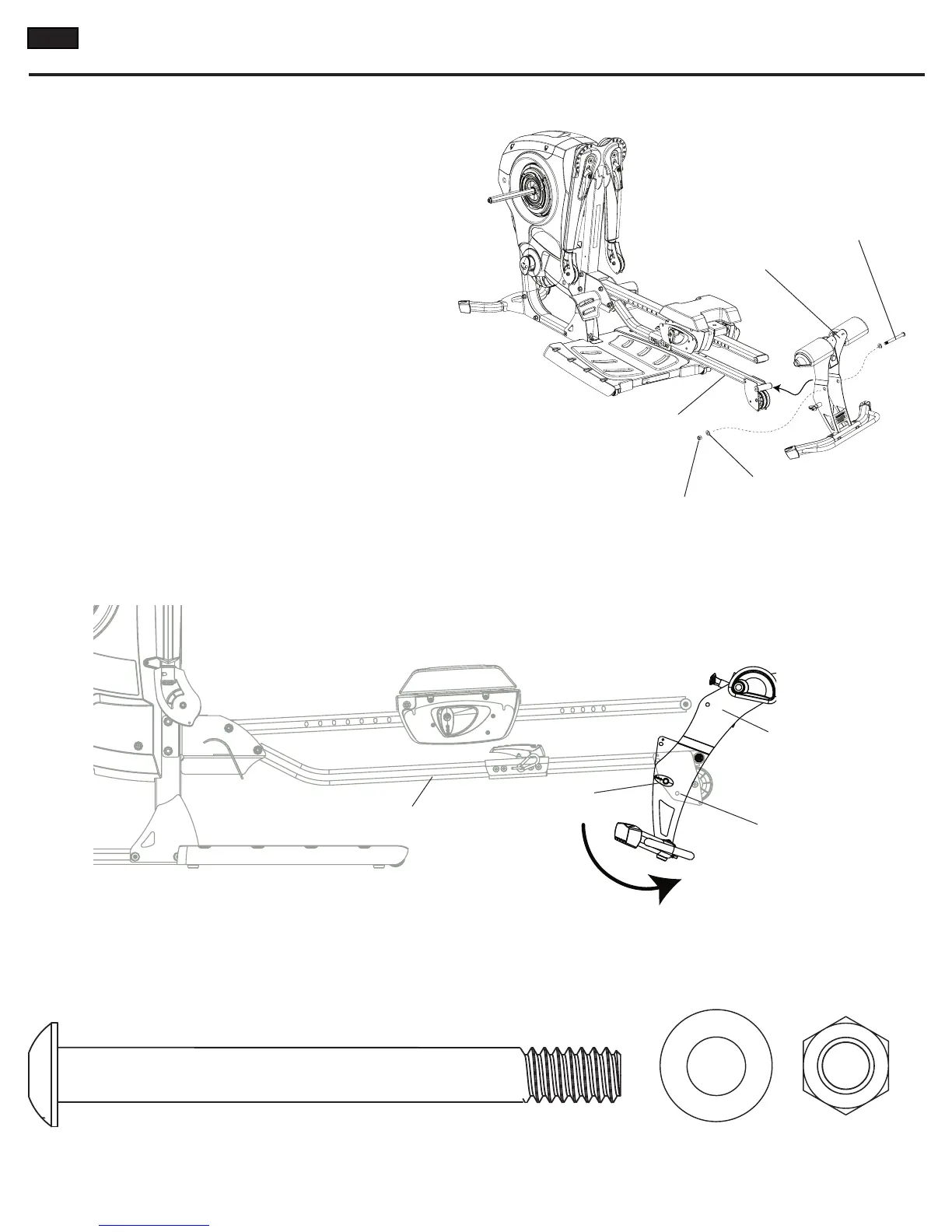

Step 13 Install Four Bar Assembly
Parts:
• Four Bar Assembly (from Step 12)
Tools:
• 5/16” Allen Wrench
• 3/4” Wrench or Adjustable Wrench
13-1 Remove the twist ties. With the Four
Bar tilted as shown in Figure B, align the
hole in the Lower Rail with the lower holes
in the Four Bar assembly.
13-2 Install but do not tighten the hardware.
13-3 Pull the Pop Pin on the Four Bar assembly and
rotate the Four Bar Assembly until the Pop Pin
locks into place in the lower hole on the Lower
Rail.
Hardware (1:1):
1 Allen Bolt (1/2” X 5”)
2 Washer (1/2”)
1 Nylock Nut (1/2”)
Four Bar Assembly
1/2”x 5” Allen Bolt
1/2” Washer
1/2” Nylock Nut
Figure A
Figure B
Lower Hole
Pop Pin
Four Bar Assembly
Lower Rail
Lower Rail
