17

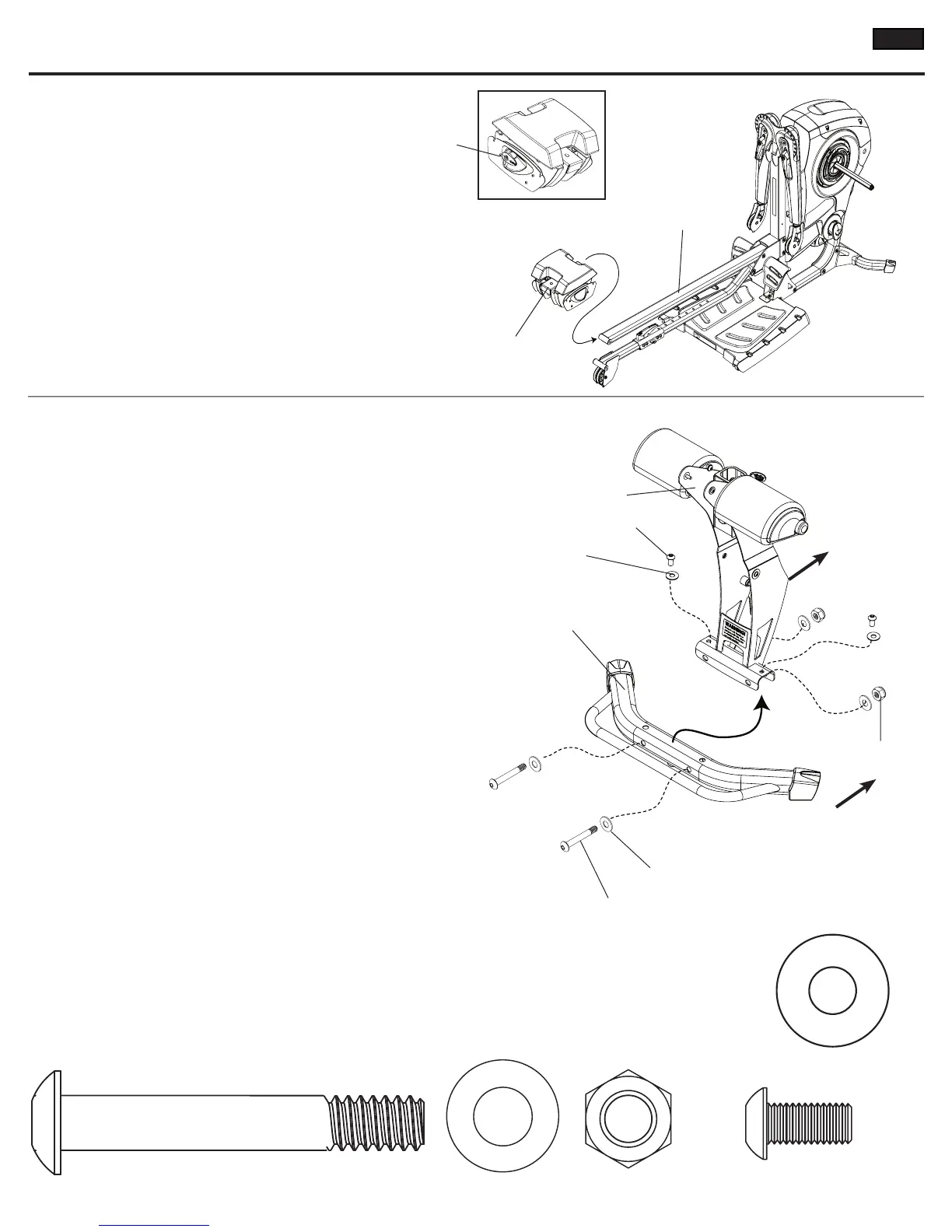

Step 11 Install Seat Assembly
Parts:
• Seat Assembly (Box 5)
11-1 Slide the Seat Assembly onto the
Seat Rail. Make sure the Pop Pin
is on the left when facing the unit as
shown.
Reverse view of Seat
Assembly
Pop Pin
Seat Rail
Seat Assembly
Step 12 Install Front Stabilizer to Four Bar Assembly
Parts:
• Four Bar (Box 4)
• Front Stabilizer (Box 4)
Tools:
• 5/16” Allen Wrench
• 3/4” Wrench or Adjustable Wrench
12-1 Place the Four Bar Assembly on the
Front Stabilizer with the Front Stabilizer feet
pointing in the same direction as the point on
the Four Bar as shown.
12-2 Install but do not tighten two
3/8”x 3/4” Allen Bolts and
two 3/8” Washers in the top holes.
12-3 Install two 1/2”x 3 1/4” Allen Bolts
and two 1/2” Washers in the side holes.
12-4 Completely tighten all of the hardware.
Hardware (1:1):
2 Allen Bolt (1/2” X 3 1/4”)
4 Washer (1/2”)
4 Washer (3/8”)
2 Nylock Nut (1/2”)
2 Allen Bolt (3/8” X 3/4”)
Four Bar Assembly
Front Stabilizer
Feet Point in this
direction
Point on Four Bar
this direction
1/2”x 3 1/4 Allen Bolt
1/2” Washer
1/2” Nylock Nut
3/8” Washer
3/8” Allen Bolt
