Ensure the locking tabs of the Shroud bracket are seated inside the
pockets (selection lip) of the back Weight Plate (Figure 2b). The plate
surfaces should be parallel, and lean on the Shroud bracket and base.
3. Place the Barbell (handle assembly with adapter plates) into the Base.
The pockets of the adapter plates must be thoroughly seated onto the
tabs of the Weight Plates on the Base. If any interference is found, adjust
the distance between the Base Shrouds.
Repeat this step using the Curlbar.
4. After the initial adjustment,fullytightentheexposedscrewsforoneof
theBaseShrouds(indicated).Thenfullytightentheexposedscrewsfor
the other Base Shroud.

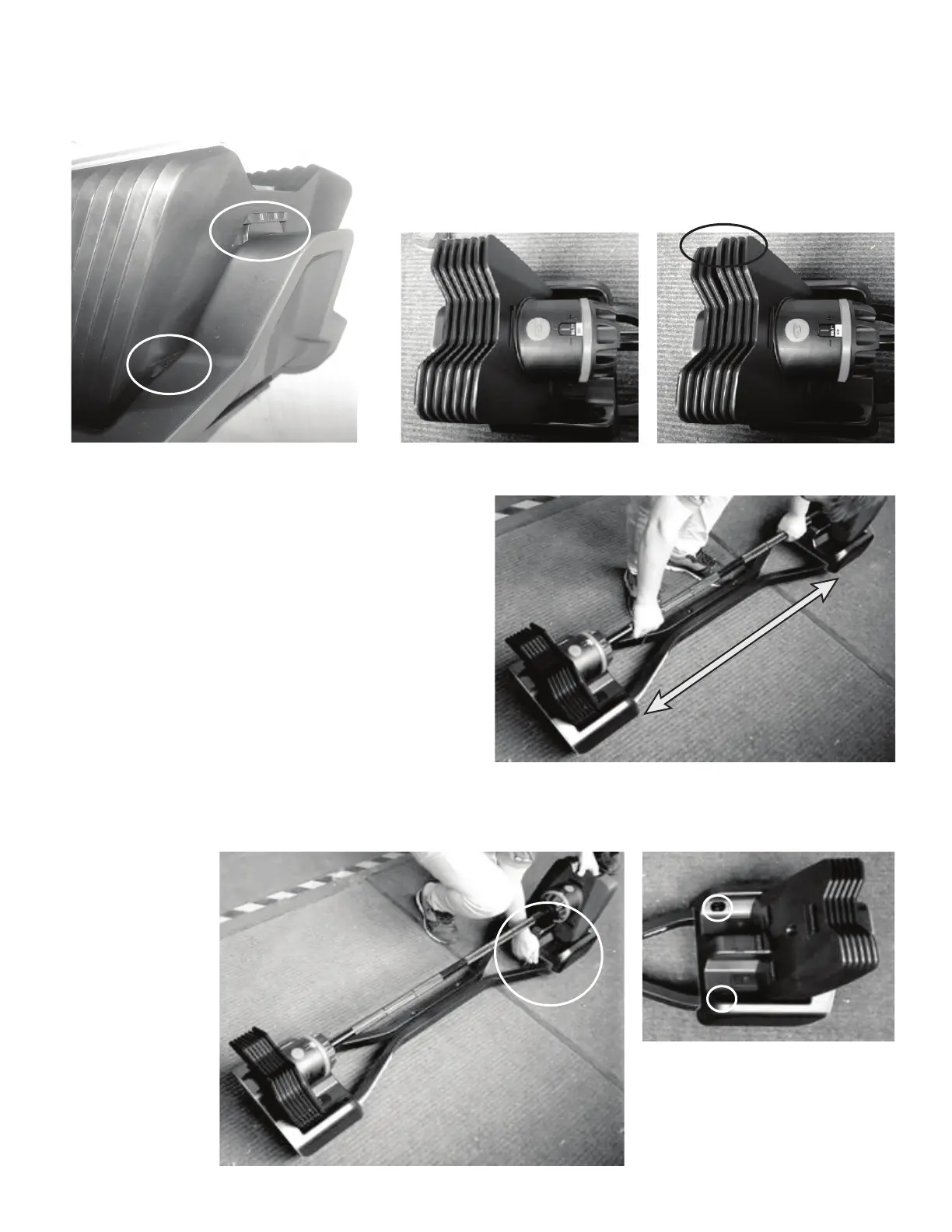

Figure 2b
Plates correctly aligned Plates misaligned
