Bowflex SelectTech 2080 - Hardware; Tools; Assembly; Hardware and Tools; Assembly Instructions

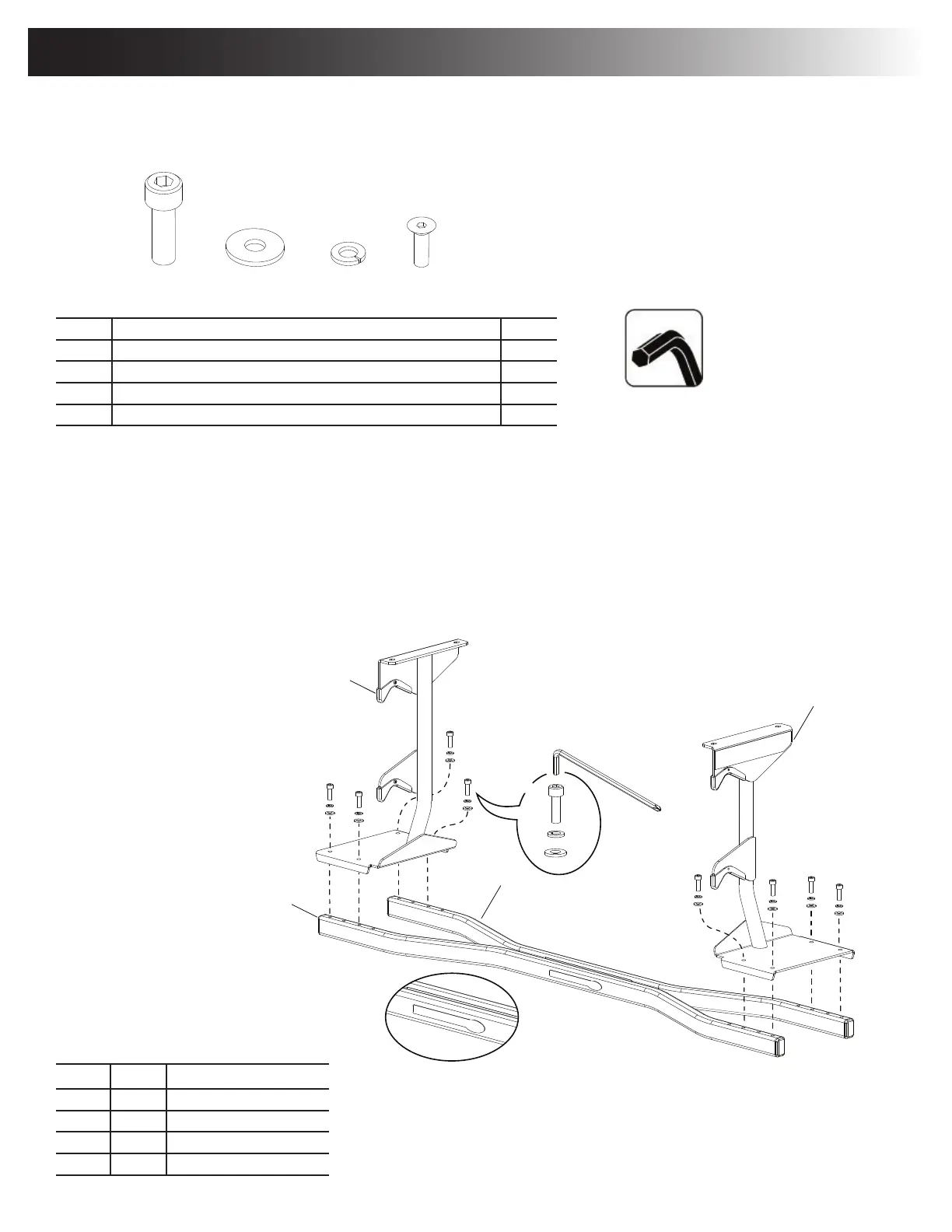

Step 1.
Note: Hardware for this step is on the 2080 Barbell with Curl Bar hardware card, not the 2080 Stand hardware card. Be sure to attach the Uprights to the bottom of the tubes so that
the Bowex
™
label (8a) will be right side up after assembly. Hand tighten all screws, then fully tighten.
B
C
A
X8
6mm
8
9
3
2
8a
Assembly —
Note: This procedure provides instructions for assembly of the Stand and the Barbell with Curl Bar together.
Item Description Qty
A Socket Head Cap Screw M8 X 25 16
B Flat Washer M8 8
C Spring Lock Washer M8 8
D Flat Head Socket Cap Screw M5 X 16 16
Included
3 mm
6 mm
Tools
Hardware — Barbell with Curlbar set
Hardware / Tools / Assembly
Item Qty Description
2 1 Upright Assembly, Right
3 1 Upright Assembly, Left
8 1 Base Tube, Front
9 1 Base Tube, Rear
B
C D
A
Assembly / Owner’s Manual
6
