Assembly Manual
Assembly
Figure 2-1
Step 2: Connect the Speed and Step Wires
(TC3000 and TC5000 only)
Parts:
• TreadClimber
®
Base and Treadle assembly from Step 1

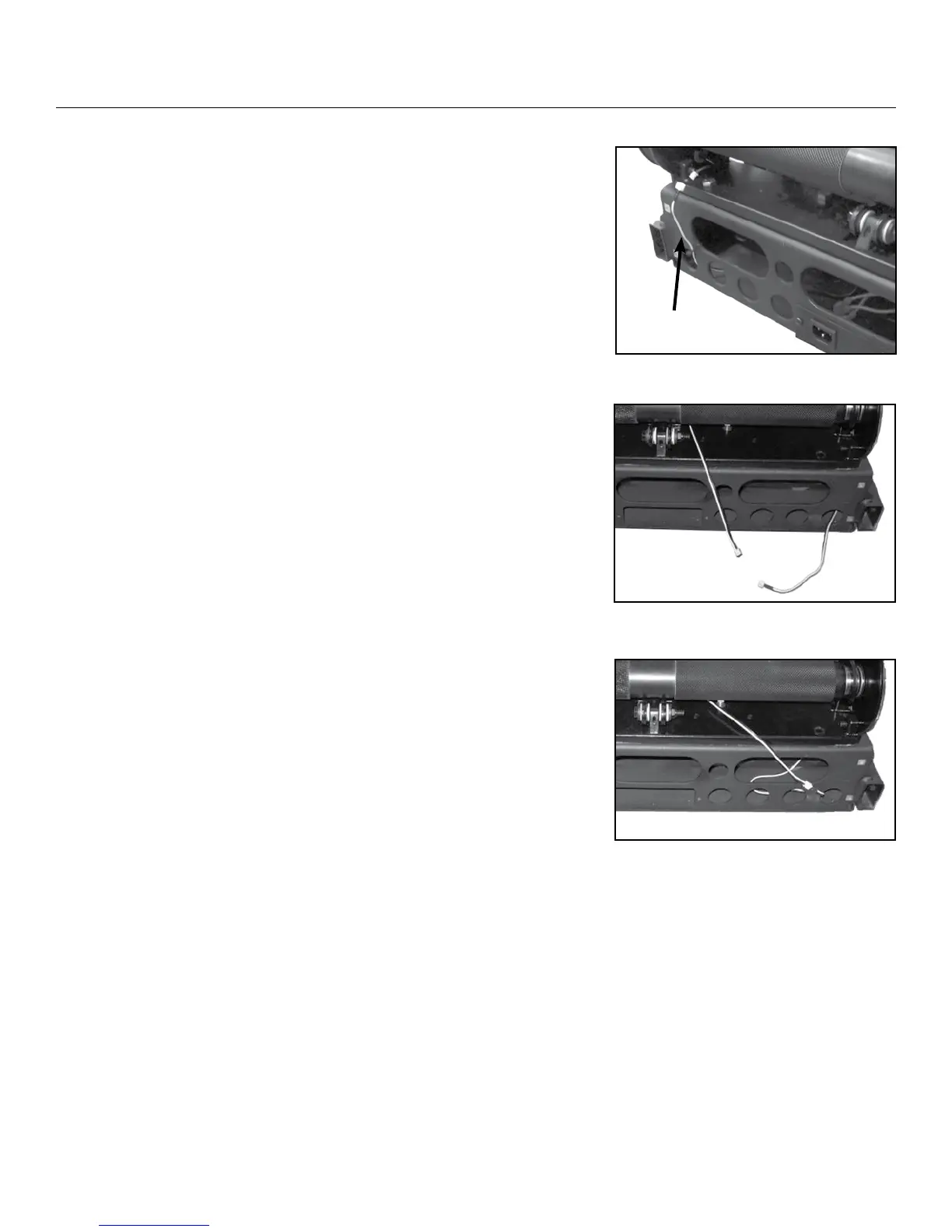

2-1 Connect the Speed Wires (See Figure 2-1).
2-2 Connect the Step Wires (See Figure 2-2). Push any excess
wire through holes in frame (See Figure 2-3).
Note: The TC1000 is not equipped with step sensor function. Tuck
unused step sensor wires through hole in frame.
Figure 2-2
Speed Wire
Figure 2-3
To Next Page
