14
Assembly Manual
Assembly

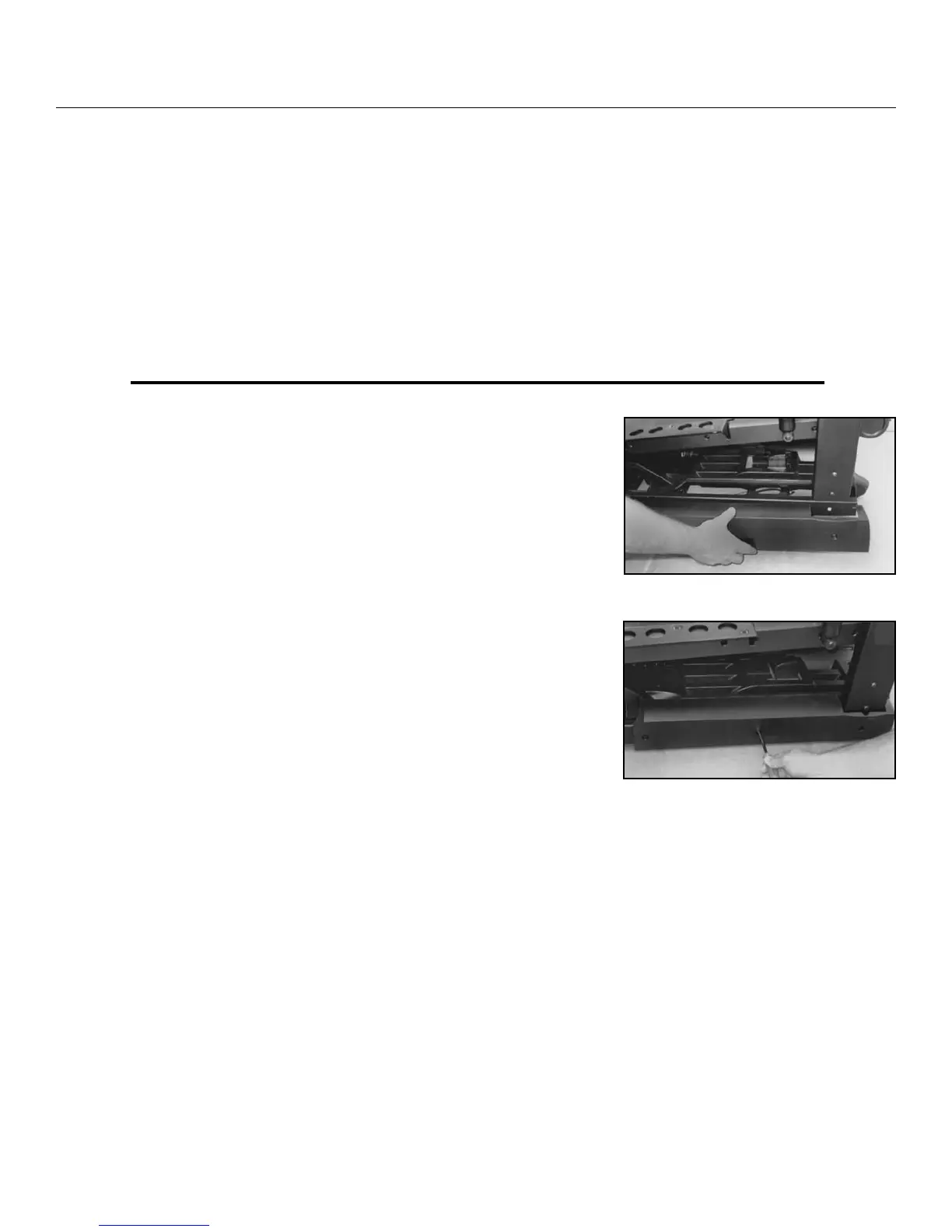

Figure 11-1
Figure 11-2
Step 11: Attach the Frame Covers
Parts:
• TreadClimber
®
Base and Treadle assembly from Step 10
• (1) Left Plastic Frame Cover
• (1) Right Plastic Frame Cover
Hardware:
• (6) #10 Phillips Head Screws
Tools:
• #2 Phillips Head Screwdriver (included)
11-1 Attach the left and right Plastic Frame Covers to the sides
of the base frame with (6) #10 Phillips Head Screws (3 per
side) and the provided #2 Phillips screwdriver (See Figures
11-1 and 11-2).
Step 10: Inspect the Assembly
10-1 Remove the plastic film from the console face.
10-2 Inspect all of the attachments and securely tighten all of
the bolts before proceeding to Step 11.
