Bowflex Ultimate 51370 - Leg Assembly

A-13
Bowflex
®
Ultimate
™

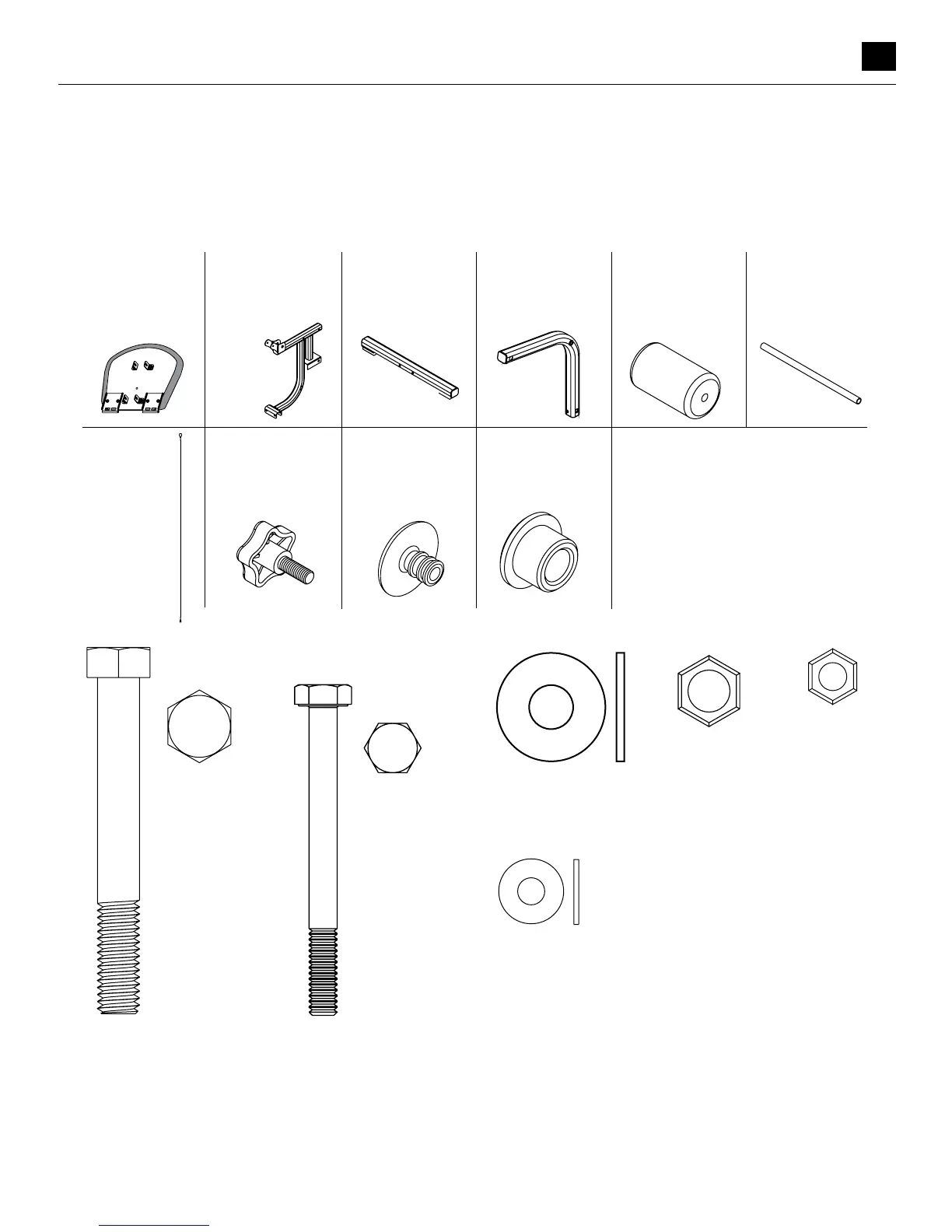

Leg Assembly Parts Reference Guide
16
Item #: 61
Qty.: 1
Descr: Leg
Extension
Seat Assembl
y
Item #: 63
Qty.: 1
Descr: Leg
Extension Foot Tube
Item #: 68
Qty.: 2
Descr: 1” Small
Knob
Item #: 69
Qty.: 6
Descr: 3/4” End Cap
Item #: 70
Qty.: 2
Descr: Pivot
Bushing
Item #: 64
Qty.: 1
Descr: Leg
Extension
Pivot Tube
Item #: 65
Qty.: 6
Descr: Leg
Extension Roller
Item #: 67
Qty.: 2
Descr: Leg Ext.
Cable
Length: 73.50”
Item #: 62
Qty.: 1
Descr:
Leg Ext.
Main Frame
Item #: 66
Qty.: 3
Descr: Leg
Extension
Chrome Tube
Item #: 51
Qty.: 3
Descr: 3/8” X 3”
Bolt
Item #: 54
Qty.: 6
Descr: 3/8” Washer
Item #: 57
Qty.: 3
Descr: 3/8”
Nylon Lock
Nut
Item #: 72
Qty.: 2
Descr: 1/4”
Nylon Lock
Nut
Item #: 55
Qty.: 4
Descr: 1/4”
Washer
Item #: 71
Qty.: 2
Descr: 1/4” X 2-3/4”
Bolt
Leg Assembly
The Leg Assembly is an optional attachment which, depending on the machine you ordered, may or may not be
part of your Bowflex
®
.
Specifications subject to change without notice.
