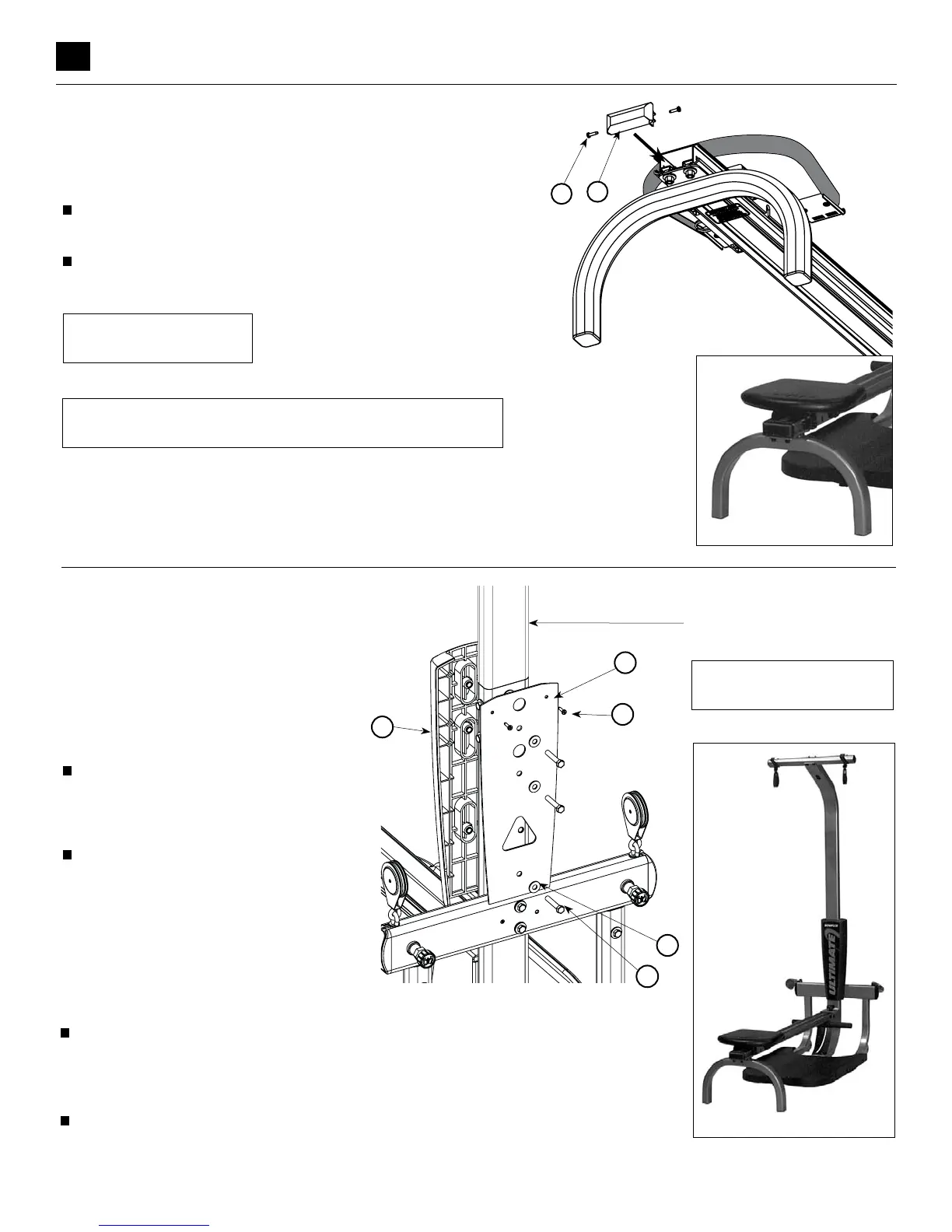

Step 9: RAIL END CAP INSTALLATION
Locate the following parts for this step:
• Rail End Cap (Item #58)
• Two (2) #10X3/4” self tapping screw (Item #44)
Place the end cap (Item #58) on the end of the rail with arrow
inside end cap facing up.
Secure the end cap to the end of the rail using two (2)
#10X3/4” self tapping screws (Item #44) shown in Figure J.
Figure J
58
Unit appears like
this following this
assembly step
Components for this
step are in Box 4
44
Step 10: INCLINE BENCH REST INSTALLATION
Locate the following parts for this step:
• Incline bench rest (Item #21)
• Incline bench rest back (Item #22)
• Three (3) 3/8”X2” bolts (Item #48)
• Three (3) 3/8” washers (Item #54)
• Two (2) #10X3/4” self tapping screws
(Item #44)
Match up the oval bosses on the
incline seat rest (Item #21) with the
oval cutouts in the lower lat tower
(Item #1) as shown in Figure K.
Place the incline bench rest back
(Item #22) on the rear of the lower
lat tower (Item #1) and match up
the three holes for the 3/8” bolts
as shown in Figure K.
Note: Make sure the textured, non-
machined side of the incline rest back
faces outward away from the machine.
22
21
44
54
48
Figure K
Unit appears like
this following this
assembly step
(shown with
optional lat
tower)
Components for this
step are in Box 4
If your unit came with a lat attachment, skip
now to lat instructions: Step 1 Page 14.
optional lat tower
Assembling Your Bowflex
®
Ultimate
™
Slide the three (3) 3/8”X2” bolts (Item #48) into the three holes in the
incline bench rest back (Item #22) through the lower lat tower (Item #1)
and into the incline seat rest (Item #21) as shown in Figure K. Securely
tighten these three bolts.
Screw the two (2) #10X3/4” (Item #44) screws into the incline bench rest
back (Item #22) as shown in Figure K.
