Bowflex Xtreme - Step 15 Install Upper Lat Tower Assembly

11
Assembly Guide
Step 15 Install Upper Lat Tower Assembly
Parts:
• Upper Lat Tower Assembly
• Main Assembly
Hardware (1:1):
• 6 Button Head Screws (3/8" X 3/4")
• 6 Washers (3/8")
Tool:
7/32" Hex Wrench

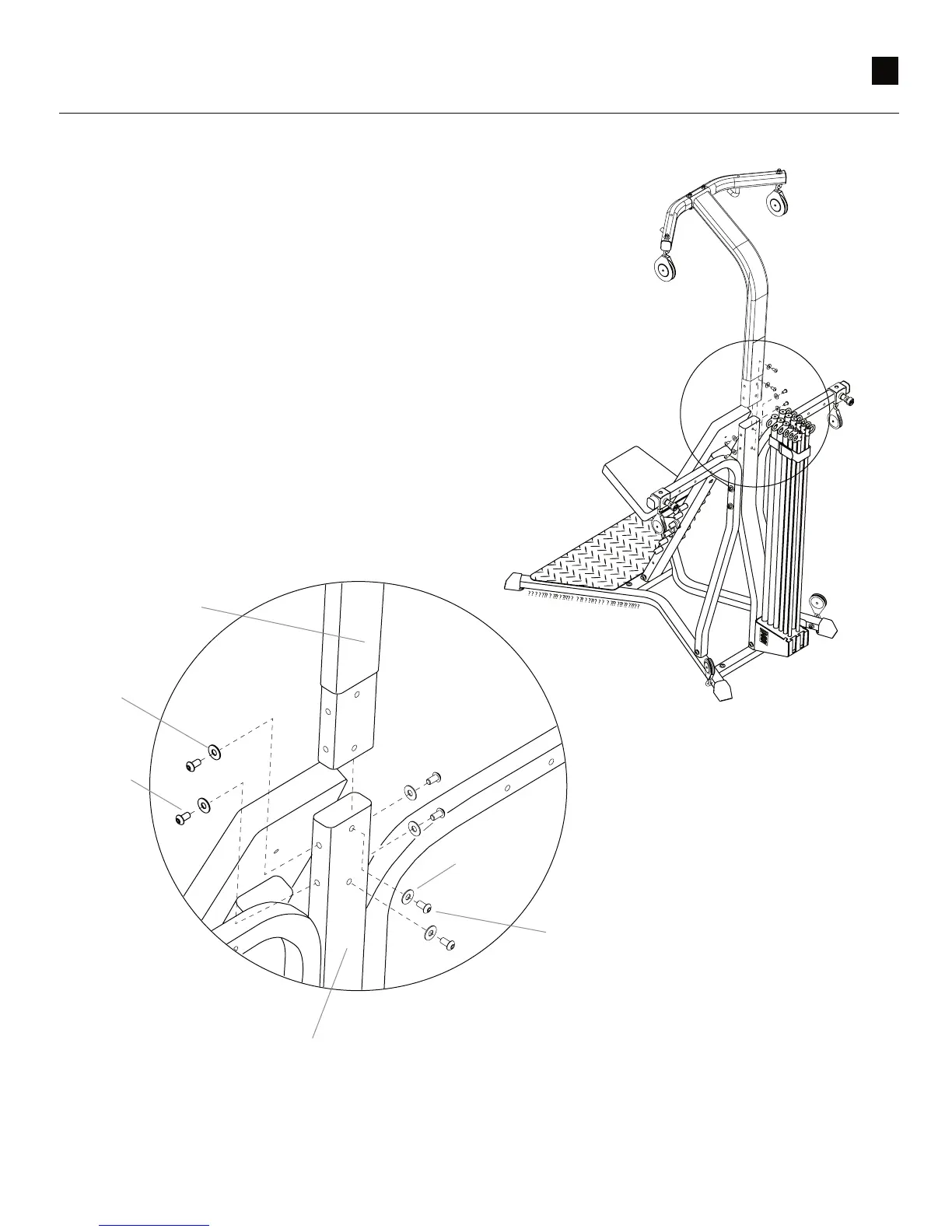

15-1 Position the Upper Lat Tower Assembly
over th
e Lower Lat Tower Assembly.
15-2
Slide the Upper Lat Tower onto the
Lower Lat Tower and secure with screws
an
d washers as shown.
Rods not shown
for clarit
y
Upper Lat Tower
Button Head
Screws
Flat
Washer
s
Flat
Washer
s
Button Head
Screws
Lower Lat Tower
TIGHTEN HARDWARE
Carefully go over the entire Bowfle
x
Xtreme
™
home gym and tighten all
hardware befo
re using.
