Bradley LD-3010 - Rough-Ins for OmniDeck with SL-TR1 Rectangular Undermount Bowl

LD-3010 Series Installation
8 2/27/2020 Bradley • 215-1219 Rev. Q: ECO 19-08-037B
1b

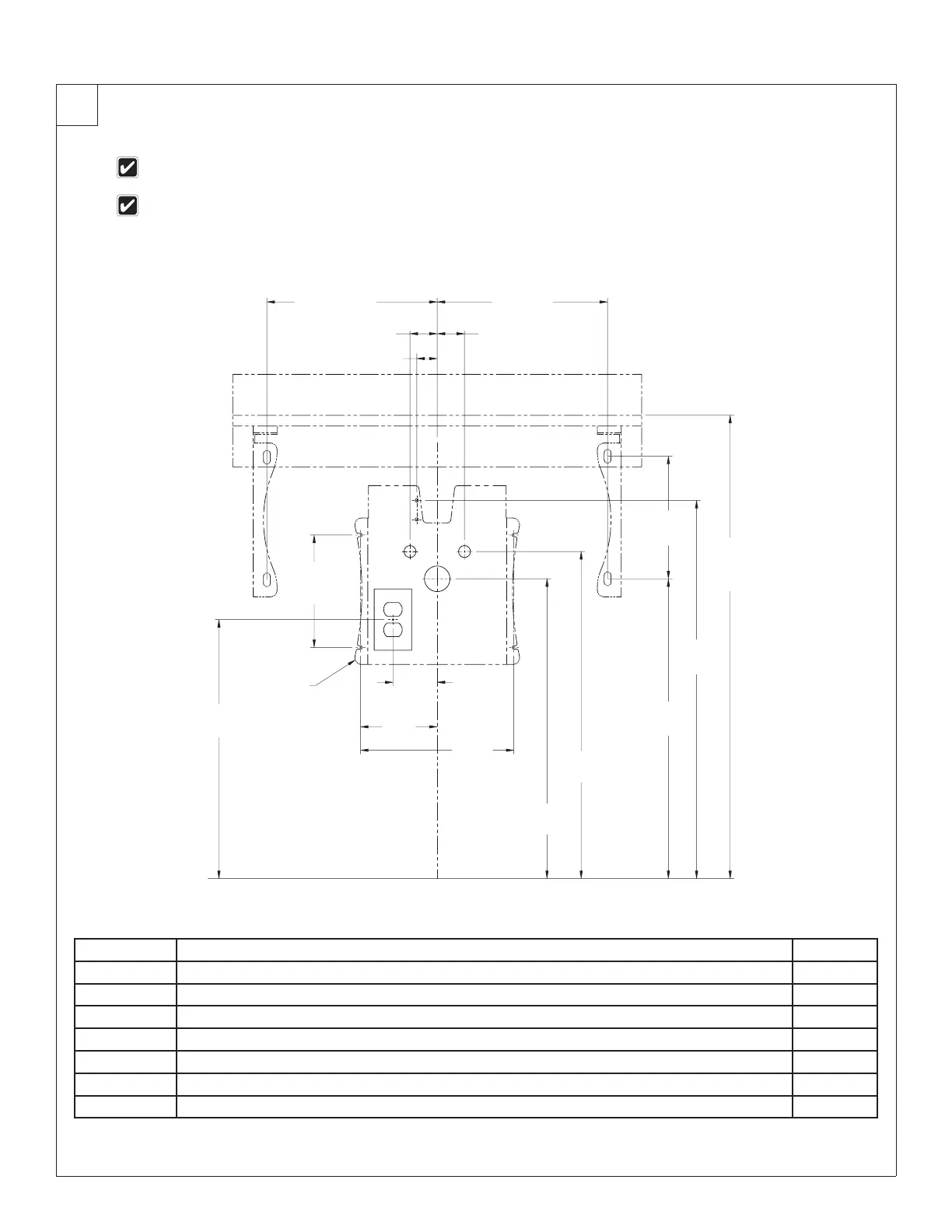

Rough-Ins for OmniDeck with SL-TR1 Rectangular Undermount Bowl
Typical OmniDeck rough-ins for single SL-TR1 rectangular bowl are shown. Other multiple-bowl rough-ins are similar.
For juvenile height mounting, the mounting height dimension from the deck surface to the finished floor is 31" (787)
maximum. Adjust all other mounting locations accordingly.
Code Description Qty.
A1
3
⁄8" Anchors with a Minimum Pull-Out Force of 1,000 lb (reinforce wall at anchor points) 2 per bracket
A2 Square Washers (provided) 2 per bracket
B #10 Wall Anchors and Screws 4
H, C ½" Nominal Copper Tubing for Hot/Cold Supplies, Stub-Out 2" (51) From Finished Wall 2
D AC Option Only: 110V GFI Protected Electrical Outlet 1
E 1½" NPT Drain, Stub-Out 2" (51) From Wall 1
F TMA Option Only: #10 Wall Anchors and Screws 2
Variable
Finished Floor
Variable
1½" (38)
2" (51)
2" (51)
27¾"
(705)
22"
(559)
24"
(610)
9"
(229)
22"
(559)
19"
(483)
8¼"
(210) ref.
5⁵⁄₈"
(143)
Access
Panel
34" (864)
deck surface
maximum
ADA
3¼"
(83)
H C
D
E
A1
A2
A1
A2
F
F
B
11¼"
(286)
A1
A2
A1
A2
B
B B
(mm)
