Bradley LD-3010 - Rough-Ins for OmniDeck with HS-Series Bowl

Installation LD-3010 Series
Bradley • 215-1219 Rev. Q: ECO 19-08-037B 2/27/2020 9
1c

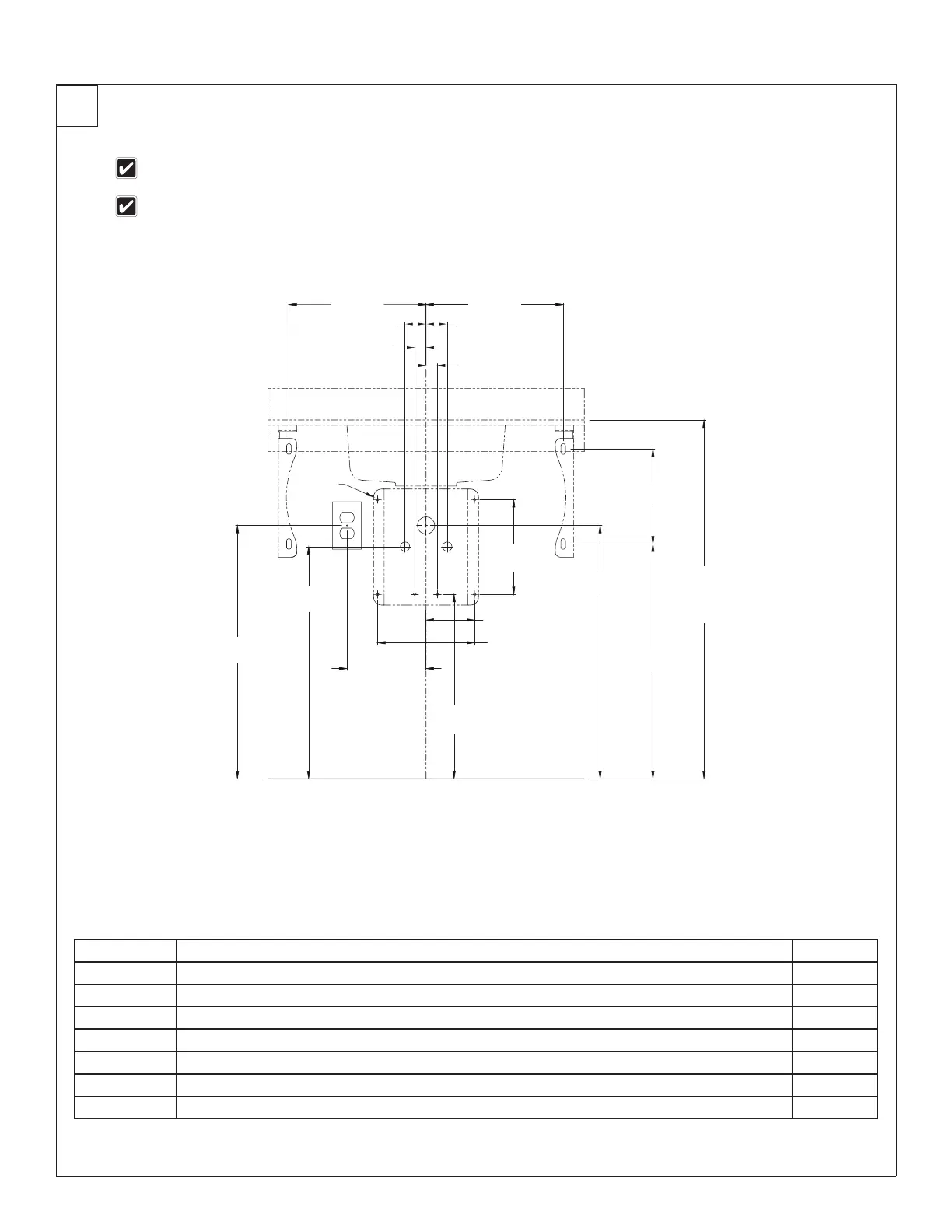

Rough-Ins for OmniDeck with HS-Series Bowl
Typical OmniDeck rough-ins for single HS-Series bowl are shown. Other multiple-bowl rough-ins are similar.
For juvenile height mounting, the mounting height dimension from the deck surface to the finished floor is 31" (787)
maximum. Adjust all other mounting locations accordingly.
Code Description Qty.
A1
3
⁄8" Anchors with a Minimum Pull-Out Force of 1,000 lb (reinforce wall at anchor points) 2 per bracket
A2 Square Washers (provided) 2 per bracket
B #10 Wall Anchors and Screws 4
H, C ½" Nominal Copper Tubing for Hot/Cold Supplies, Stub-Out 2" (51) From Finished Wall 2
D AC Option Only: 110V GFI Protected Electrical Outlet 1
E 1½" NPT Drain, Stub-Out 2" (51) From Wall 1
F TMA Option Only: #10 Wall Anchors and Screws 2
Finished Floor
Variable
1¹⁄₈" (27)
2" (51)2" (51)
24"
(610)
22"
(559)
4⁵⁄₈"
(117)
9"
(229)
22"
(559)
24"
(610)
17½"
(444)
Access
Panel
34" (864)
deck surface
maximum
ADA
7½"
(191)
H
C
D
E
A1
A2
A1
A2
A1
A2
A1
A2
F F
B
9"
(229)
B
B B
Variable
1¹⁄₈" (27)
9¼"
(233)
(mm)
