Brady BBP12 User Manual

BPP12 User Manual
19
6. Move the media guides to fit the label width by turning the guide adjuster knob.
7. Disengage the top cover support and close the top cover gently.
8. Use the Diagnostic Tool or LCD menu to set the media sensor type and calibrate
the selected sensor .
a. Start Diagnostic tool.
b. Select sensor on Calibration tab.
c. Click Calibrate button.

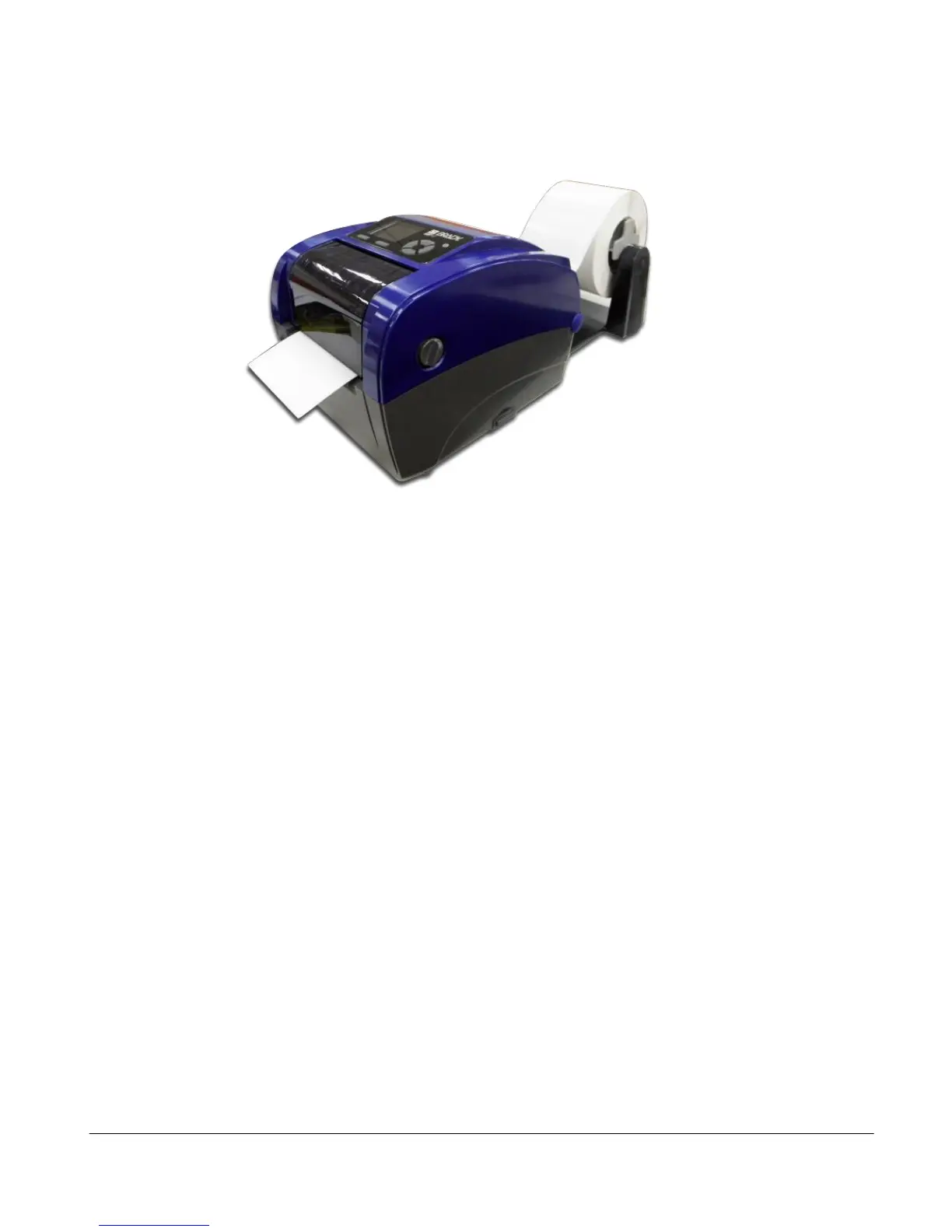

Brady BBP12 Specifications

General

Color	No
Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	- mm
Maximum printing width	105.4 mm
Display	LCD
Color display	Yes
Product color	Black, Blue
Tape type	D2
Flash memory	128 MB
Internal memory	64 MB
Wi-Fi	-
Optional connectivity	Serial (RS-232), USB 2.0
Connectivity technology	Wired
Maximum label width	111.76 mm
Quantity per pack	- pc(s)
Cables included	USB
Operating temperature (T-T)	5 - 40 °C
AC input voltage	110 - 240 V

Weight and Dimensions

Depth	258 mm
Width	202 mm
Height	173 mm
Weight	2500 g
