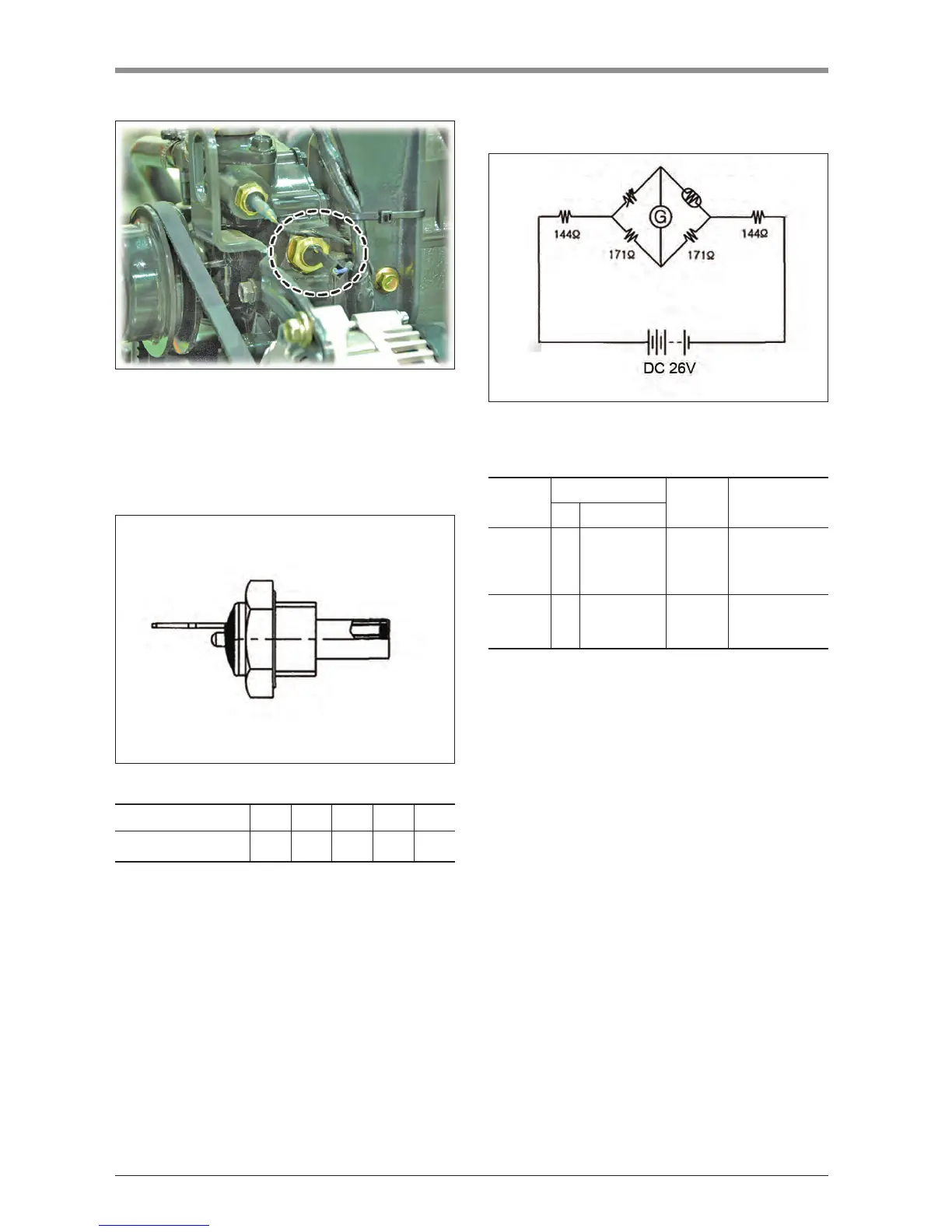

CHAPTER 7 ELECTRIC SYSTEM 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
5.2.16 COOLANT TEMPERATURE SENSOR (PREHEATING)
     
      
       
     

K20W739A
MEASURING CIRCUIT
▶
RESISTANCE BY COOLANT TEMPERATURE
▶
K20W738A
TEMPERATURE (
℃
) -30 -15 10 20 40
RESISTANCE
difference (Ω)
19.5 9.6 3.4 2.4 1.2
SENSOR TEST
▶
ITEM
CONNECTION
STATUS RESULT
+ ㅡ
-

1


-




DC

2




「」

 
galvano-
meer
F42W726A
