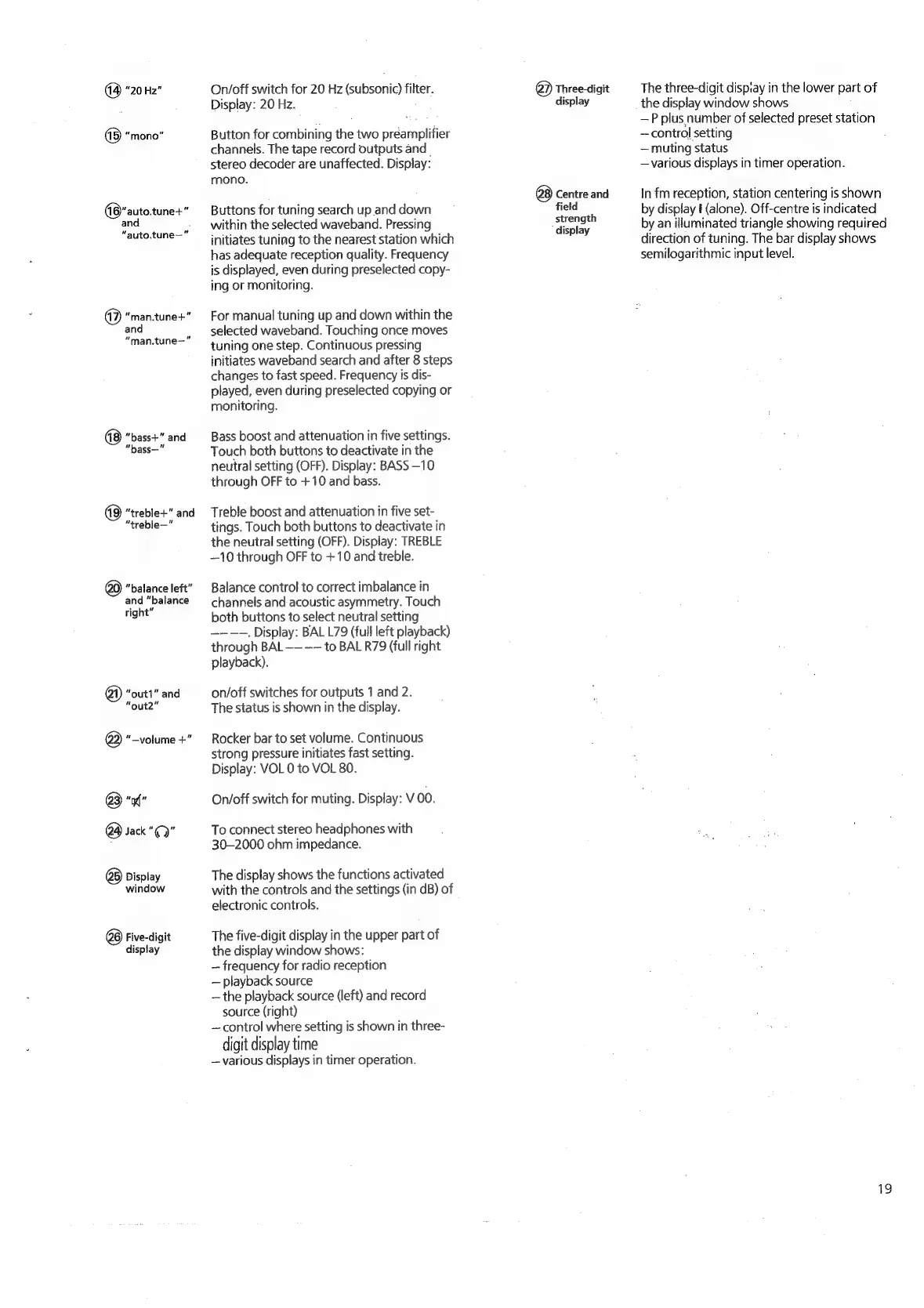

"20 Hz”
“mono”
(6) “auto.tune+”
and :
“auto.tune—”
“man.tune+”
and
“man.tune—"
48 “bass+” and
“bass—"
9 “treble+” and
“treble—”
@0) “balance left”
and “balance
right”
Ql) “out” and
“out2"
Q2) “—volume +”
Bu"
24) Jack "()”
@5) Display
window
26) Five-digit
display
On/off switch for 20 Hz (subsonic) filter. @) Three-digit
Display: 20 Hz. display
Button for combining the two preamplifier
channels. The tape record outputs and _
stereo decoder are unaffected. Display:
mono.
28) Centre and
Buttons for tuning search up anddown field
within the selected waveband. Pressing ae
initiates tuning to the nearest station which
has adequate reception quality. Frequency
is displayed, even during preselected copy-
ing or monitoring.
For manual tuning up and down within the
selected waveband. Touching once moves
tuning one step. Continuous pressing
initiates waveband search and after 8 steps
changes to fast speed. Frequency is dis-
played, even during preselected copying or
monitoring.
Bass boost and attenuation in five settings.
Touch both buttons to deactivate in the
neutral setting (OFF). Display: BASS —10
through OFF to +10 and bass.
Treble boost and attenuation in five set-
tings. Touch both buttons to deactivate in
the neutral setting (OFF). Display: TREBLE
—10 through OFF to +10 and treble.
Balance control to correct imbalance in
channels and-acoustic asymmetry. Touch
both buttons to select neutral setting
—~——-, Display: BAL L79 (full left playback)
through BAL —— —— to BAL R79 (full right
playback).
on/off switches for outputs 1 and 2.
The status is shown in the display.
Rocker bar to set volume. Continuous
strong pressure initiates fast setting.
Display: VOL 0 to VOL 80.
On/off switch for muting. Display: V 00.
To connect stereo headphones with
30-2000 ohm impedance.
The display shows the functions activated
with the controls and the settings (in dB) of
electronic controls.
The five-digit display in the upper part of
the display window shows:
— frequency for radio reception
— playback source
— the playback source (left) and record
source (right)
— control where setting is shown in three-
digit display time
— various displays in timer operation.
The three-digit dispray in the lower part of
the display window shows
—P plus number of selected preset station
— contro] setting
— muting status
— various displays in timer operation.
In fm reception, station centering is shown
by display I (alone). Off-centre is indicated
by an illuminated triangle showing required
direction of tuning. The bar display shows
semilogarithmic input level.
