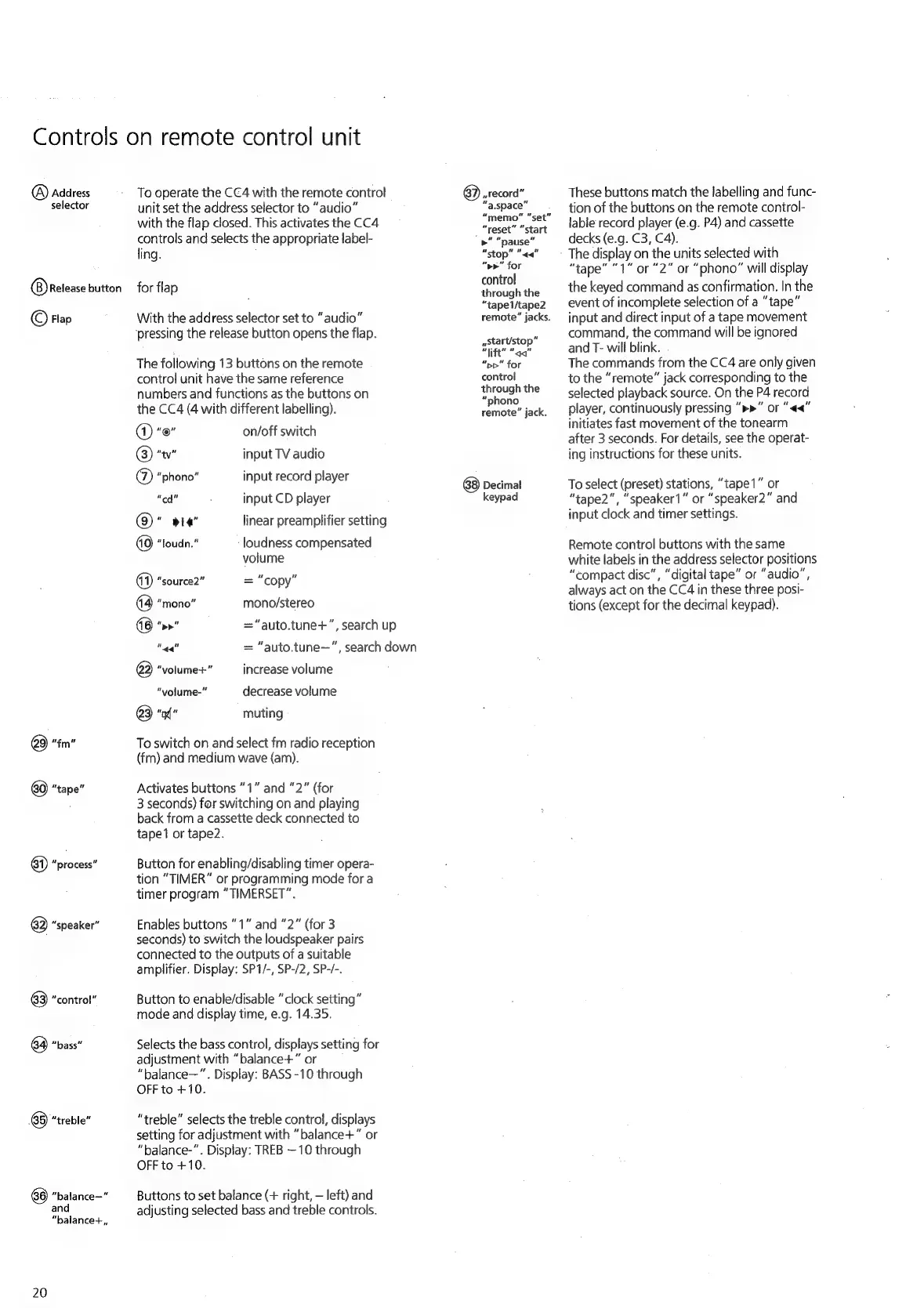

Controls on remote control unit
@ Address
selector
Release button
© Flap
@® “tm”
“tape”
61) “process”
62 “speaker”
63) “control”
G9 “bass”
“treble”
“balance~”
and
“balance+,,
20
To operate the CG4 with the remote control
unit set the address selector to “audio”
with the flap closed. This activates the CC4
67 arecord”
“a.space”
: “reset” “start
controls and selects the appropriate label- “>” “pause”
ling.
stop”
“aa”
“yy” for
control
for flap through the
: . “tape i/tape2
With the address selector set to “audio” remote” jacks.
pressing the release button opens the flap. anaes
ae “lift "aa"
The following 13 buttons on the remote “pp” for
control unit have the same reference control
numbers and functions as the buttons on orn the
the CC4 (4 with different labelling). Seer jack
@) “eo” on/off switch
"ey" input TV audio
“phono” input record player
@ P ; P pay 68 Decimal
"cd" input CD player keypad
()" ote"
linear preamplifier setting
“loudn." loudness compensated
volume
“source2” = “copy”
(14 “mono” mono/stereo
A “»»" =“auto.tune+”, search up
"aa" = “auto.tune—”, search down
@2)“volume+" increase volume
“volume-” decrease volume
@3 “nd”
To switch on and select fm radio reception
(fm) and medium wave (am).
muting
Activates buttons “1” and “2” (for
3 seconds) for switching on and playing
back from a cassette deck connected to
tapet or tape2.
Button for enabling/disabling timer opera-
tion “TIMER” or programming mode for a
timer program “TIMERSET”.
Enables buttons “1” and “2” (for 3
seconds) to switch the loudspeaker pairs
connected to the outputs of a suitable
amplifier. Display: SP1/-, SP-/2, SP-/-.
Button to enable/disable “clock setting”
mode and display time, e.g. 14.35.
Selects the bass control, displays setting for
adjustment with “balance+” or
“balance—”. Display: BASS -10 through
OFF to +10.
“treble” selects the treble control, displays
setting for adjustment with “balance+” or
“balance-”. Display: TREB ~ 10 through
OFF to + 10.
Buttons to set balance (+ right, — left) and
adjusting selected bass and treble controls.
“memo” “set”
These buttons match the labelling and func-
tion of the buttons on the remote control-
lable record player (e.g. P4) and cassette
decks (e.g. C3, C4).
The display on the units selected with
“tape” “1” or “2” or “phono” will display
the keyed command as confirmation. In the
event of incomplete selection of a “tape”
input and direct input of a tape movement
command, the command will be ignored
and T- will blink.
The commands from the CC4 are only given
to the “remote” jack corresponding to the
selected playback source. On the P4 record
player, continuously pressing “»»” or “<<”
initiates fast movement of the tonearm
after 3 seconds. For details, see the operat-
ing instructions for these units.
To select (preset) stations, “tape1” or
“tape2", “speaker1” or “speaker2” and
input clock and timer settings.
Remote control buttons with the same
white labels in the address selector positions
“compact disc”, “digital tape” or “audio”,
always act on the CC4 in these three posi-
tions (except for the decimal keypad).
