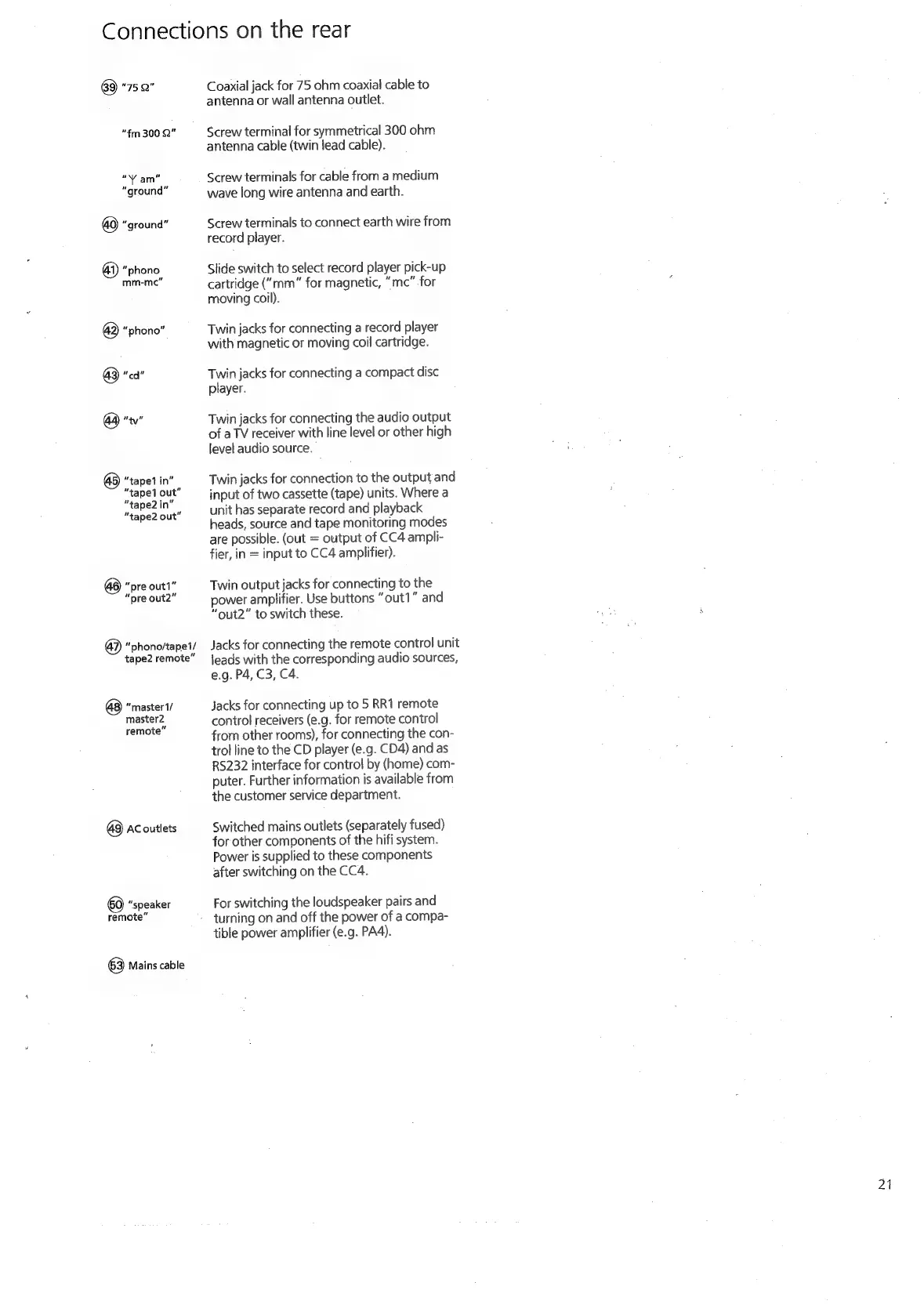

Braun CC4 - Connections on the Rear

Connections on the rear
"75 Q"
“fm 300 Q”
“Yam”
“ground”
40) “ground”
41) “phono
mm-mc”
42) “phono”
@ "ca"
Yty"
45) “tapel in”
“tape out”
"tape2 in”
“tape2 out”
46) "pre out1”
“pre out2”
“ohono/tapet/
tape2 remote”
a9) “master 1/
master2
remote”
49) AC outlets
6D “speaker
remote”
63 Mains cable
Coaxial jack for 75 ohm coaxial cable to
antenna or wall antenna outlet.
Screw terminal for symmetrical 300 ohm
antenna cable (twin lead cable).
Screw terminals for cable from a medium
wave long wire antenna and earth.
Screw terminals to connect earth wire from
record player.
Slide switch to select record player pick-up
cartridge (“mm for magnetic, “mc” for
moving coil).
Twin jacks for connecting a record player
with magnetic or moving coil cartridge.
Twin jacks for connecting a compact disc
player.
Twin jacks for connecting the audio output
of a TV receiver with line level or other high
level audio source.
Twin jacks for connection to the output and
input of two cassette (tape) units. Where a
unit has separate record and playback
heads, source and tape monitoring modes
are possible. (out = output of CC4 ampli-
fier, in = input to CC4 amplifier).
Twin output jacks for connecting to the
power amplifier. Use buttons “out1” and
“out2” to switch these.
Jacks for connecting the remote control unit
leads
with
the
corresponding
audio
sources,
e.g. P4, C3, C4.
Jacks for connecting up to 5 RR1 remote
control receivers (e.g. for remote control
from
other
rooms),
for
connecting
the
con-
trol line to the CD player (e.g. CD4) and as
RS232 interface for control by (home) com-
puter. Further information is available from
the customer service department.
Switched mains outlets (separately fused)
for other components of the hifi system.
Power is supplied to these components
after switching on the CC4.
For switching the loudspeaker pairs and
turning on and off the power of a compa-
tible power amplifier (e.g. PA4).
