Page 10
90°
Lift Installation
Lift towers and
vertical arms must
be parallel (aligned)
with vertical sides
of door jamb and
perpendicular (90˚)
to the vehicle oor.

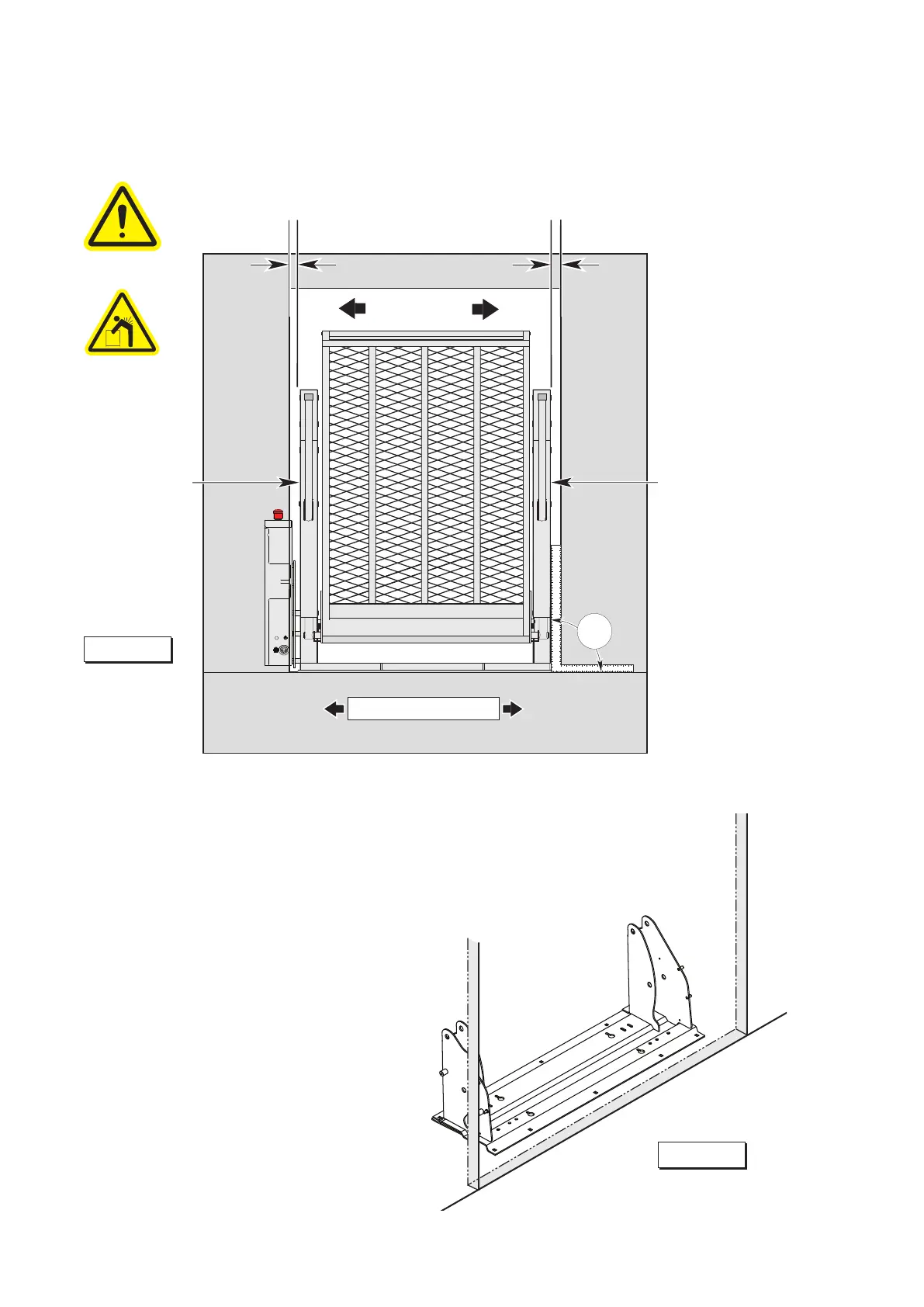

Position Lift
Figure B
Vertical Arm
must clear
door opening.
Align
(Parallel)
Vertical Arm
must clear
door opening.
Center lift in
door opening
.
Align
(Parallel)
Side to Side Alignment
Clearance:
Center the lift in the opening. See Fig-
ure B. Position the base plate parallel to
(aligned with) the door opening as shown
in Figure C. Close the vehicle door(s).
Position lift as close to the door opening
as possible while maintaining a minimum
clearance of 12 mm between the lift and
the door or wall. See Figure D.
Lift-Tite
®
Latches: When checking ve-
hicle wall clearance - allow the lift to drift
fully into the Lift-Tite
®
latches to ensure
clearance (should drift occur). See Figure
F. Using the hand pump handle, stroke the
hand pump to stow the lift fully. Then open
the valve slightly (1/2 turn only), and allow
the Lift-Tite
®
latches to engage the vertical
arm pins fully. Close pump valve.
Figure C
Align Base Plate with Door Opening
DOOR OPENING
