Page 16
Lift Installation

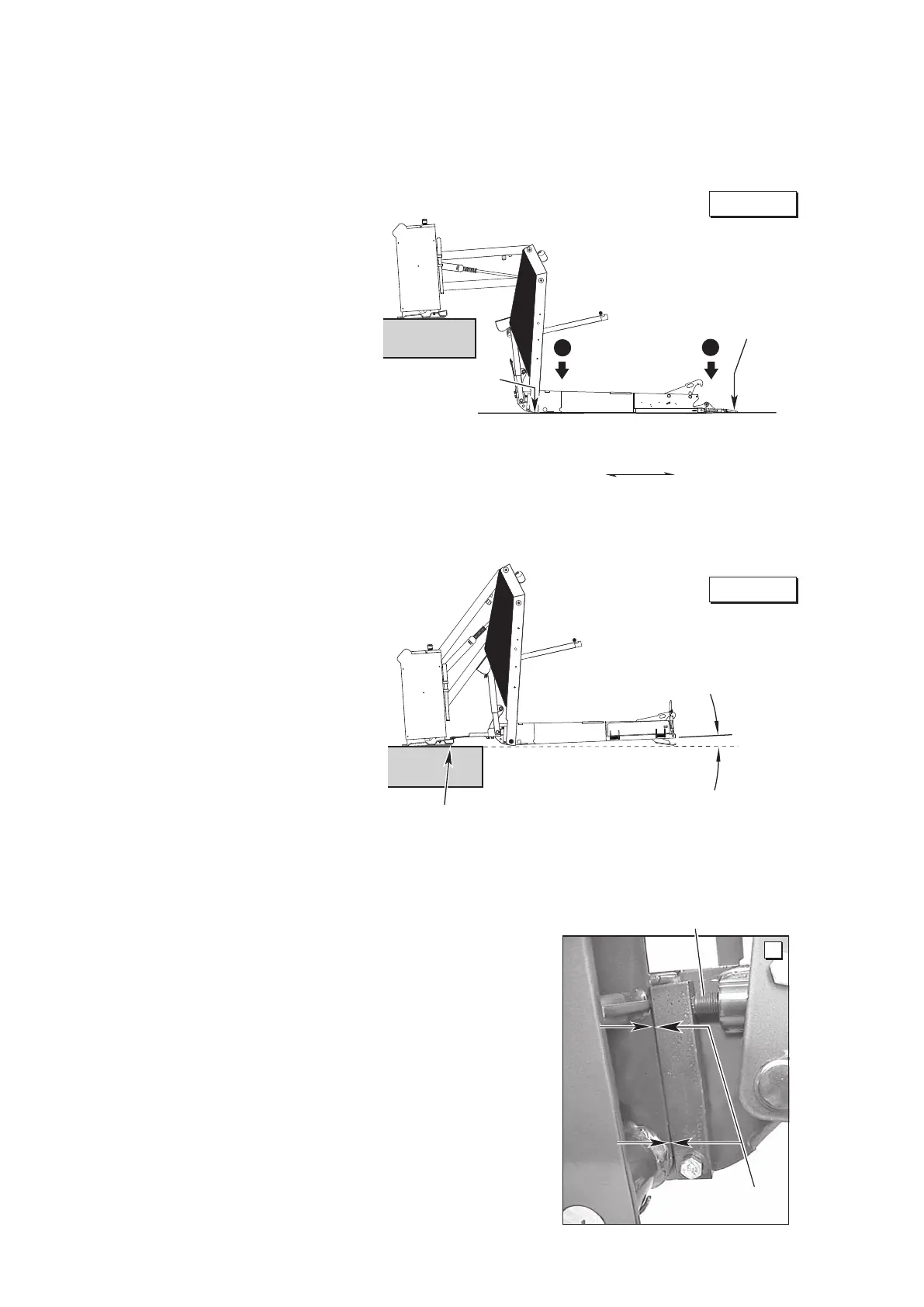

Platform Angle Adjustment
Figure B
Lowering Sequence Requirements
Vehicle
Floor
Level
Wedges (option)
Figure C
(Heel) Inboard
Outboard (Toe)
Rear
Front
Outboard
(passenger's side)
Inboard
(driver's side)
“Arrows/Direction
(of vehicle)
(of vehicle)
Heel
Ground Level
Barrier must
unfold fully.
Platform heel
must lower fully.
Barrier
2
1
Adjustment Procedure:
Platform angle adjustment Allen
screws are provided on each
side of the platform (see photo
at right).
Turn adjustment screws clock-
wise to raise the outboard end
of the platform. Turn adjust-
ment screws counterclockwise
to lower the outboard end of
the platform.
Both adjustment screws must
be adjusted equally.
Platform Stop Blocks: When
adjusting platform angle, en-
sure both stop blocks are mak-
ing full contact with the vertical
arms (see photo at right).
Floor Level Adjustment:
Following platform angle adjust-
ment, set oor level positioning
as detailed in Tower Microswitch
Adjustment.
Check platform angle again
after performing Tower Micro-
switch Adjustment procedures.
1. The outboard end (toe) of
the platform must contact
the ground rst to ensure the
spring-loaded outer barrier
unfolds fully. See Figure B.
2. The inboard end (heel) of
the platform must lower fully
(vertical arms must contact
ground when fully lowered).
See Figure B.
The angle of the platform at
ground level directly affects
the angle of the platform when
positioned at oor level.
Raise the platform to oor level.
Note the angle of the platform.
The platform at oor level
should have a slight upward
angle as shown in Figure C.
Adjust platform angle as de-
tailed below.
Adjustment Screw
Stop blocks must
make full contact.
A
Stop
Block
Vertical
Arm
To Next Page
