Page 13
Aux.
TO
LIFT
Bat.
Pos.
Neg.
Aux.
Bat.
Bat.
Pos.
Neg.
Aux.
TO
LIFT

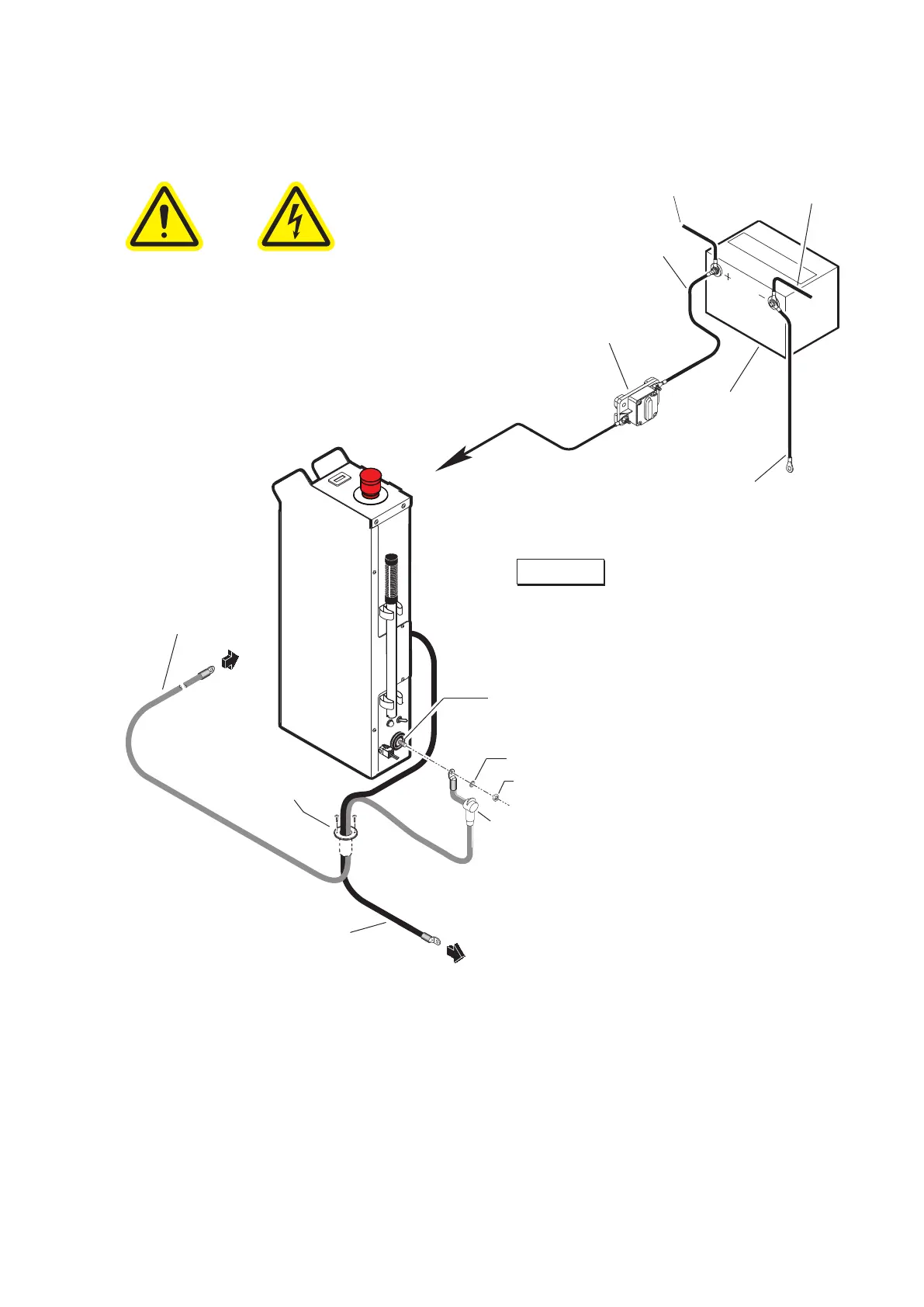

Lift Installation
Attach Power and Ground Cables
Figure I
Circuit
Protection
Device
Lead Cable
OEM (+) Cable
Ground Cable
to Chassis
4 Gauge
(21.1mm2)
(not supplied)
Vehicle
Battery
OEM (-) Cable
Floor
Grommet
Rubber
Boot
Star Washer
3/8” Hex Nut
Power
Feed Stud
1. Drill 28.5mm diameter grommet access hole.
Check under the vehicle for obstructions.
2. Insert grommet. Secure grommet with two
self-tap screws.
3. Route ground and power cables through
grommet. Route cables clear of exhaust,
other hot areas and moving parts.
4. Connect ground and power cables.
Vehicle Battery Positive Cable:
Install in-line circuit protection device as
shown in Figure I. Attach power cable and
lead cable as shown.
Battery Cable to
Circuit Protection
Device
Ground Cable
to Chassis
36513
To Next Page
