Page 14
DOOR OPENING
Lift Base Plate
NEG.
POS.
Battery
Chassis
Lift
Pump
Module

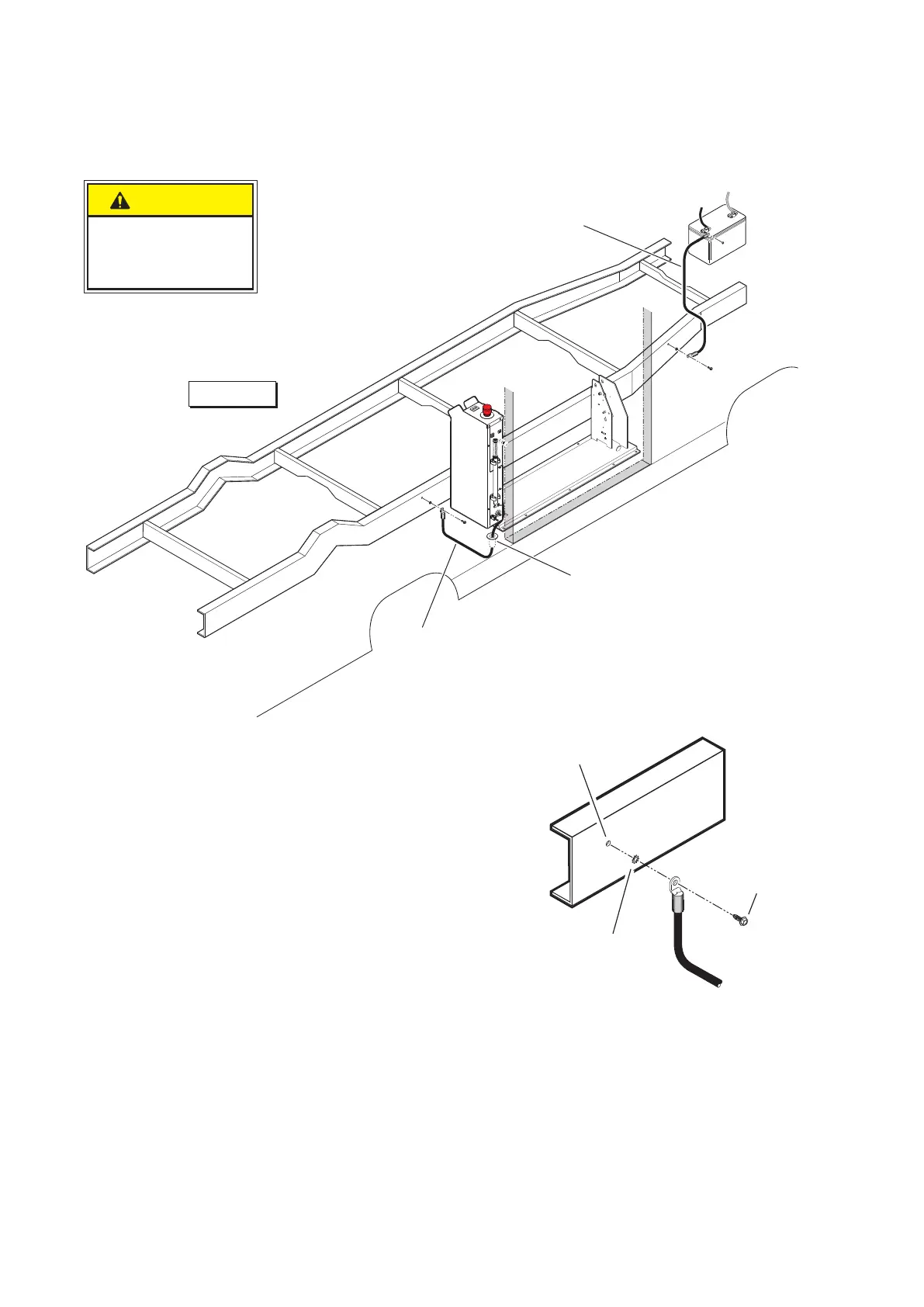

Figure J
Battery to Frame
Ground Cable
4 Gauge (21.1mm2)
(not supplied)
Pump Mounted
Ground Cable
4 Gauge
(21.1mm2)
Grommet
Pump
Module
Chassis
Chassis
5/16”
External Tooth
Star Washer
5/16-18 x 3/4”
Thread Cutting
Screw
9/32” Diameter
Pilot Hole
Position and secure
ground cable clear
of lift operation.
CAUTION
CAUTION
CAUTION
CAUTION
Lift Installation
Attach Power and Ground Cables
Pump Ground Cable:
Route the pump mounted cable through the
oor grommet and connect to a vehicle fram-
ing member as shown. See Figure J.
Vehicle Battery Ground Cable:
A 4 gauge (21.1mm2) ground cable must
be connected from vehicle battery negative
post to the same vehicle framing member
the pump ground cable is attached to. See
Figure J.
Ground Cable Corrosion: When mount-
ing ground cables, remove undercoating,
dirt, rust, etc. from framing member around
mounting holes (minimum 16mm diameter
area). Apply protective coating to mounting
holes to prevent corrosion. Failure to do so
will void warranty of certain electrical compo-
nents.
